Keyless Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the figures.

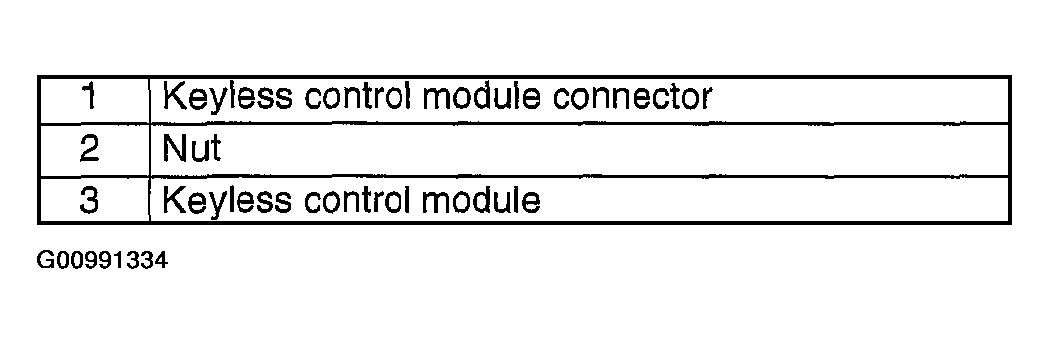

    Fig 1: Removing/Installing Keyless Control Module (Legend)
    G00991334Courtesy of MAZDA MOTORS CORP.

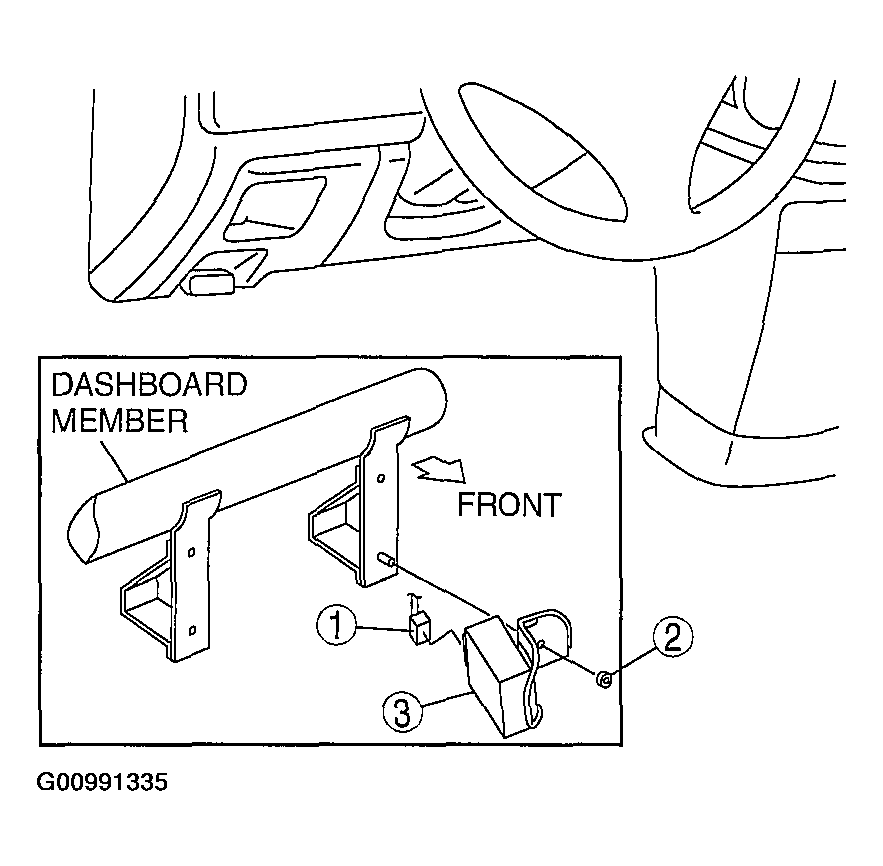

    Fig 2: Removing/Installing Keyless Control Module
    G00991335Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
