Liftgate Lock Cylinder Switch Inspection

  1. Disconnect the liftgate lock cylinder switch connector.
  2. Inspect for continuity between the liftgate lock cylinder switch terminals using an ohmmeter.
    • If not as specified, replace the liftgate lock cylinder switch.

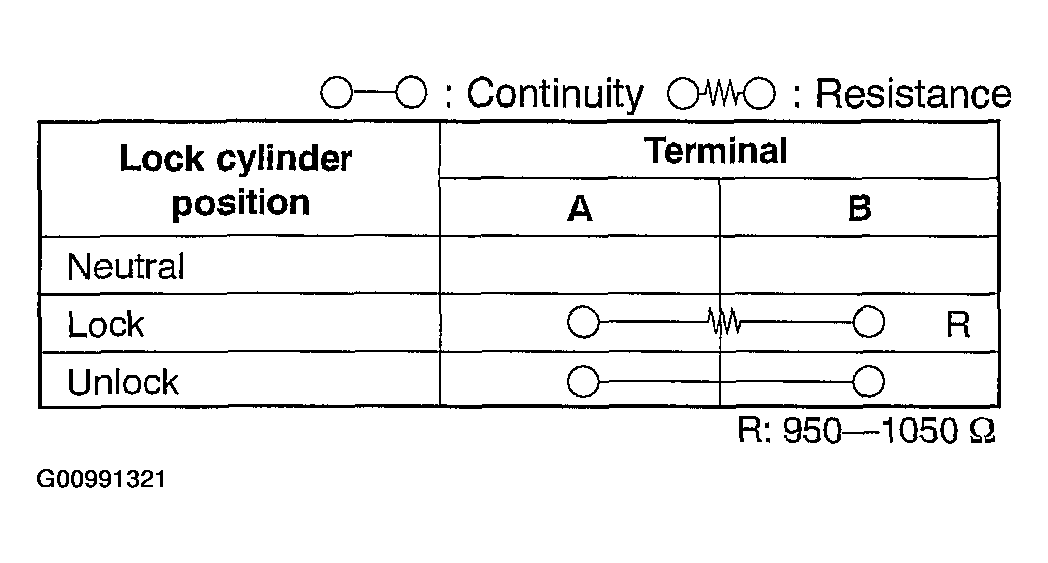

    Fig 1: Liftgate Lock Cylinder Switch Continuity Specifications
    G00991321Courtesy of MAZDA MOTORS CORP.

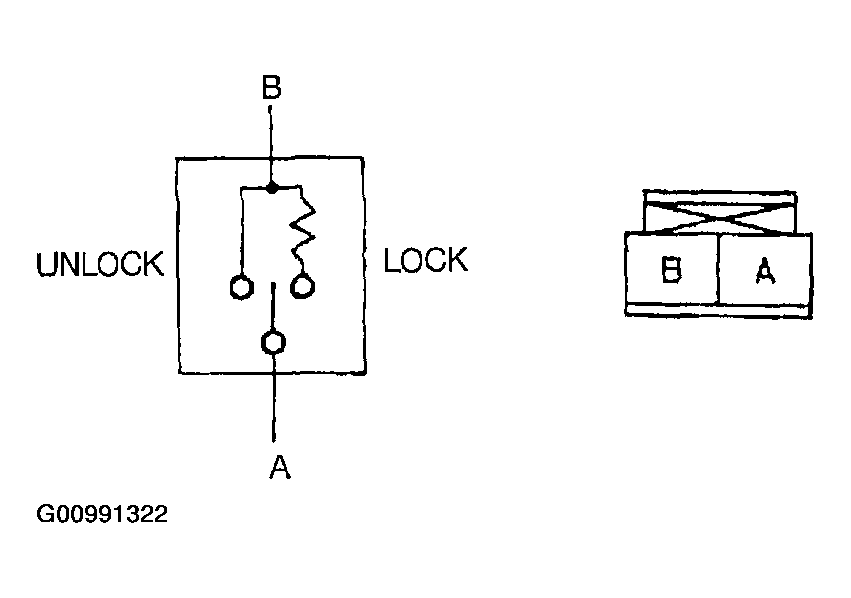

    Fig 2: Identifying Liftgate Lock Cylinder Switch Terminals
    G00991322Courtesy of MAZDA MOTORS CORP.
