Liftgate Lock Cylinder Switch Removal/Installation

  1. Disconnect the liftgate lock cylinder switch connector.
  2. Disconnect the rods.
  3. Remove the nuts, and remove the liftgate lock cylinder.

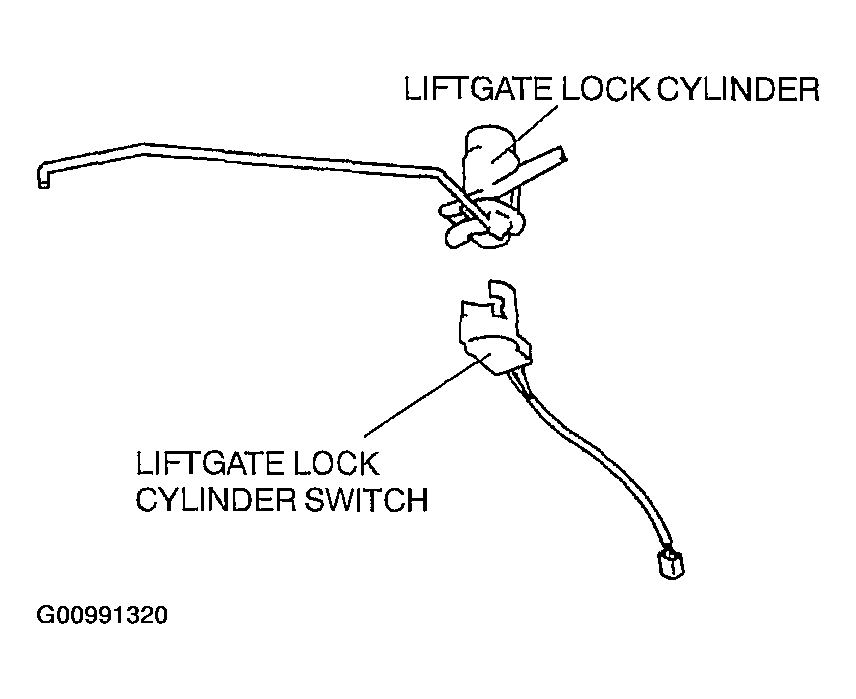

    Fig 1: Removing/Installing Liftgate Lock Cylinder Switch
    G00991320Courtesy of MAZDA MOTORS CORP.
  4. Remove the liftgate lock cylinder switch.
  5. Install in the reverse order of removal.
