Liftgate Lock Striker Removal/Installation

  1. Remove the mat set end plate. (See MAT SET END PLATE REMOVAL/INSTALLATION .)
  2. Remove the bolts.
  3. Remove the liftgate striker.

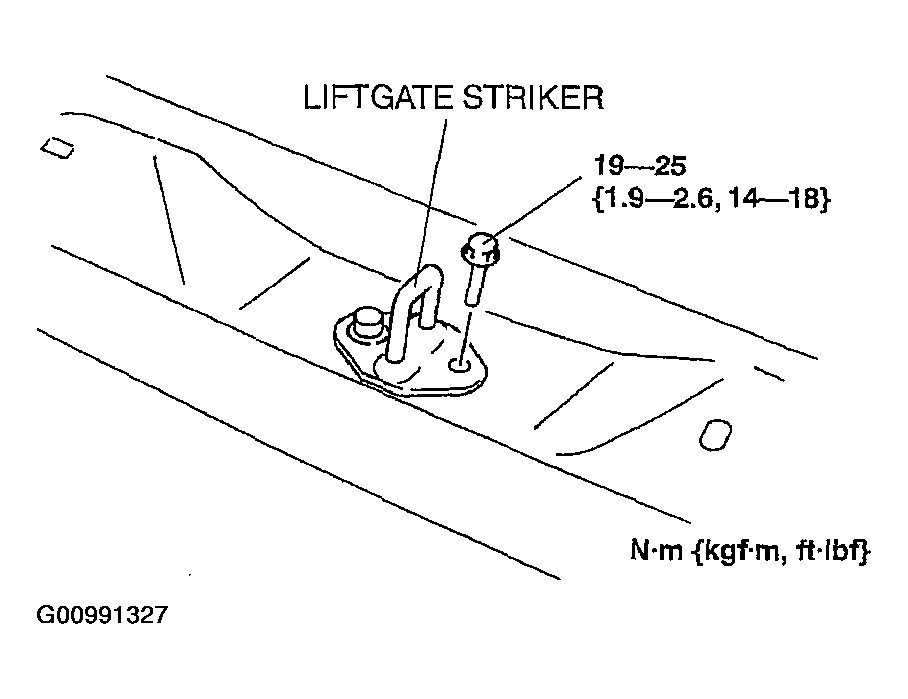

    Fig 1: Removing/Installing Liftgate Lock Striker
    G00991327Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
