Transmitter Battery Replacement

Insert a small screwdriver into the slot and gently pry open the transmitter.

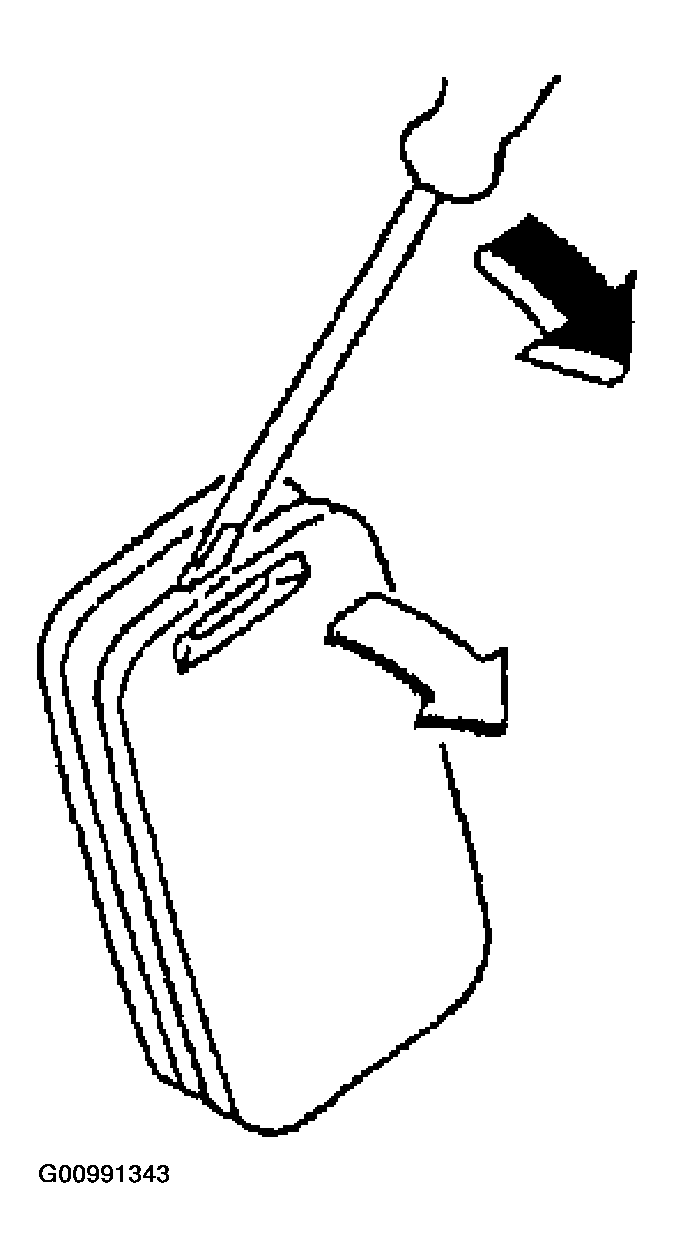

Fig 1: Prying Off Transmitter Cover
Courtesy of MAZDA MOTORS CORP.
Remove the battery out.

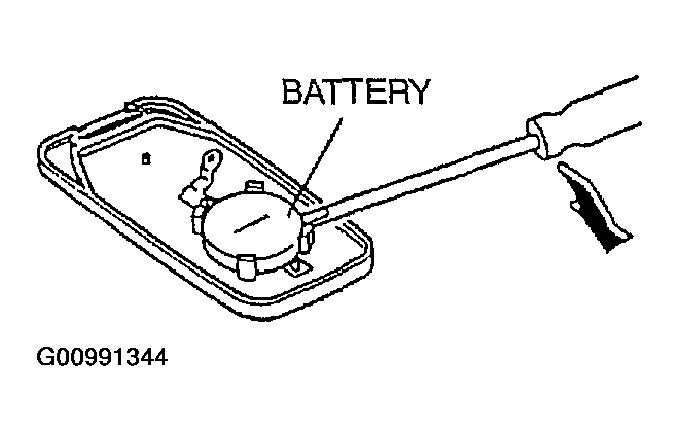

Fig 2: Removing Transmitter Battery
Courtesy of MAZDA MOTORS CORP.
Install the new batteries with the negative side facing up.
Battery Specification

Lithium CR 2025 x 1
NOTE:
- The batteries will last about 2 years when used 10 times a day.

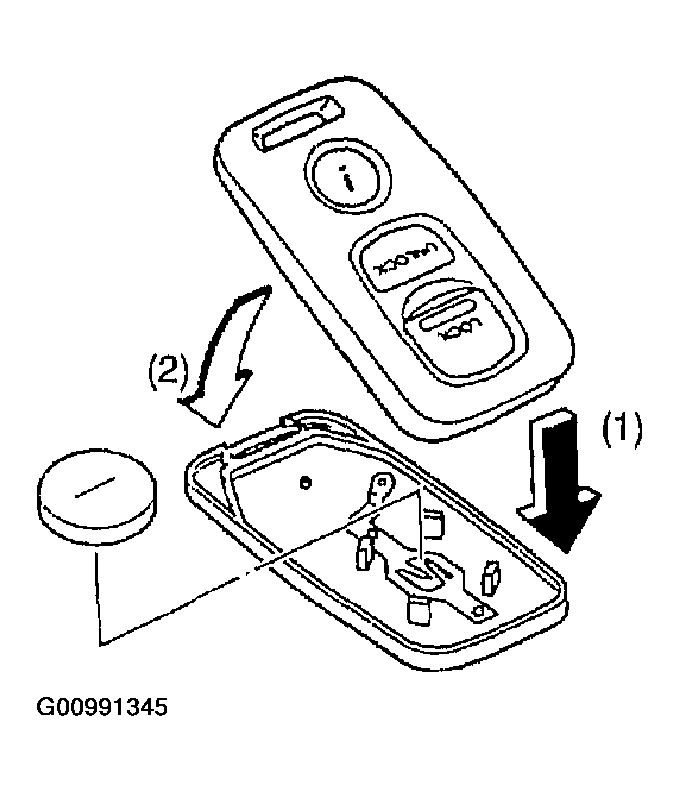

Fig 3: Installing Transmitter Batteries
Courtesy of MAZDA MOTORS CORP.
Align the front and back covers.
Snap the transmitter shut. (2)
