Ignition Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Remove in the order indicated in the figures.

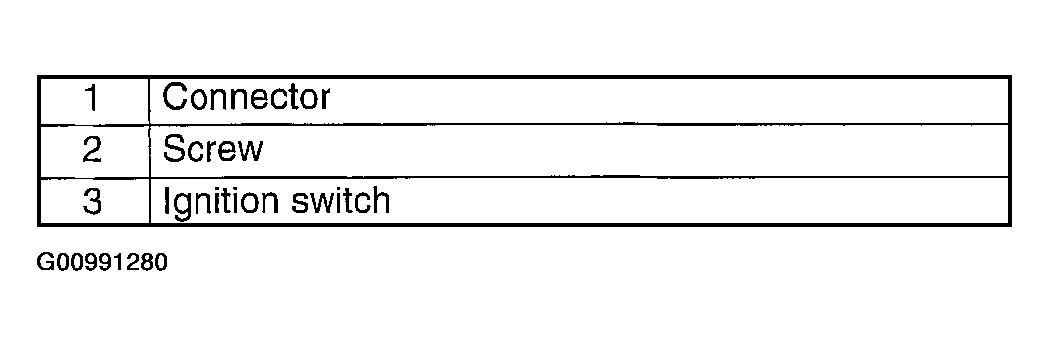

    Fig 1: Removing/Installing Ignition Switch (Legend)
    G00991280Courtesy of MAZDA MOTORS CORP.

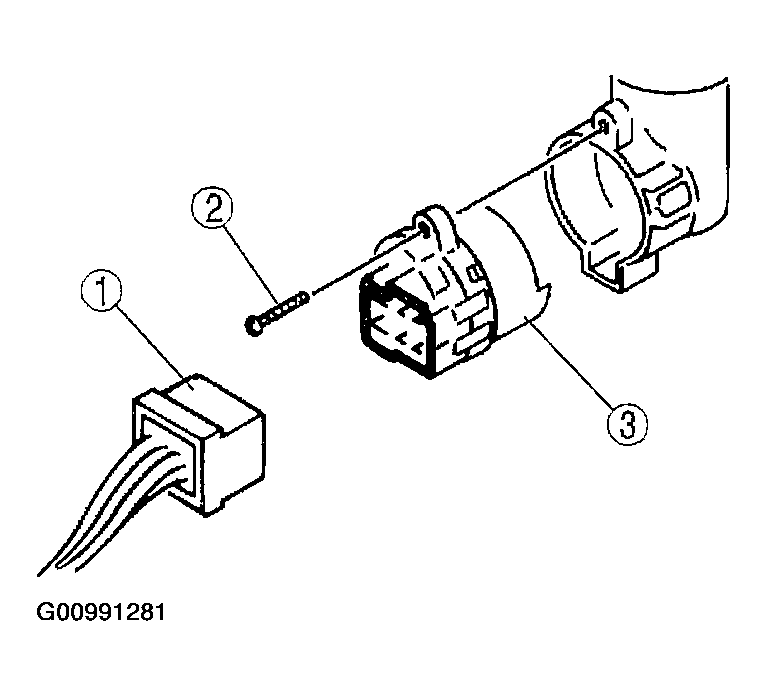

    Fig 2: Removing/Installing Ignition Switch
    G00991281Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
