Key Reminder Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Disconnect the key reminder switch connector.
  4. Remove the key reminder switch

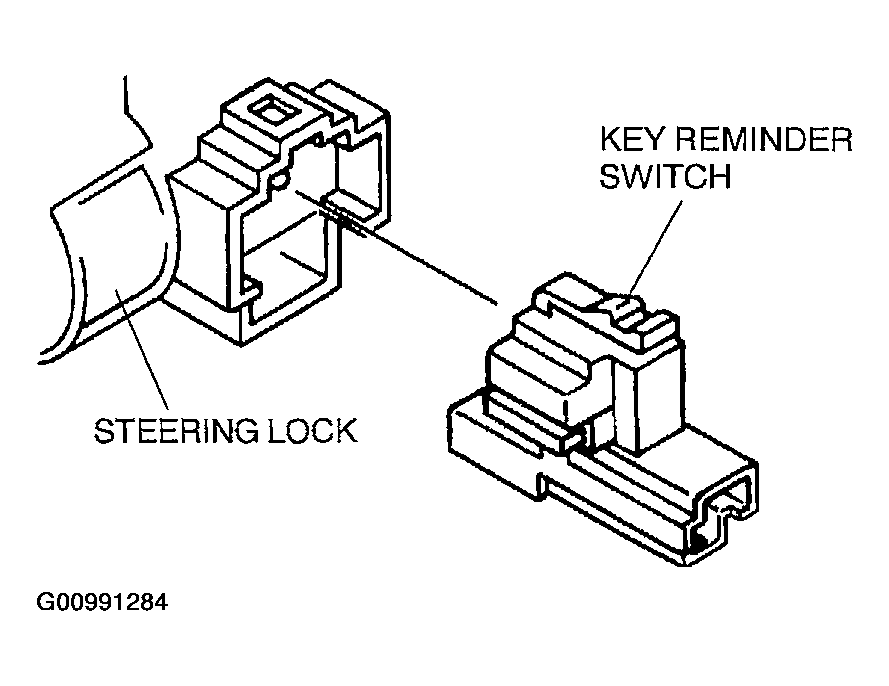

    Fig 1: Removing/Installing Key Reminder Switch
    G00991284Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
