Main Fuse Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the main fuse block cover.
  3. Remove in the order indicated in the figures.

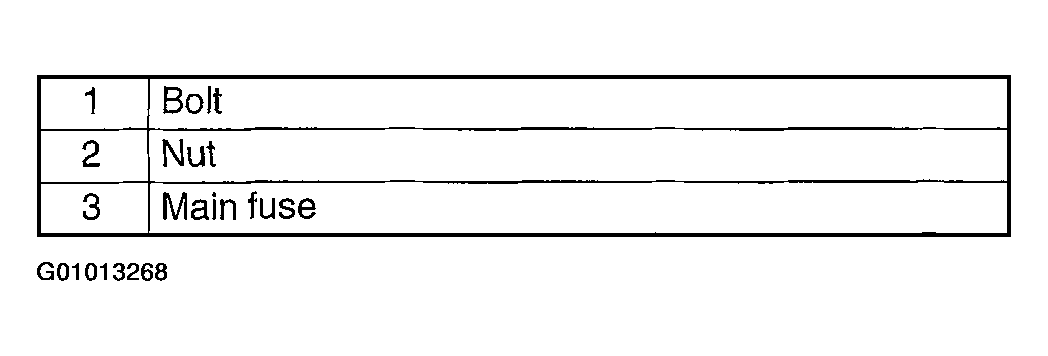

    Fig 1: Removing/Installing Main Fuse (Legend)
    G01013268Courtesy of MAZDA MOTORS CORP.

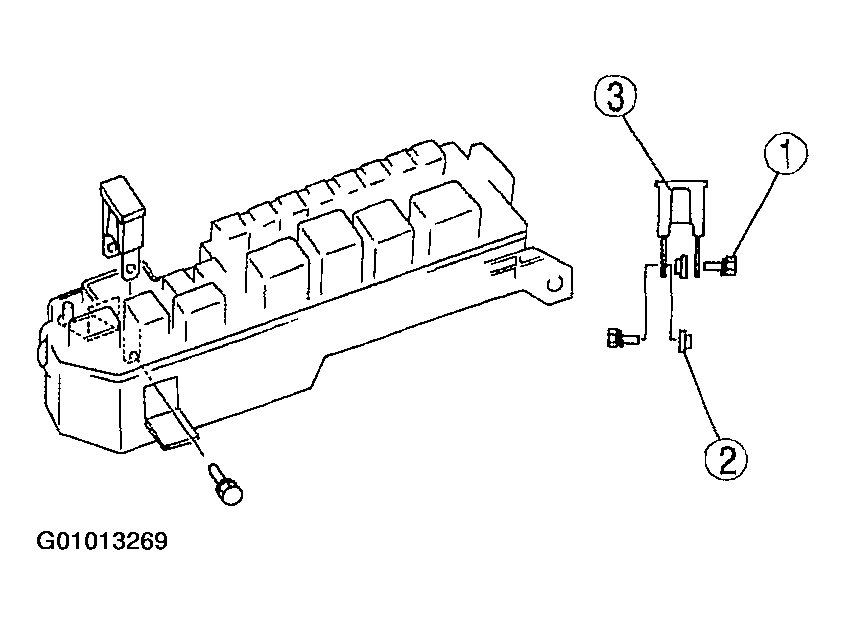

    Fig 2: Removing/Installing Main Fuse
    G01013269Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order or removal.
