Long Slider And Adapter Removal/Installation

  1. Remove the second-row seat. (See SECOND-ROW SEAT REMOVAL .) (See SECOND-ROW SEAT INSTALLATION .)
  2. Remove the front floor covering. (See FRONT FLOOR COVERING REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure.

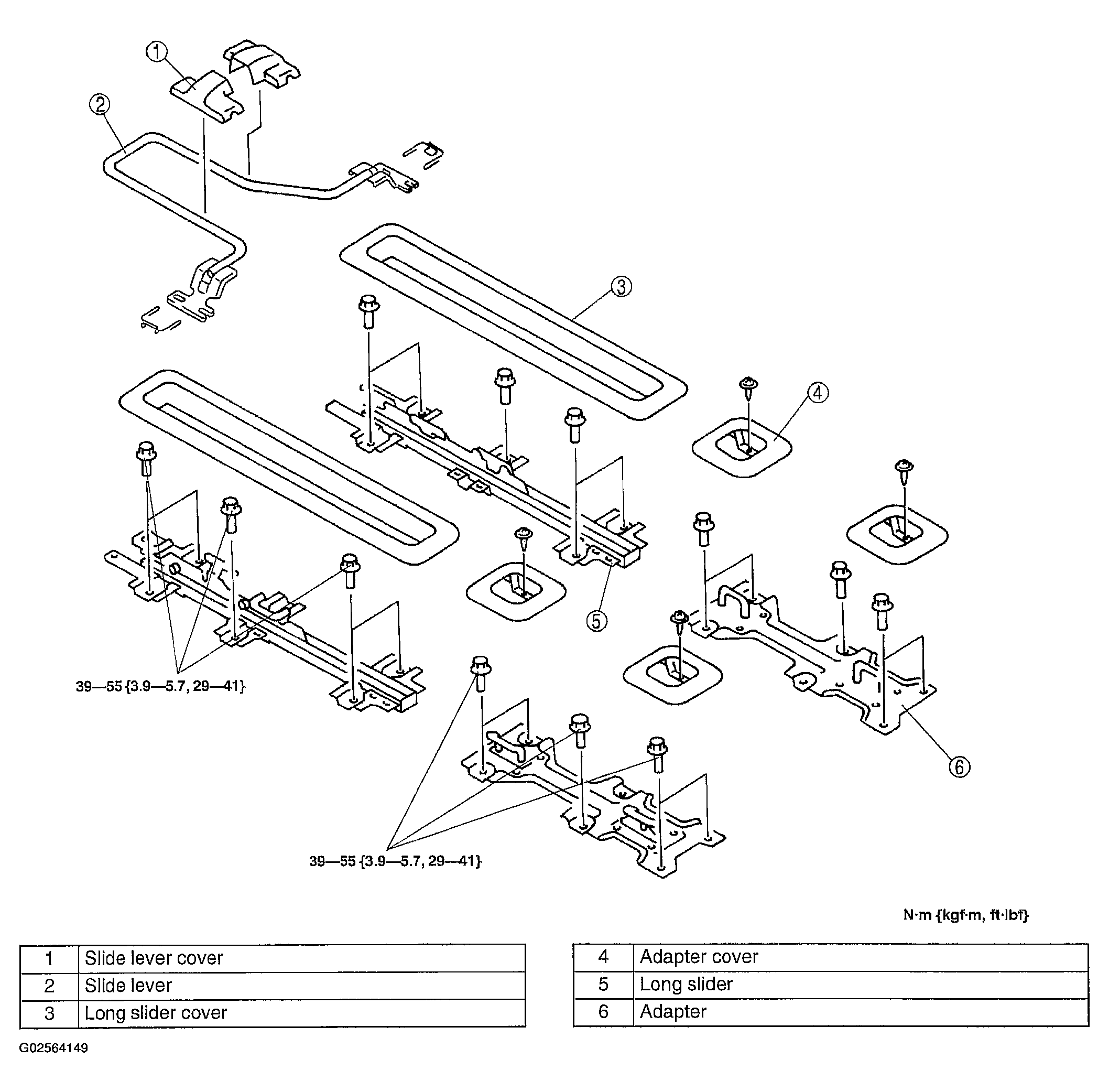

    Fig 1: Removing/Installing Long Slider & Adapter
    G02564149Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
