Front Door Glass And Guide Removal/Installation

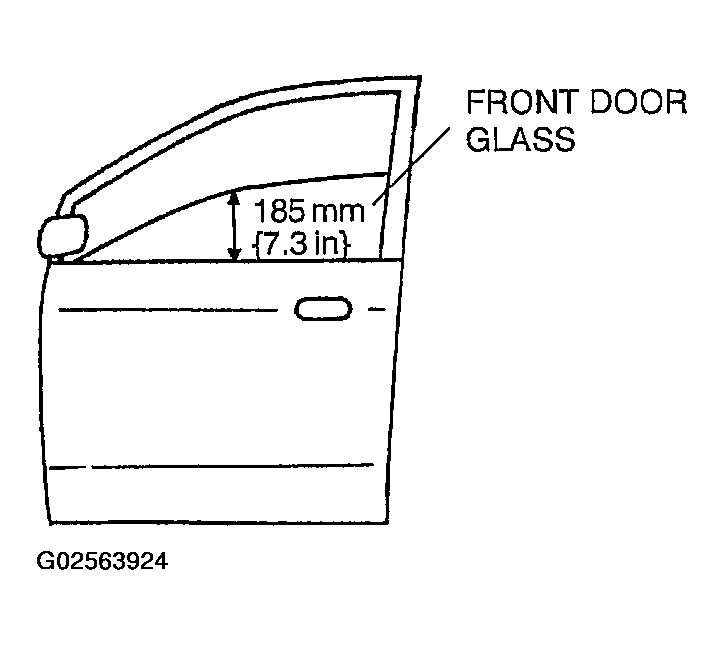

- Lower or raise the front door glass so that the distance from the top of the front door glass at the rear end to the upper part of the front beltline molding is 185 mm {7.3 in} .
- Disconnect the negative battery cable.
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

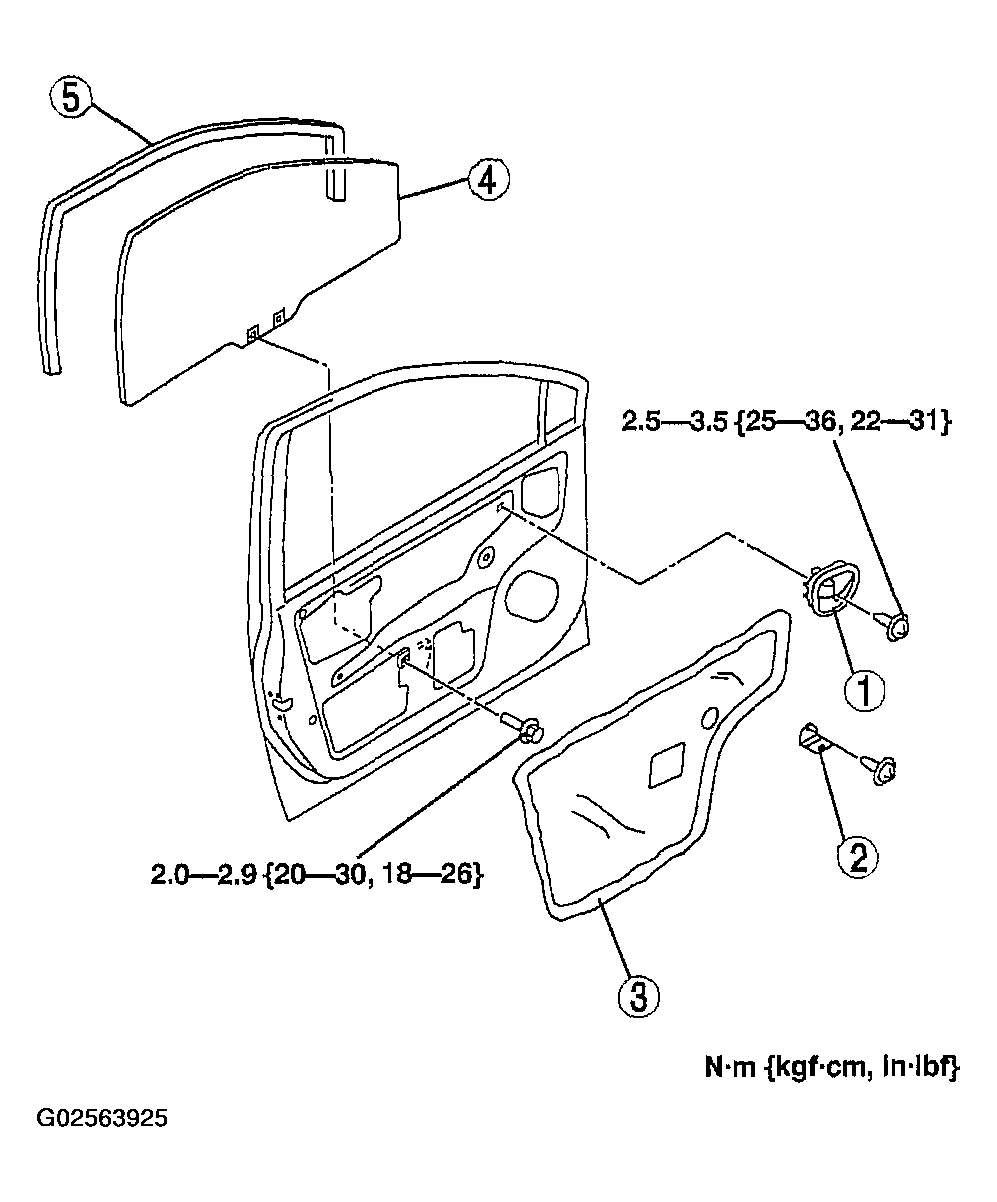

- Remove in the order indicated in the table.REMOVING/INSTALLING FRONT DOOR GLASS & GUIDE
Component/Step No. Component Description 1 Inner Handle 2 Front Door Trim Bracket 3 Door Screen 4 Front Door Glass (See FRONT DOOR GLASS DISASSEMBLY NOTE ) 5 Glass Run Channel - Install in the reverse order of removal.
