Power Outside Mirror Inspection

Disconnect the power outside mirror connector. (See POWER OUTSIDE MIRROR REMOVAL/INSTALLATION .)
Apply battery positive voltage to the power outside mirror and inspect the operation of the power outside mirror.
- If not as specified, replace the power outside mirror.

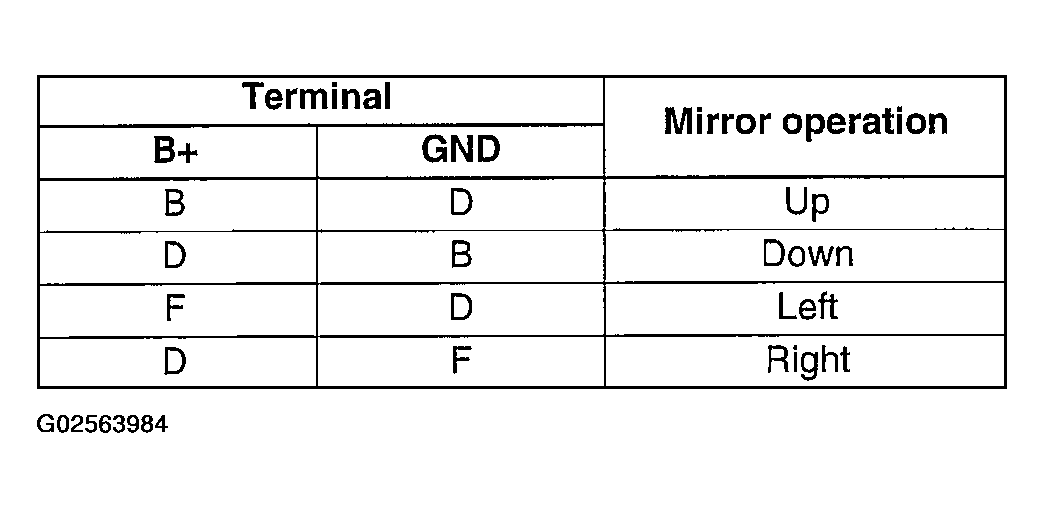

Fig 1: Power Outside Mirror Operation
Courtesy of MAZDA MOTORS CORP.

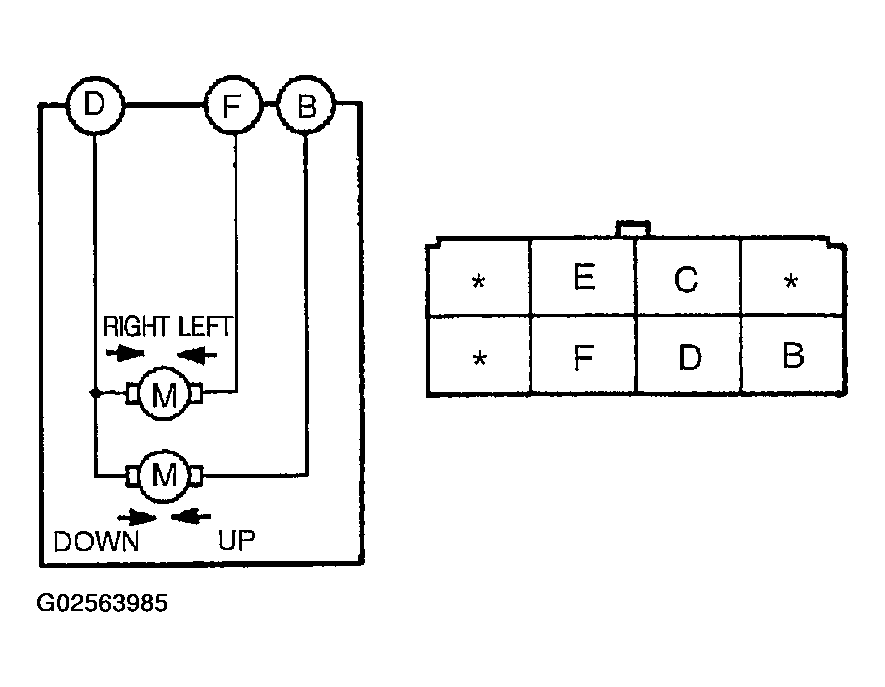

Fig 2: Identifying Power Outside Mirror Circuit, Terminals & Connector View
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity between the power outside mirror terminals.
- If not as specified, replace the power outside mirror.

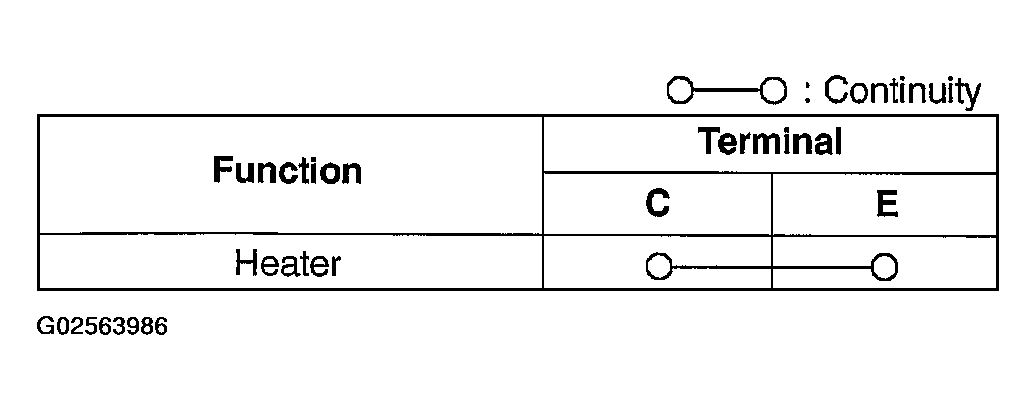

Fig 3: Power Outside Mirror Terminals Continuity Specifications
Courtesy of MAZDA MOTORS CORP.

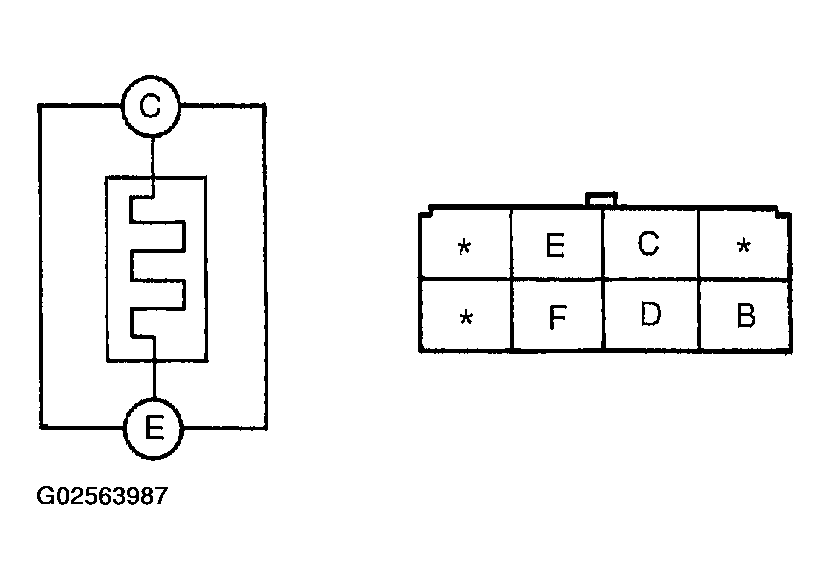

Fig 4: Identifying Power Outside Mirror Connector Circuit, Terminals & Connector View
Courtesy of MAZDA MOTORS CORP.
