Power Outside Mirror Switch Inspection

  1. Remove the power outside mirror switch. (See POWER OUTSIDE MIRROR SWITCH REMOVAL/INSTALLATION .)
  2. Inspect for continuity between the power outside mirror switch terminals using an ohmmeter.
    • If not as specified, replace the power outside mirror switch.

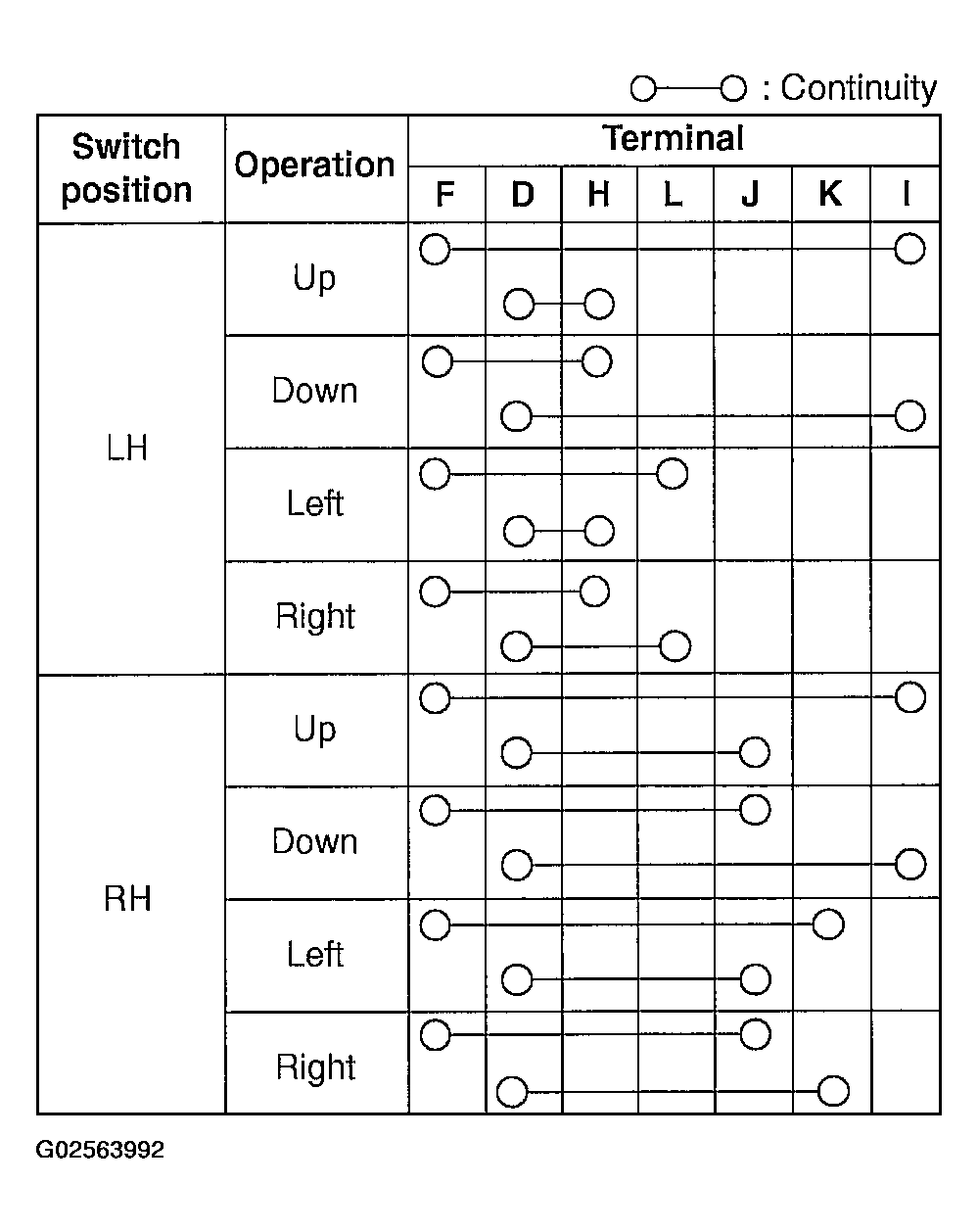

    Fig 1: Power Outside Mirror Switch Terminals Continuity Specifications
    G02563992Courtesy of MAZDA MOTORS CORP.

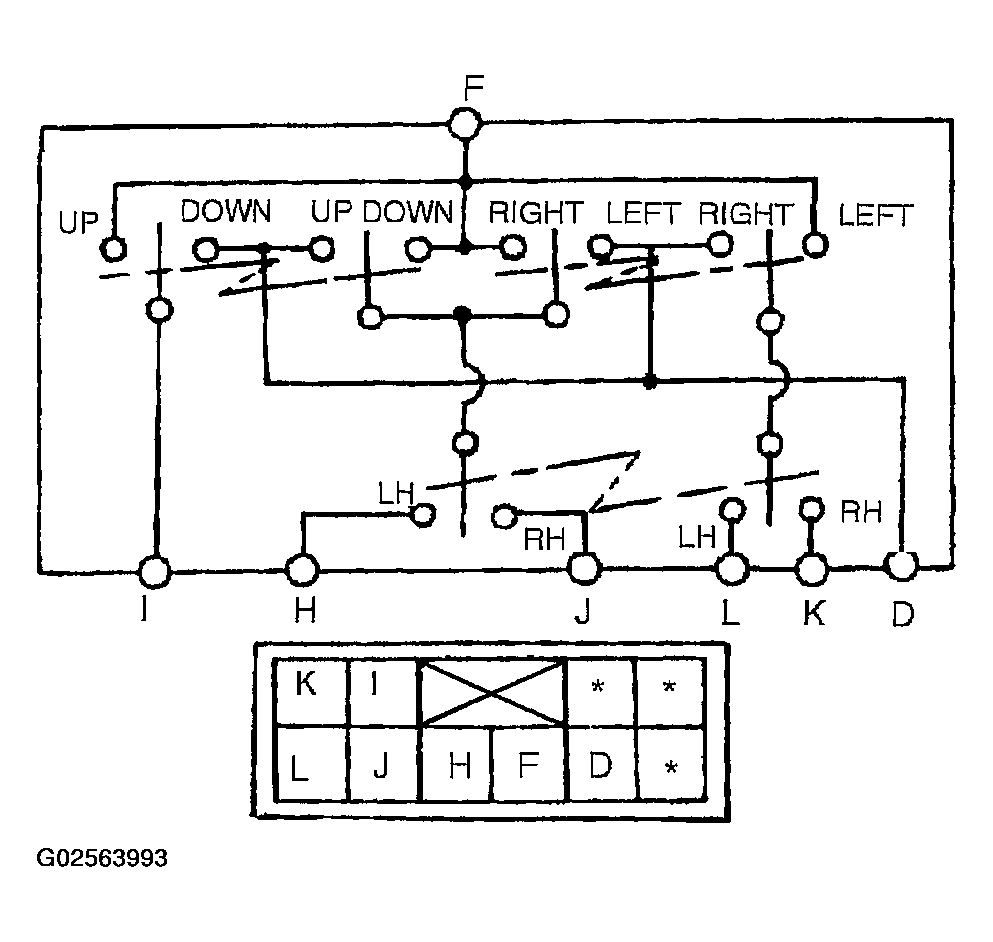

    Fig 2: Identifying Power Outside Mirror Switch Circuits, Terminals & Connector View
    G02563993Courtesy of MAZDA MOTORS CORP.
