Power Window Main Switch Inspection

Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
When inspecting the passenger's side and the rear, verify that the power-cut switch is at UNLOCK.
Inspect for continuity between the power window main switch terminals using an ohmmeter.
- If not as specified, replace the power window main switch.

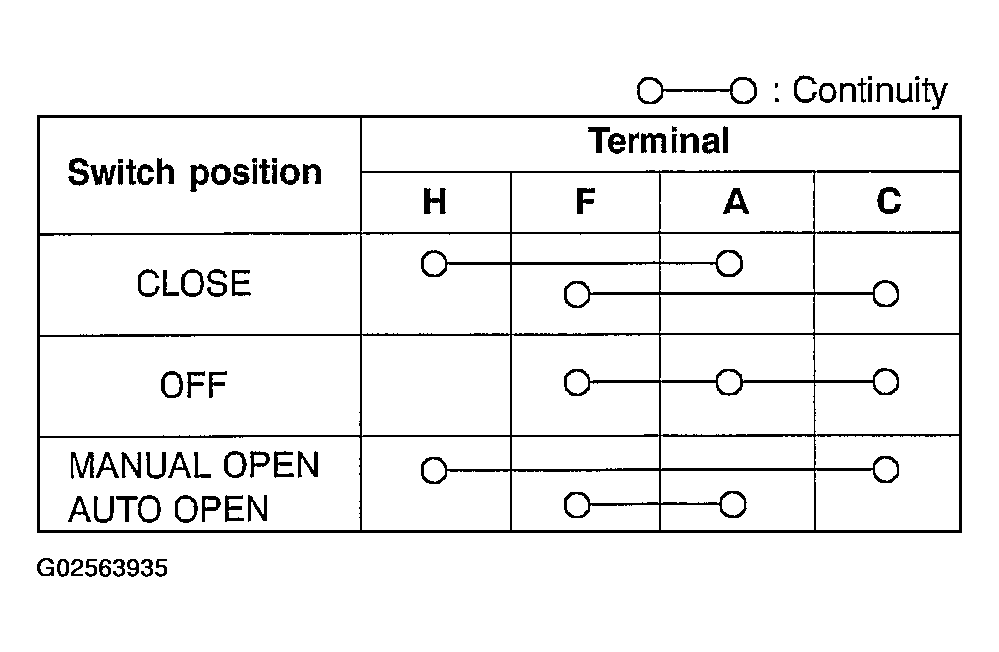

Fig 1: Power Window Main Switch Terminals Continuity Specifications - Driver's Side
Courtesy of MAZDA MOTORS CORP.

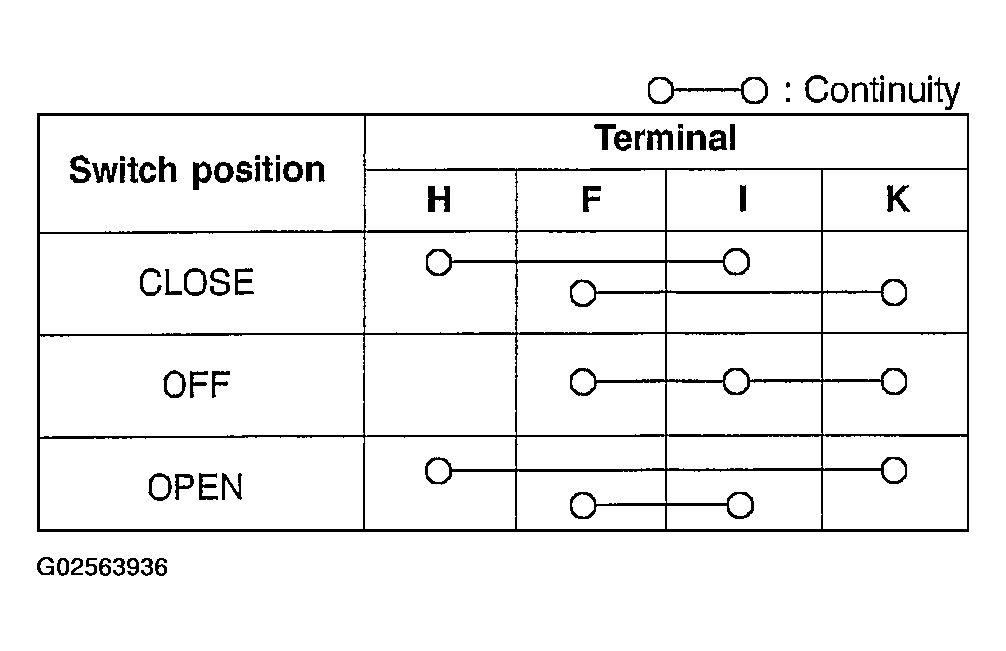

Fig 2: Power Window Main Switch Terminals Continuity Specifications - Passenger's Side
Courtesy of MAZDA MOTORS CORP.

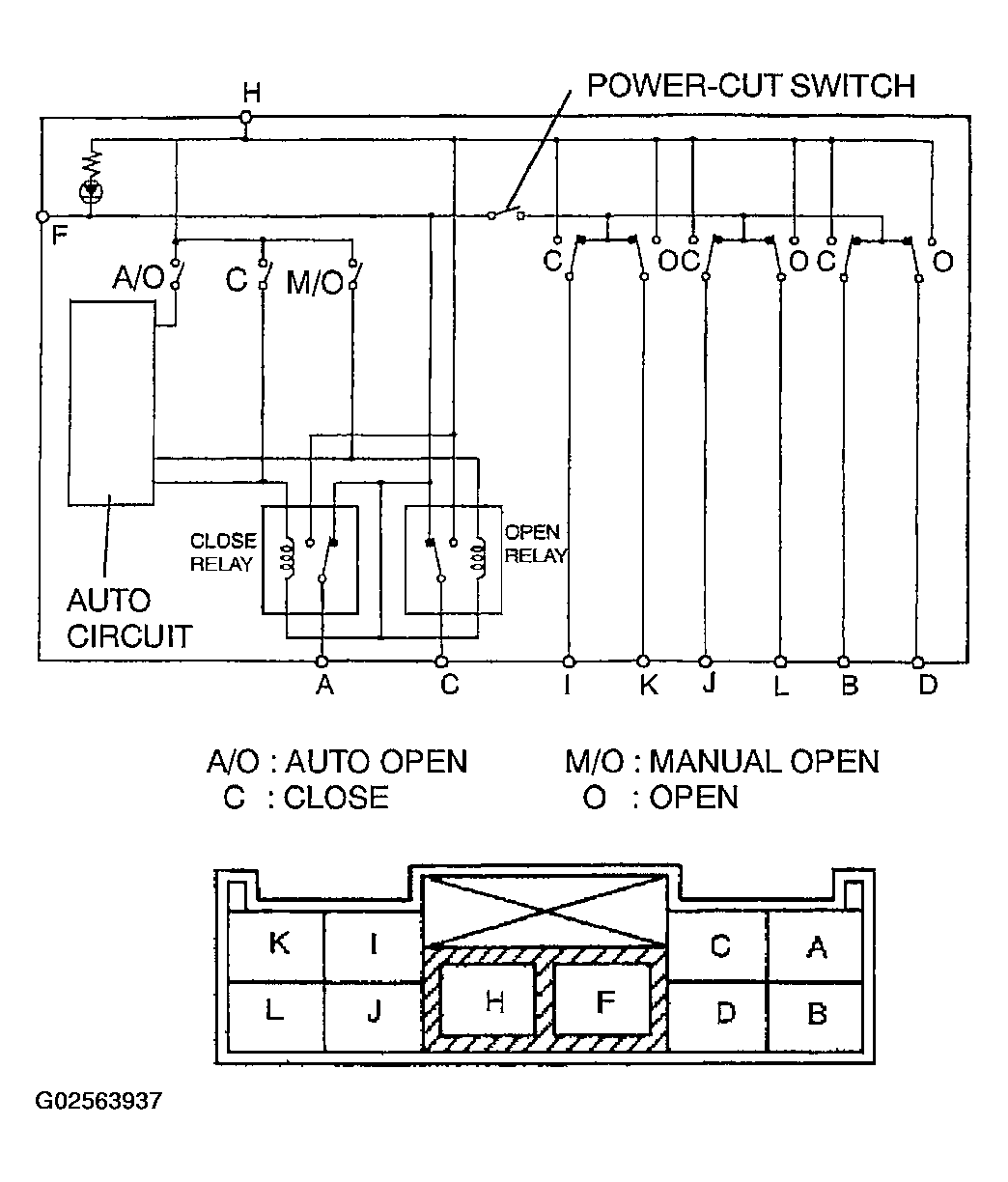

Fig 3: Identifying Power Window Main Switch Circuits, Terminals & Connector View
Courtesy of MAZDA MOTORS CORP.

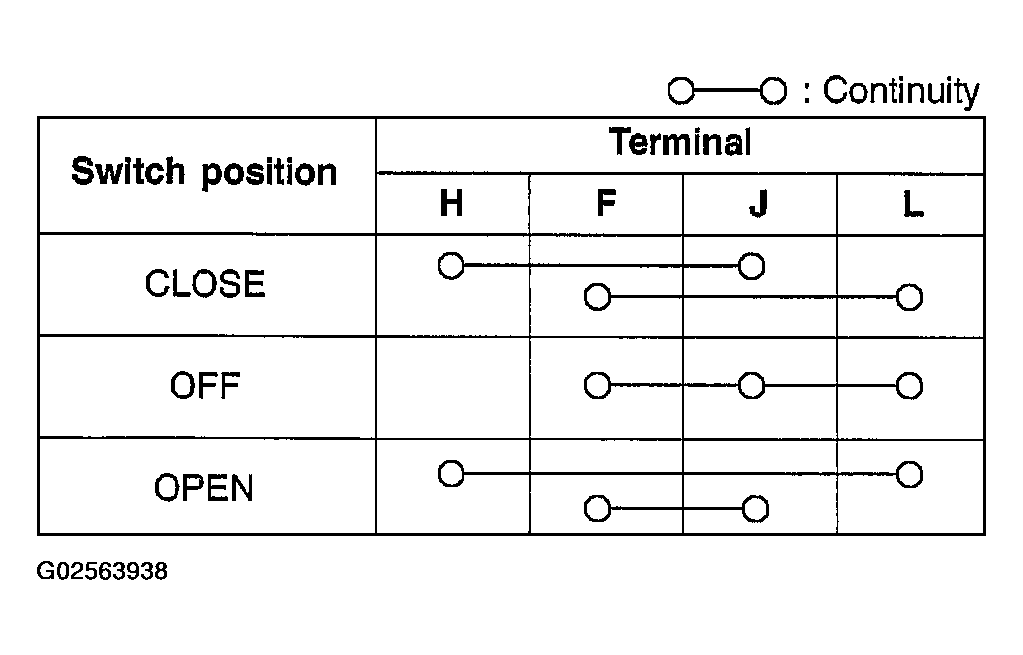

Fig 4: Power Window Main Switch Terminals Continuity Specifications - Rear Right
Courtesy of MAZDA MOTORS CORP.

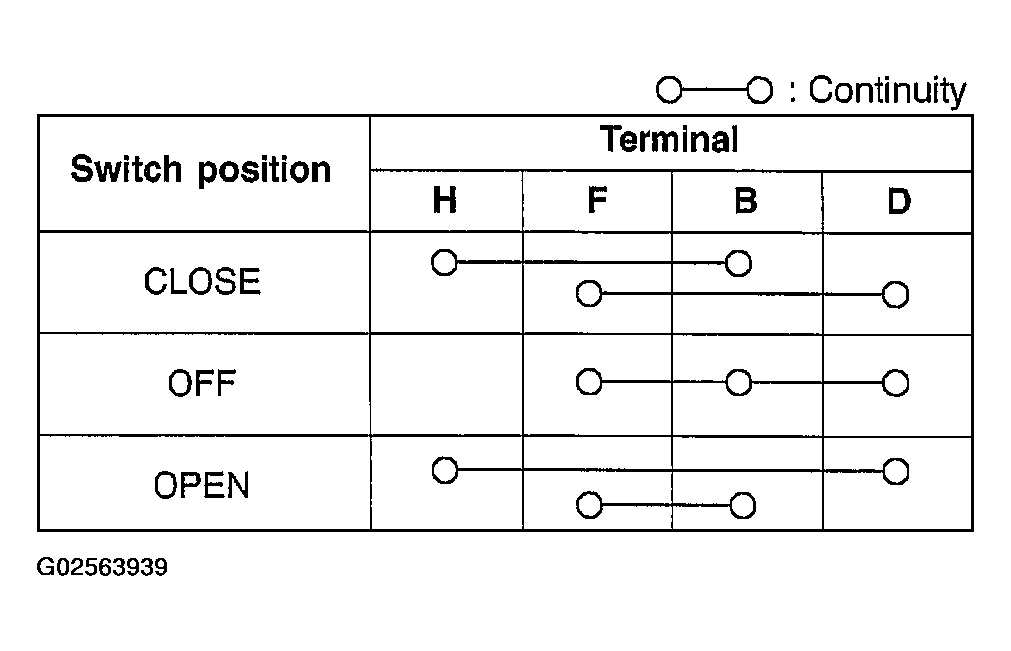

Fig 5: Power Window Main Switch Terminals Continuity Specifications - Rear Left
Courtesy of MAZDA MOTORS CORP.

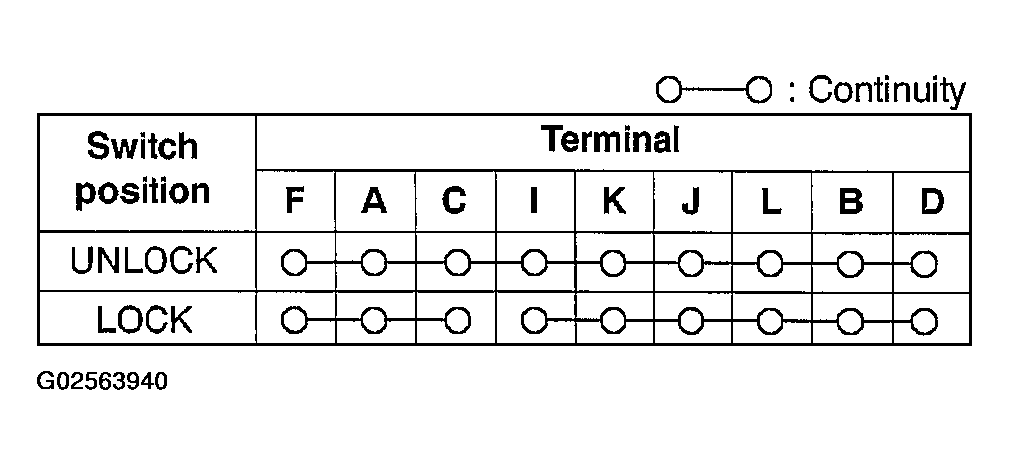

Fig 6: Power Window Main Switch Terminals Continuity Specifications - Power-Cut Switch
Courtesy of MAZDA MOTORS CORP.
