Power Window SUBSWITCH Inspection

If inspecting the passenger's side, remove the switch panel.
If inspecting the rear, remove the power window sub switch.
Inspect for continuity between the power window sub switch terminals using an ohmmeter.
- If not as specified, replace the power window sub switch.

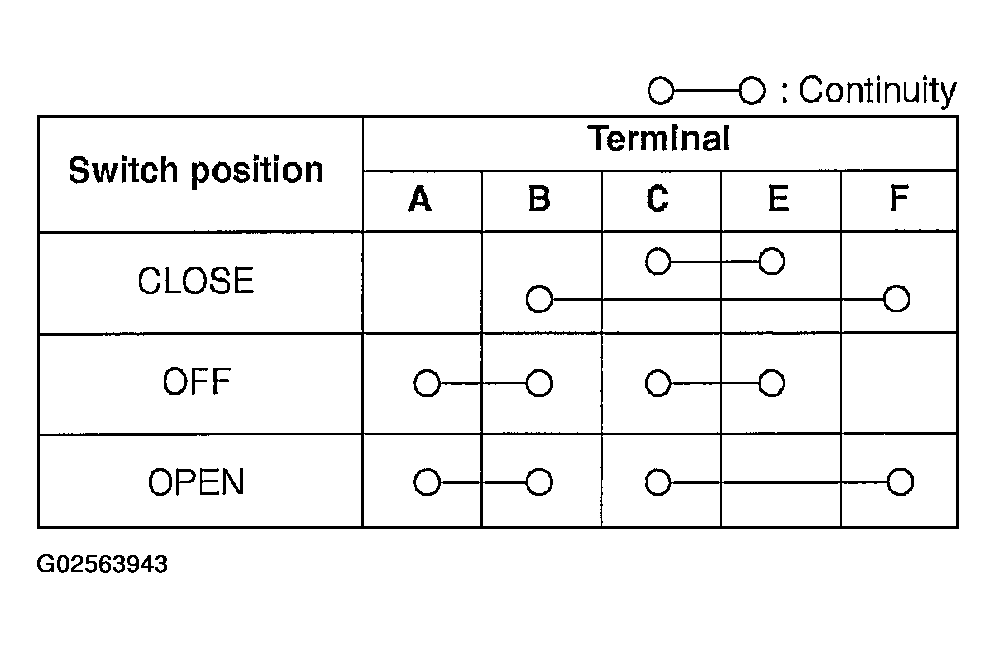

Fig 1: Power Window Subswitch - Passenger's Side
Courtesy of MAZDA MOTORS CORP.

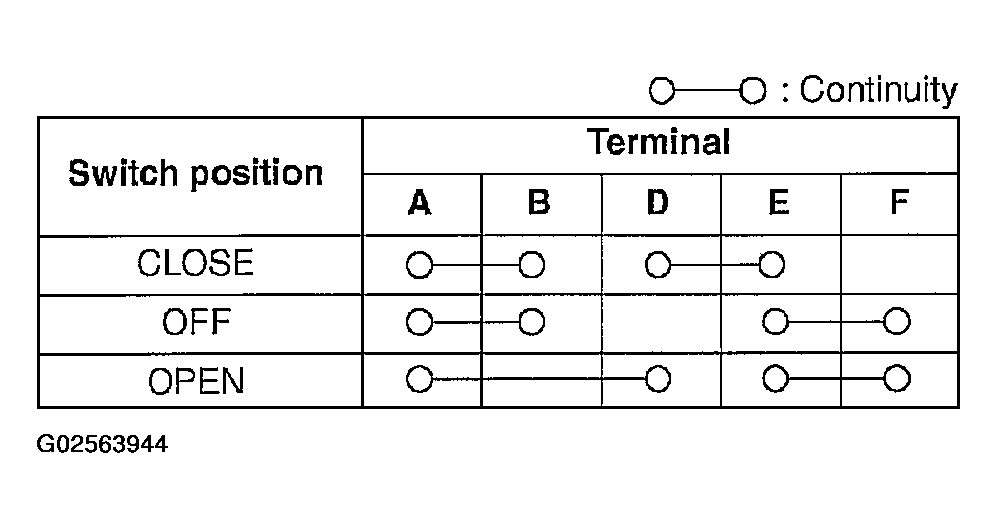

Fig 2: Power Window Subswitch - Rear
Courtesy of MAZDA MOTORS CORP.

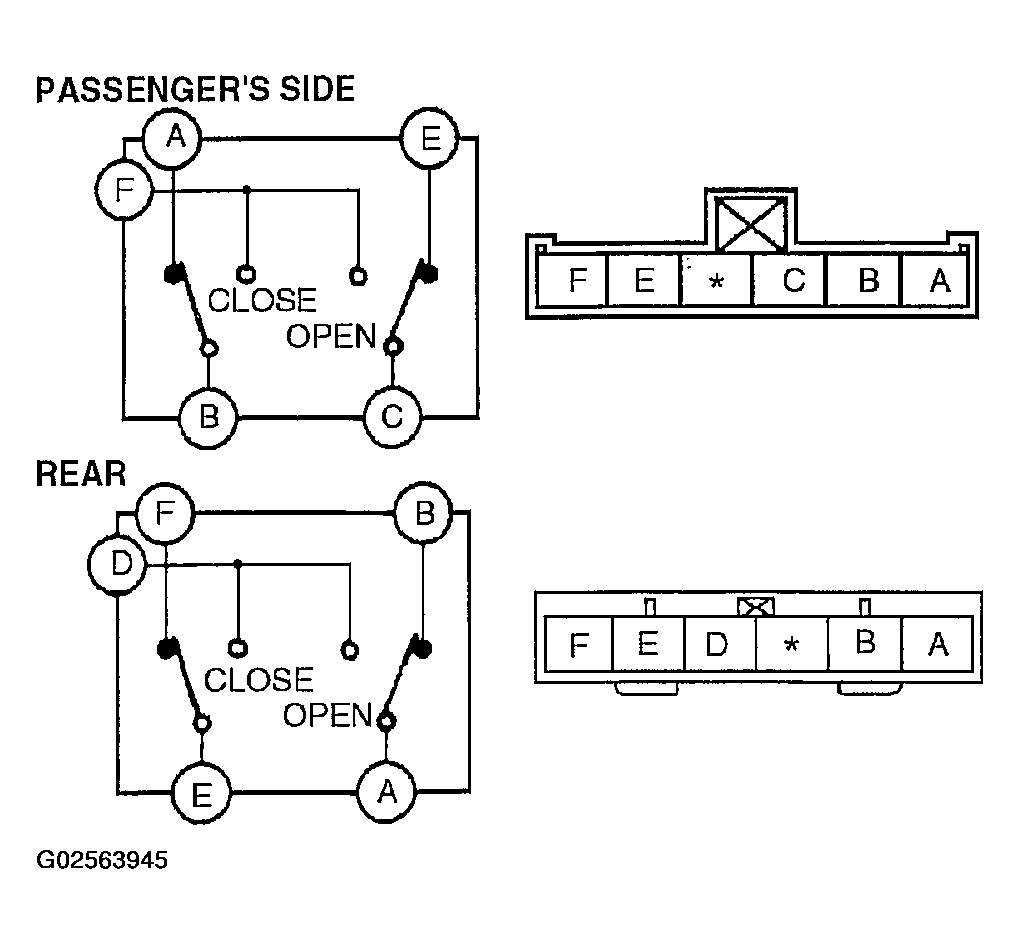

Fig 3: Identifying Power Window Subswitch Circuits, Terminals & Connector View
Courtesy of MAZDA MOTORS CORP.
