Rear Door Glass And Guide Removal/Installation

Lower or raise the rear door glass so that the distance from the top of the rear door glass at the rear end to the upper part of the front beltline molding is 260 mm {10 in} .
Disconnect the negative battery cable.
Remove the sliding door trim. (See SLIDING DOOR TRIM REMOVAL/INSTALLATION .)
Remove the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)

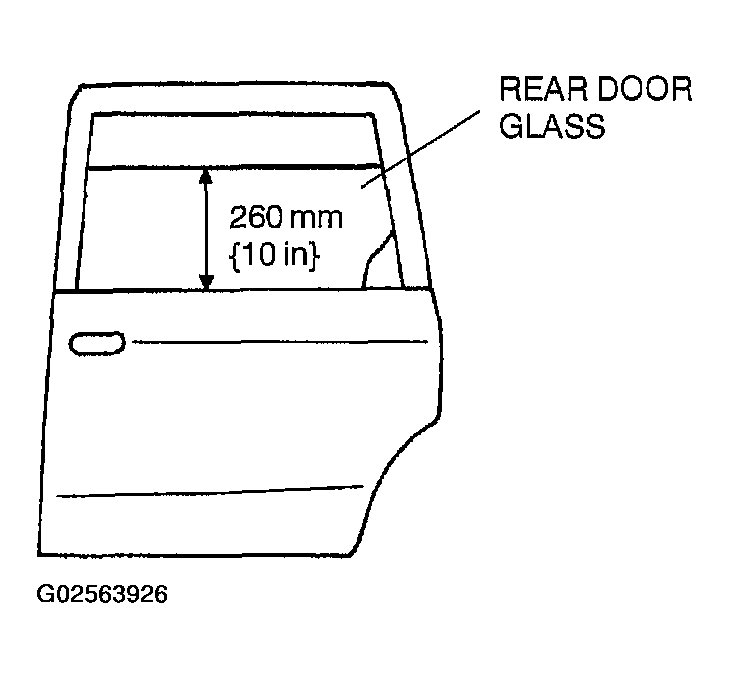

Fig 1: Positioning Rear Door Glass For Rear Door Glass & Guide Removal
Courtesy of MAZDA MOTORS CORP.

Remove in the order indicated in the table/figure.

REMOVING/INSTALLING REAR DOOR GLASS & GUIDE

Component/Step No.	Component Description
1	Door Screen
2	Glass Guide
3	Rear Door Glass (See REAR DOOR GLASS DISASSEMBLY NOTE )
4	Glass Run Channel

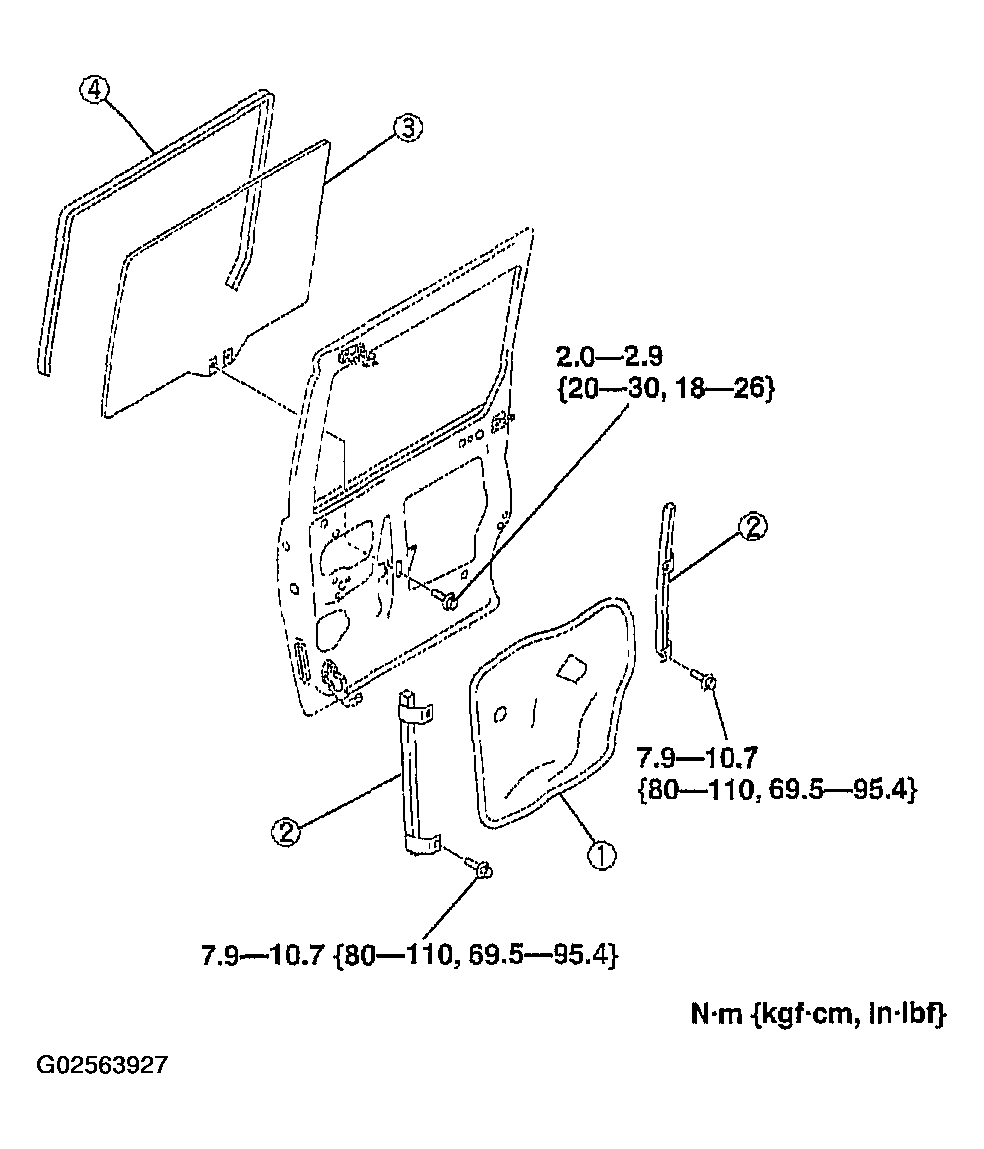

Fig 2: Removing/Installing Rear Door Glass & Guide

Courtesy of MAZDA MOTORS CORP.
