Rear Power Window Regulator Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table/figure.
    DISASSEMBLING/ASSEMBLING REAR POWER WINDOW REGULATOR

    Component/Step No. Component Description
    1 Cover
    2 Power Window Motor (See POWER WINDOW MOTOR ASSEMBLY NOTE )
    3 Frame

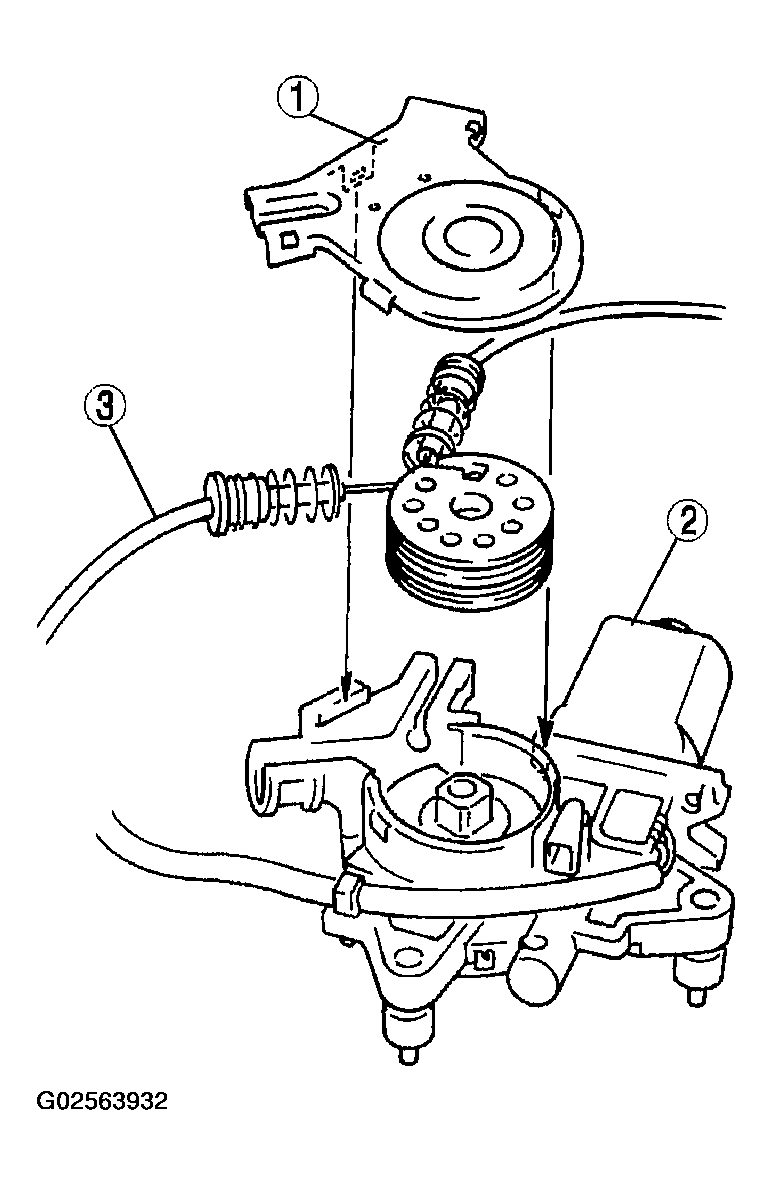

    Fig 1: Disassembling/Assembling Rear Power Window Regulator
    G02563932Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
