Rear Window Glass Removal: Notes

  1. Remove the rear wiper arm and blade. (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Apply protective tape along the edge of body to protect it from damage.

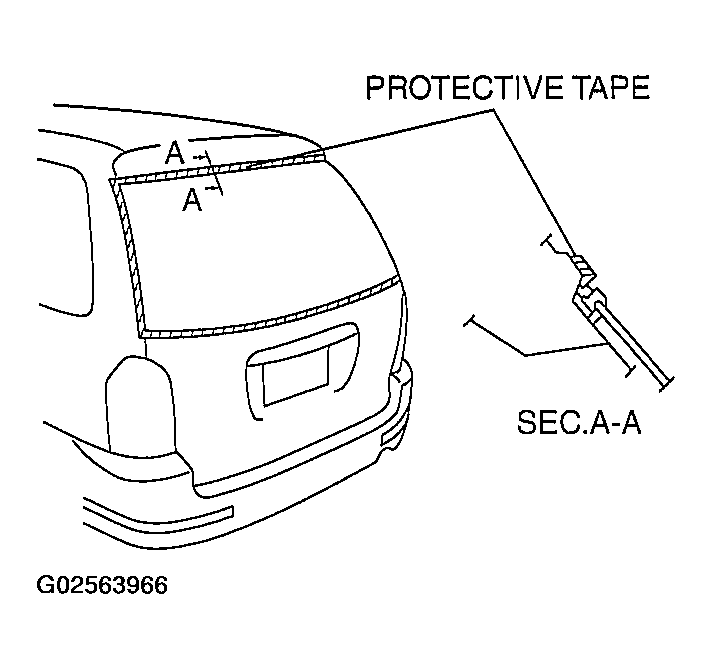

    Fig 1: Applying Protective Tape Along Edge Of Body
    G02563966Courtesy of MAZDA MOTORS CORP.
    4. WARNING:
    • Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
    NOTE:
    • The rear window molding is a replacement part.

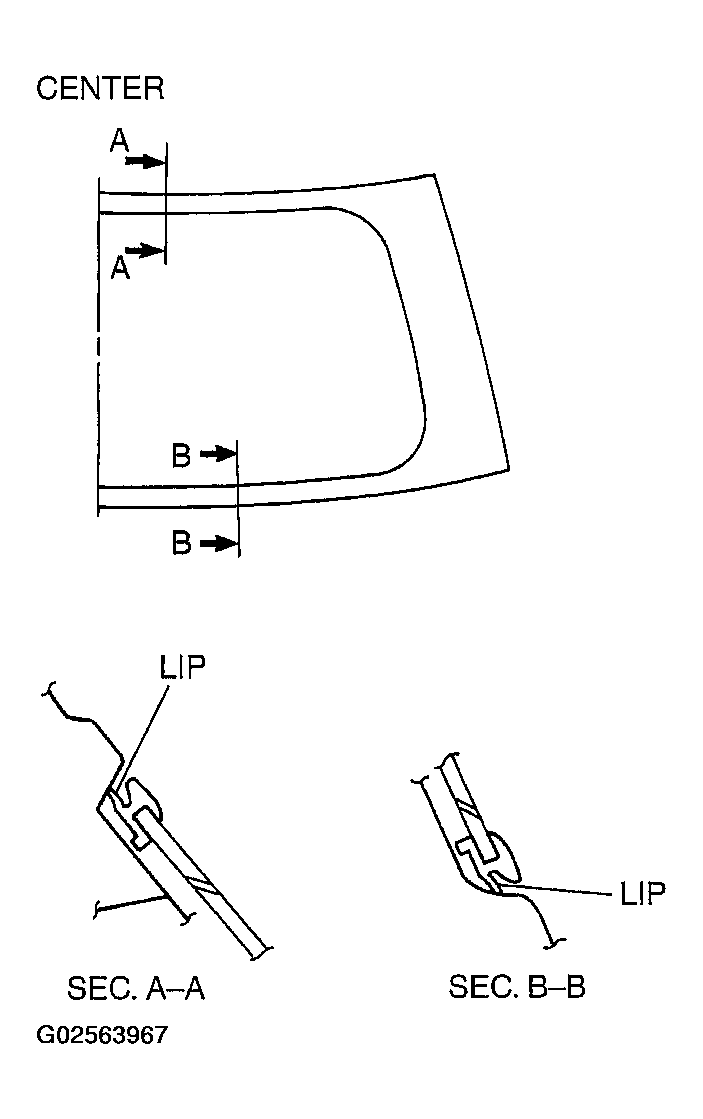

    Fig 2: Removing Lip Of Rear Window Molding
    G02563967Courtesy of MAZDA MOTORS CORP.
  4. Remove the lip of the rear window molding using a razor.
