Connector Installation Note

  1. Verify that the lock lever of the harness connector is completely pulled up.

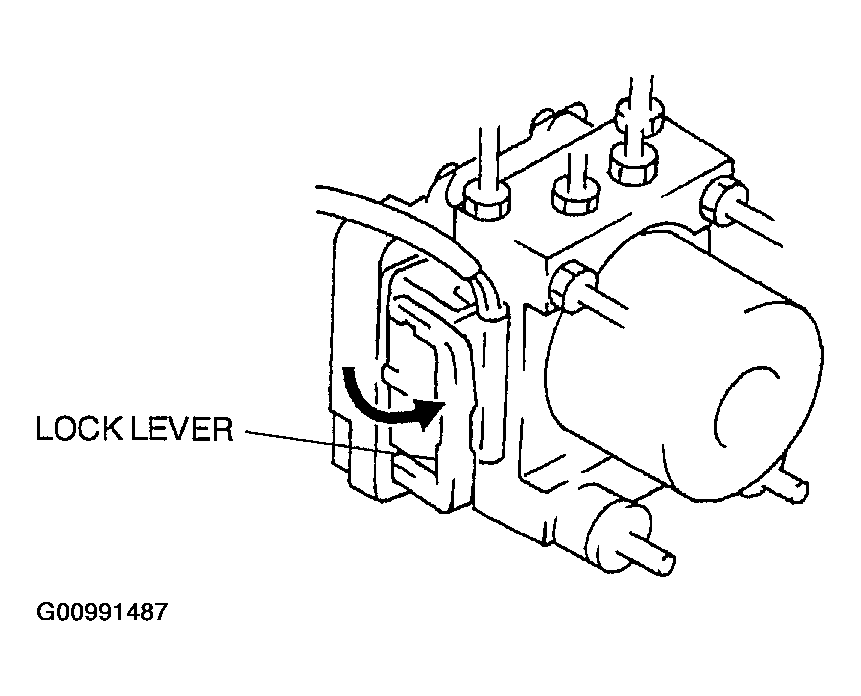

    Fig 1: Pulling Lock Lever Up
    G00991487Courtesy of MAZDA MOTORS CORP.
