Abs HU/Cm Removal/Installation: Notes

CAUTION:
  • Do not drop the ABS HU/CM. Replace it if it is subjected to an impact.
  1. Remove the battery.
  2. Remove the air cleaner. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  3. Remove the air filter. (See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM COMPONENT REMOVAL/INSTALLATION .)
  4. Remove the splash shield.
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

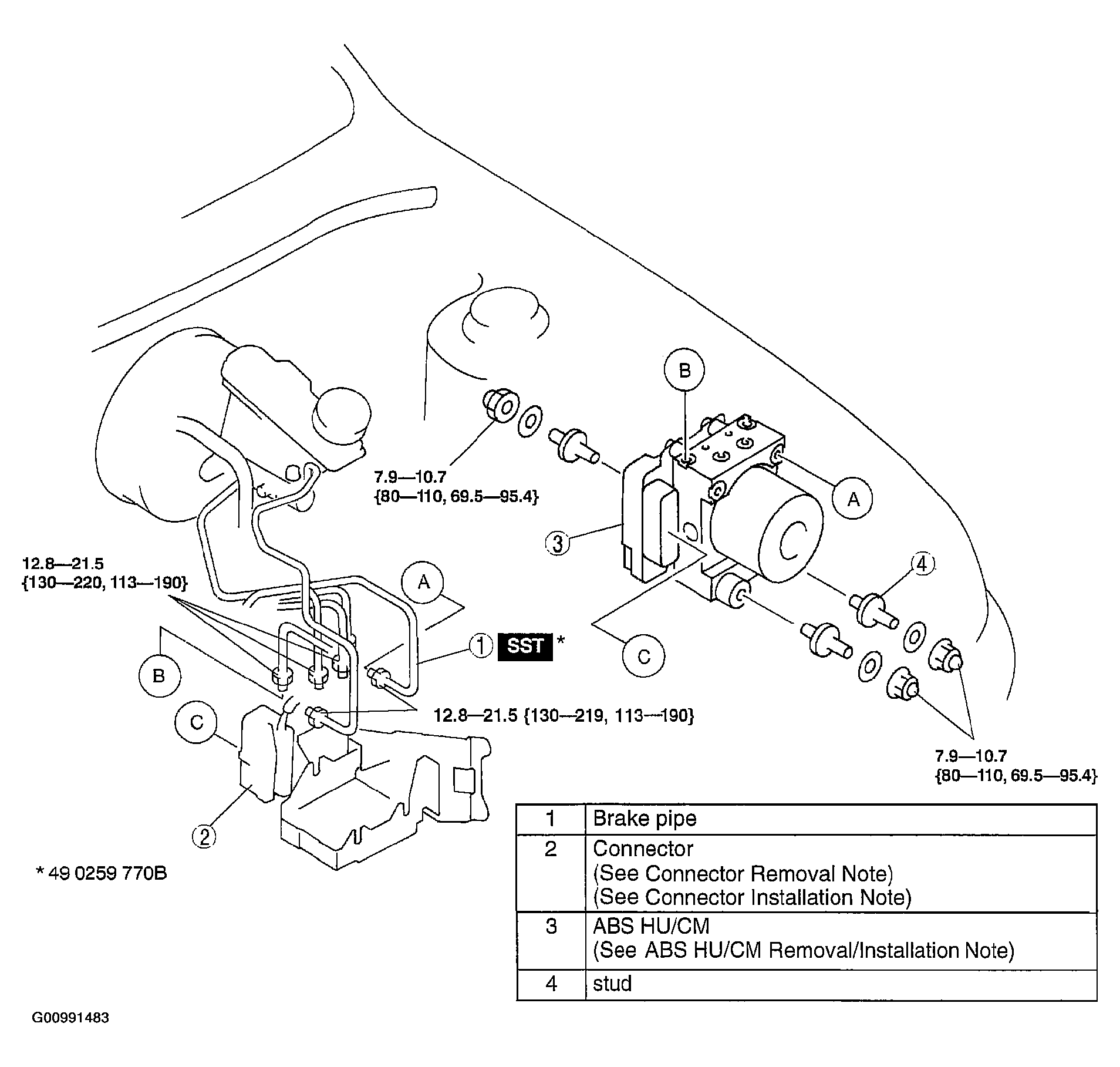

    Fig 1: Removing/Installing ABS HU/CM
    G00991483Courtesy of MAZDA MOTORS CORP.
