Front Abs Wheel-Speed Sensor Removal/Installation

  1. For left side, remove the air cleaner and air filter. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION
  2. Remove in the order indicated in the illustration.
  3. Install in the reverse order of removal.

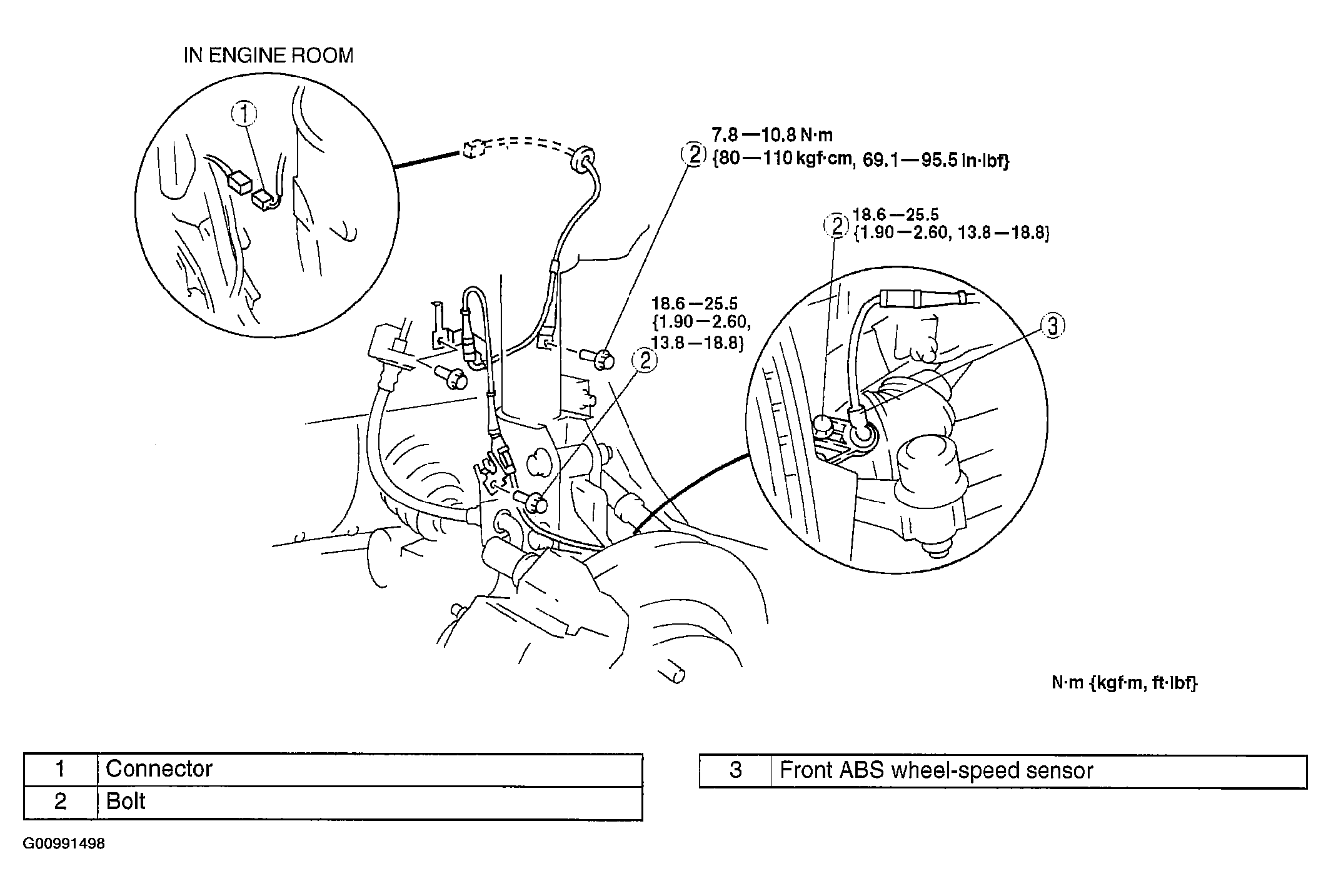

    Fig 1: Removing/Installing Front ABS Wheel-Speed Sensor
    G00991498Courtesy of MAZDA MOTORS CORP.
