TCS Off Switch Inspection

Remove the TCS OFF switch.
Inspect for continuity between the TCS OFF switch terminals using an ohmmeter.
- If not within the specification, replace the TCS OFF switch.

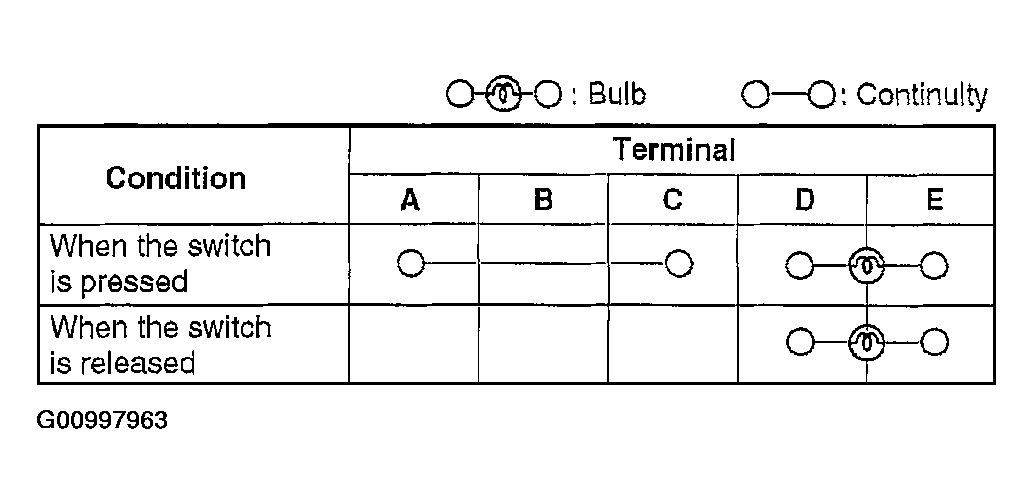

  Fig 1: TCS OFF Switch Continuity Table
  Courtesy of MAZDA MOTORS CORP.

  Fig 2: Identifying TCS OFF Switch Terminals Connection
  Courtesy of MAZDA MOTORS CORP.
