Traction Control System Location Index

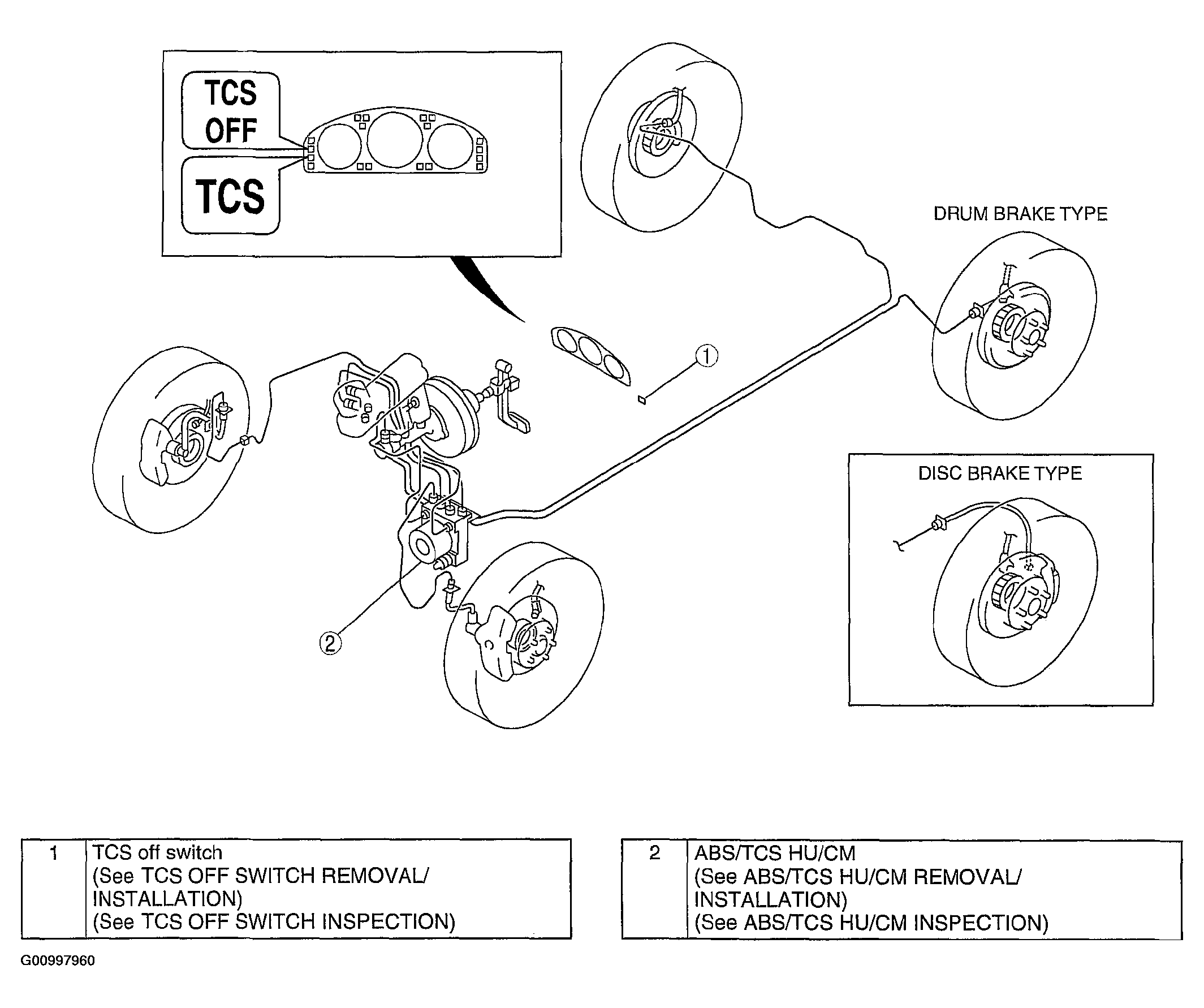

Fig 1: Traction Control System Location Index
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
