Pull-Out Test

Verify that the drive pinion is pulled out with battery positive voltage connected to terminal (S) and the started body grounded. See Fig 1 . If not pulled out, repair or replace the starter.

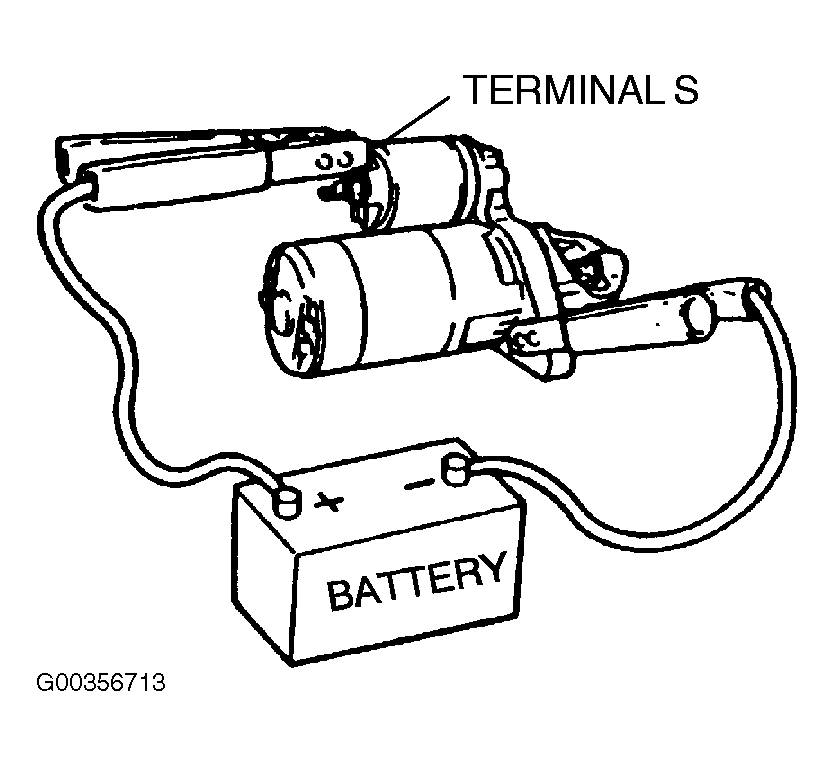

Fig 1: Performing Pull-Out Test

Courtesy of MAZDA MOTORS CORP.
