Plastic Fuel Hose Installation Note
- Inspect the plastic fuel hose and fuel distributor sealing surface for damage and deformation, and replace as necessary.
- If the quick release connector O-ring is damaged or has slipped, replace the plastic fuel hose.
- Apply clean engine oil to the O-rings.

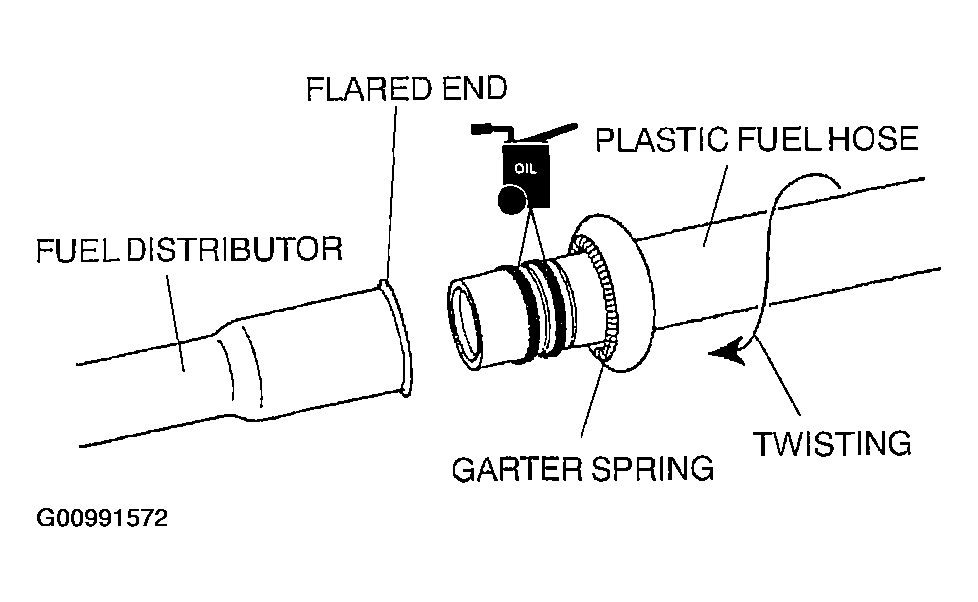

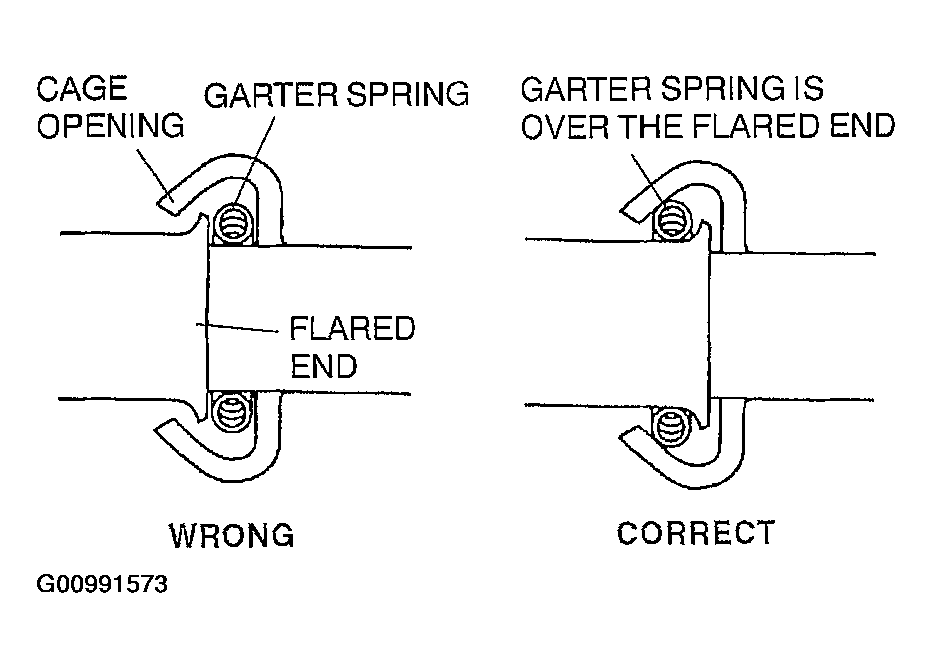

- Connect the plastic fuel hose by twisting it onto the fuel distributor until the garter spring at the plastic fuel hose is over the flared end of the fuel distributor.
Courtesy of MAZDA MOTORS CORP.
- Lightly pull and push the quick release connector by hand and verify that it is installed securely.
Courtesy of MAZDA MOTORS CORP.

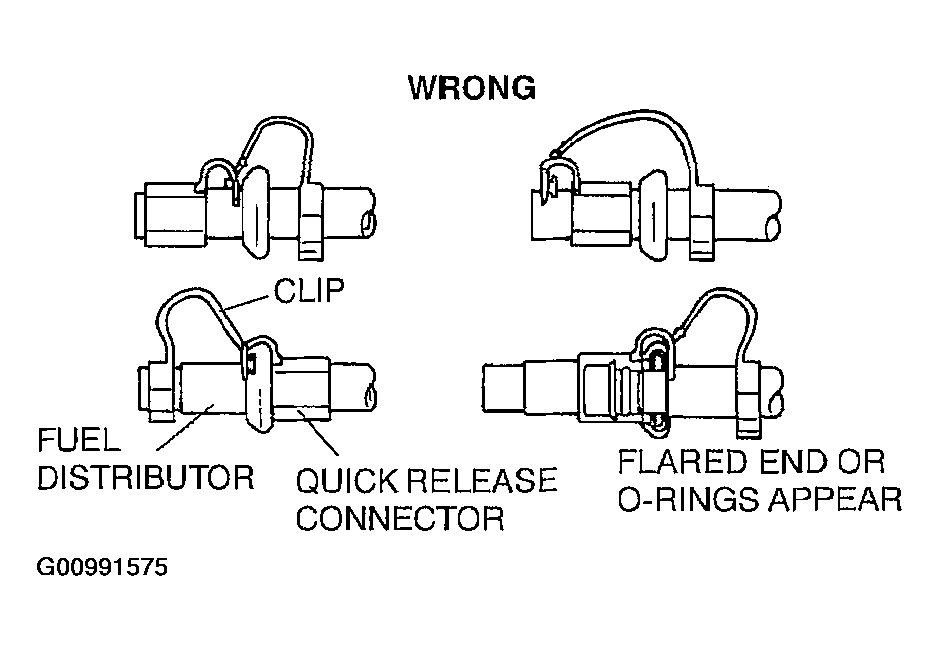

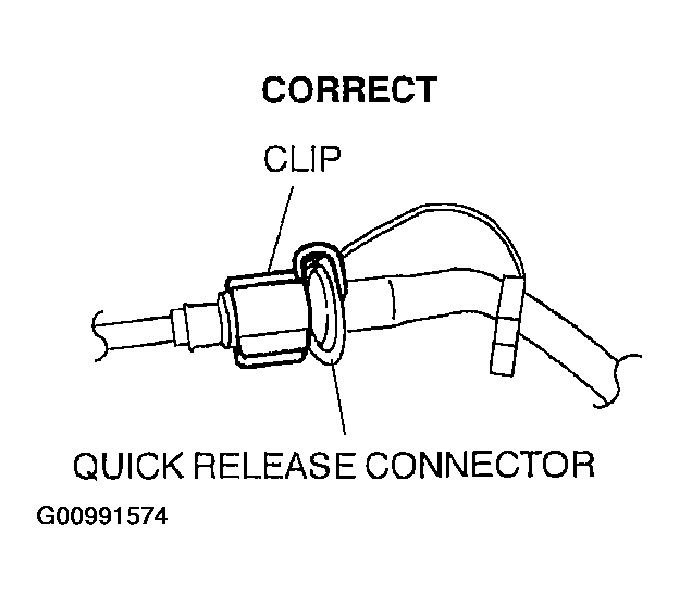

- Install the clip to the quick release connector.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
