NONRETURN Valve Inspection

Remove the nonreturn valve. (See FUEL TANK REMOVAL/INSTALLATION .)
Verify that the nonreturn valve opens up to 90 degrees when it is pushed from the fuel-filler pipe side, and it returns to the normal position by the spring force.
- If the nonreturn valve does not open up to 90 degrees or does not return to the normal position, replace the nonreturn valve.

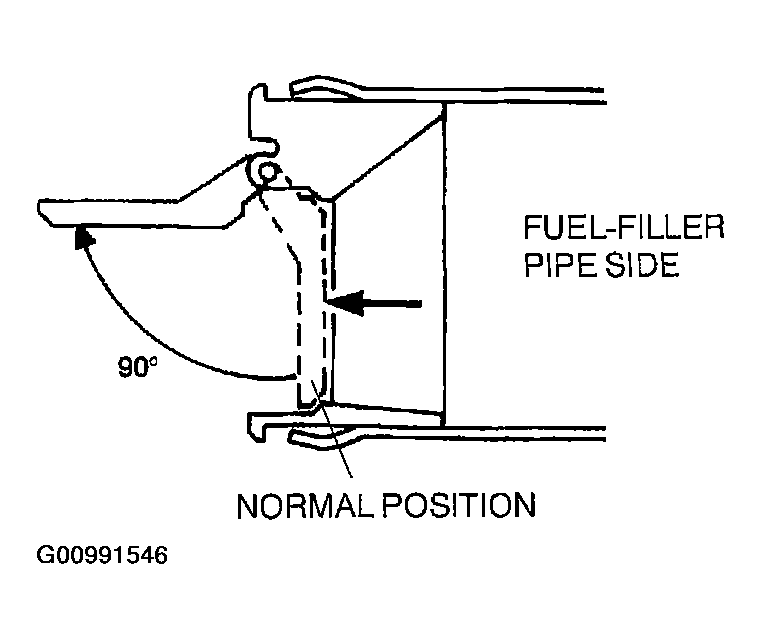

  Fig 1: Inspecting Nonreturn Valve
  Courtesy of MAZDA MOTORS CORP.
