Generator field coil signal

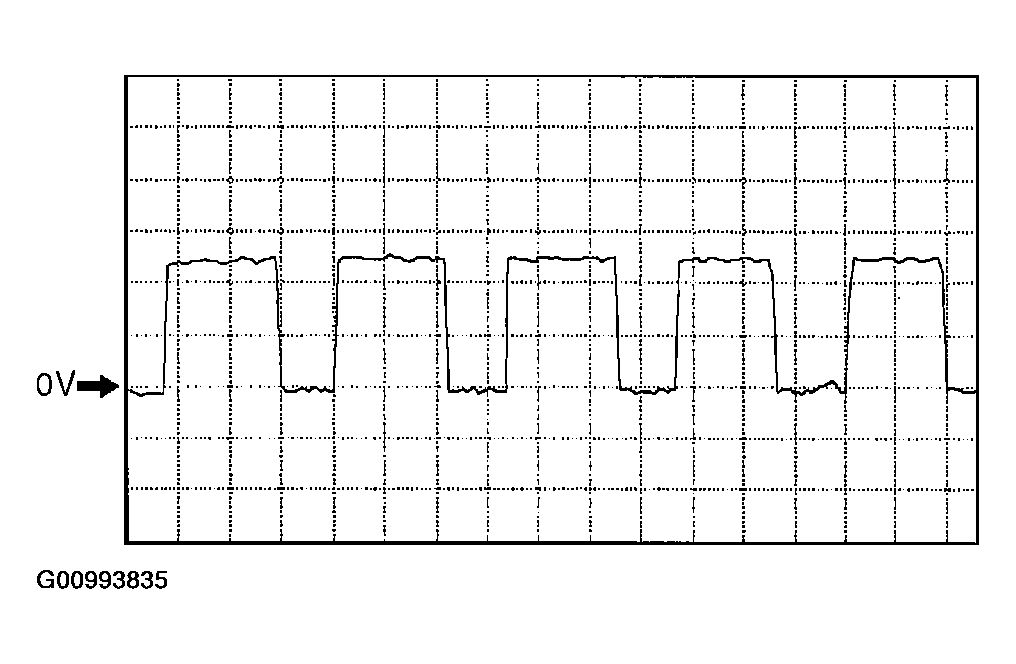

Fig 1: Generator Field Coil Signal Inspection By Using Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.
PCM terminal: 53(+)-103(-)
Oscilloscope setting: 0.5V/DIV (Y), 1ms/DIV (X), DC range
Vehicle condition: idle after warm up
Courtesy of MAZDA MOTORS CORP.
