IAC control signal

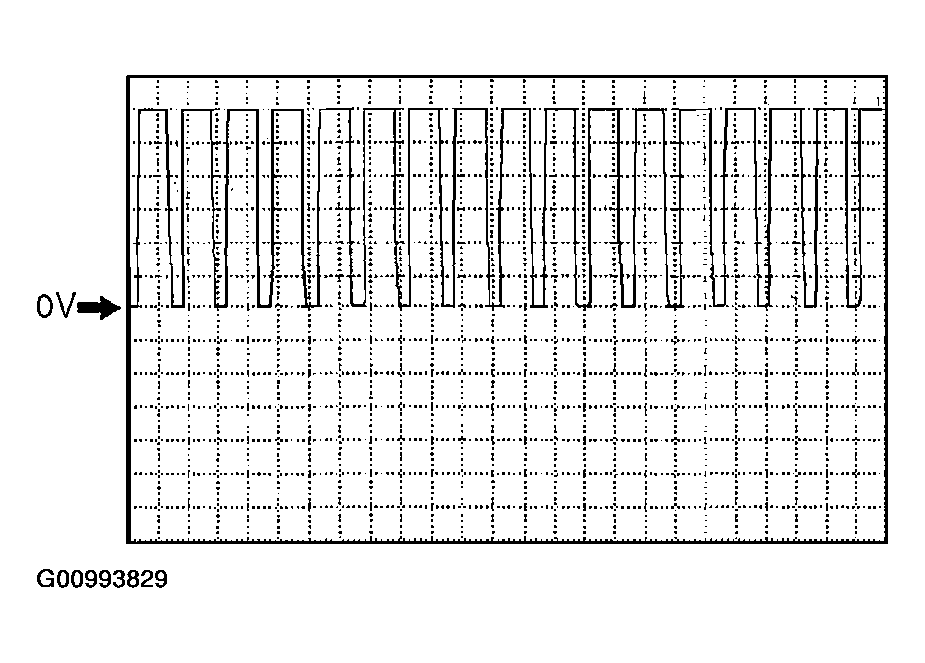

Fig 1: IAC Control Signal Inspection By Using Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.
PCM terminal: 83(+)-24(-)
Oscilloscope setting: 2V/DIV (Y), 0.1 ms/DIV (X), DC range
Vehicle condition: idle after warm up
Courtesy of MAZDA MOTORS CORP.
