PID/DATA MONITOR table (Reference)

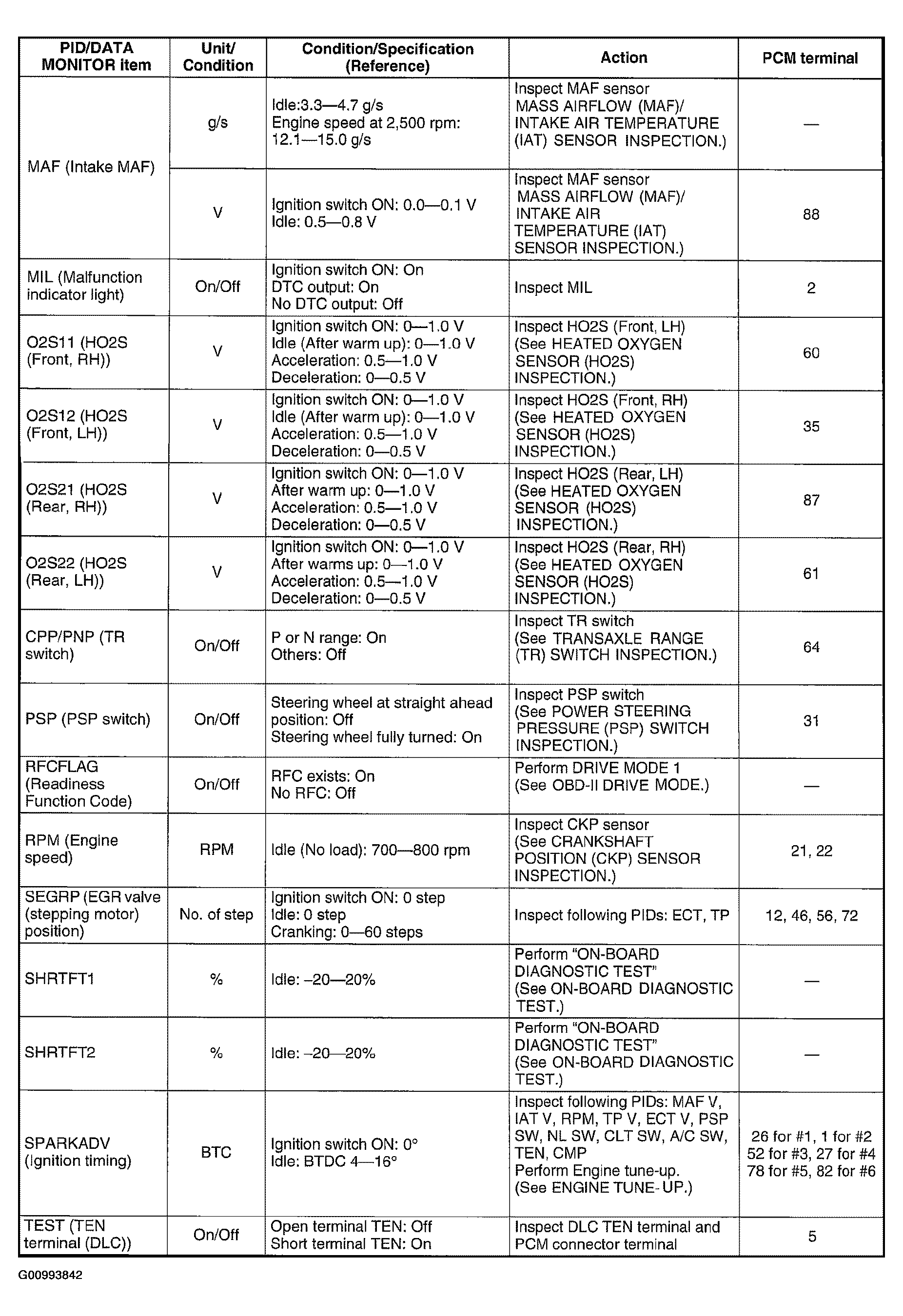

Fig 1: PID/Data Monitor Table (Reference) (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

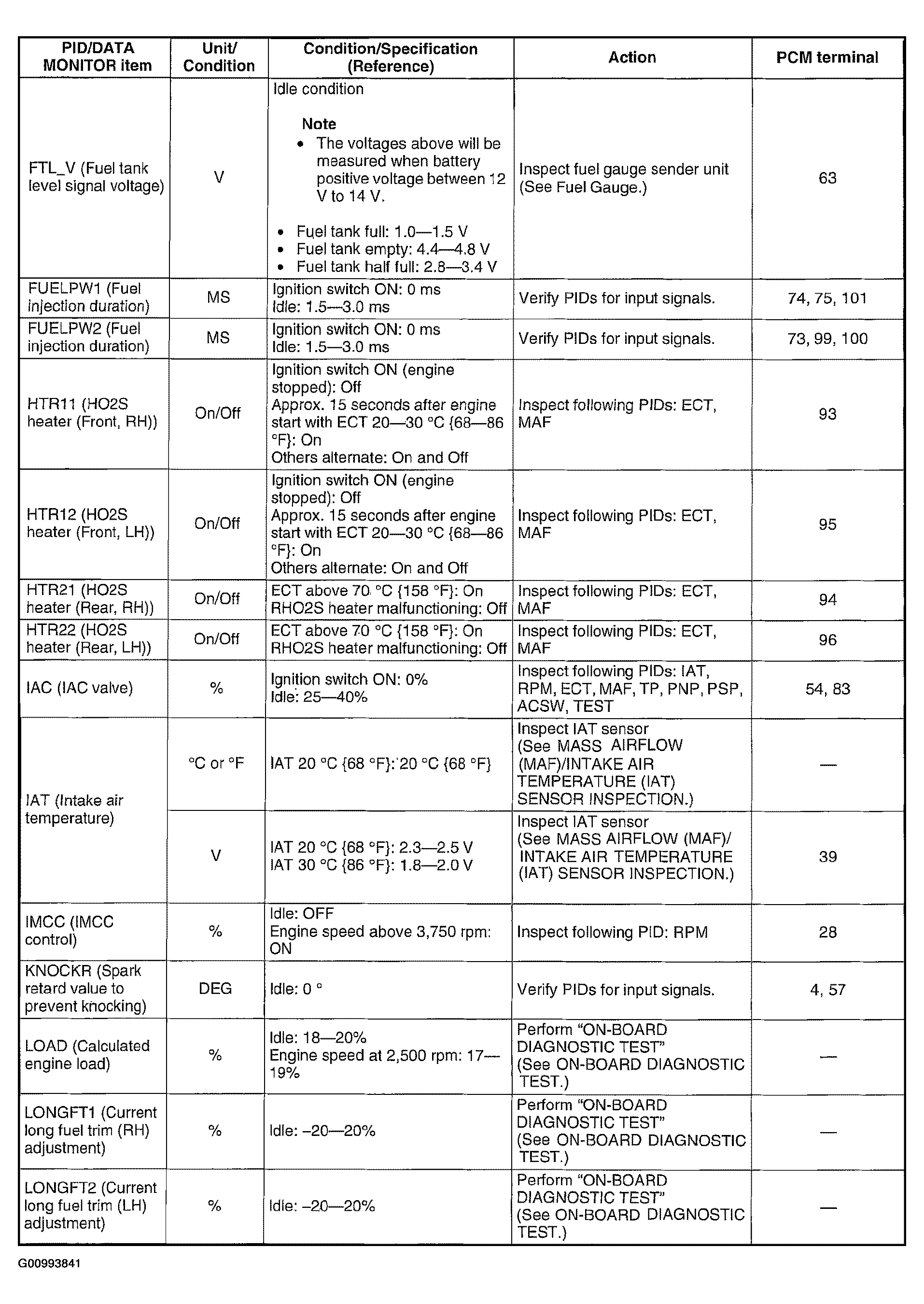

Fig 2: PID/Data Monitor Table (Reference) (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

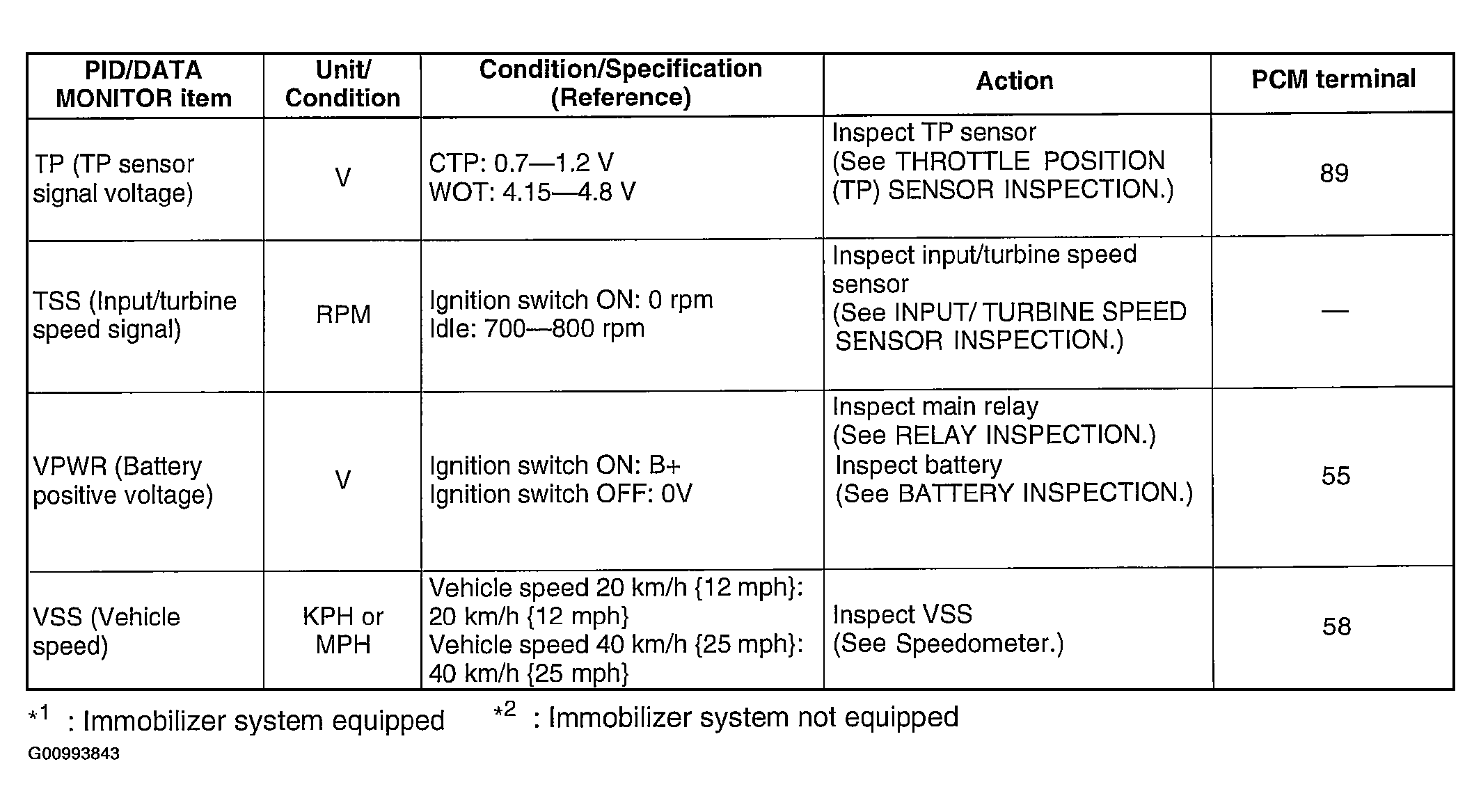

Fig 3: PID/Data Monitor Table (Reference) (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

Fig 4: PID/Data Monitor Table (Reference) (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
