DTC P0101: MAF Sensor Inconsistent With TP Sensor: Notes

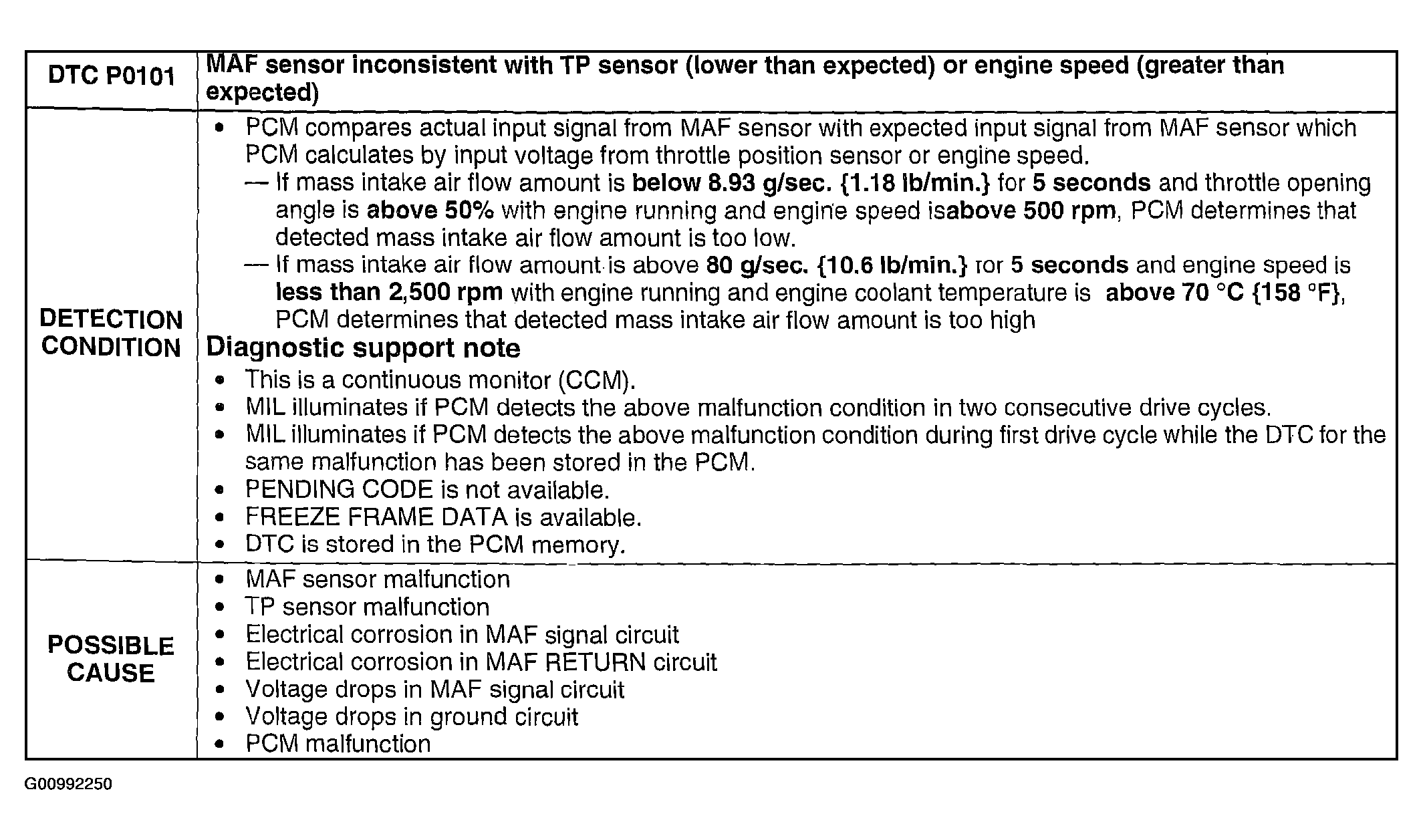

Fig 1: DTC P0101 Detection Condition & Possible Causes Chart
G00992250Courtesy of MAZDA MOTORS CORP.
