Diagnostic Procedure

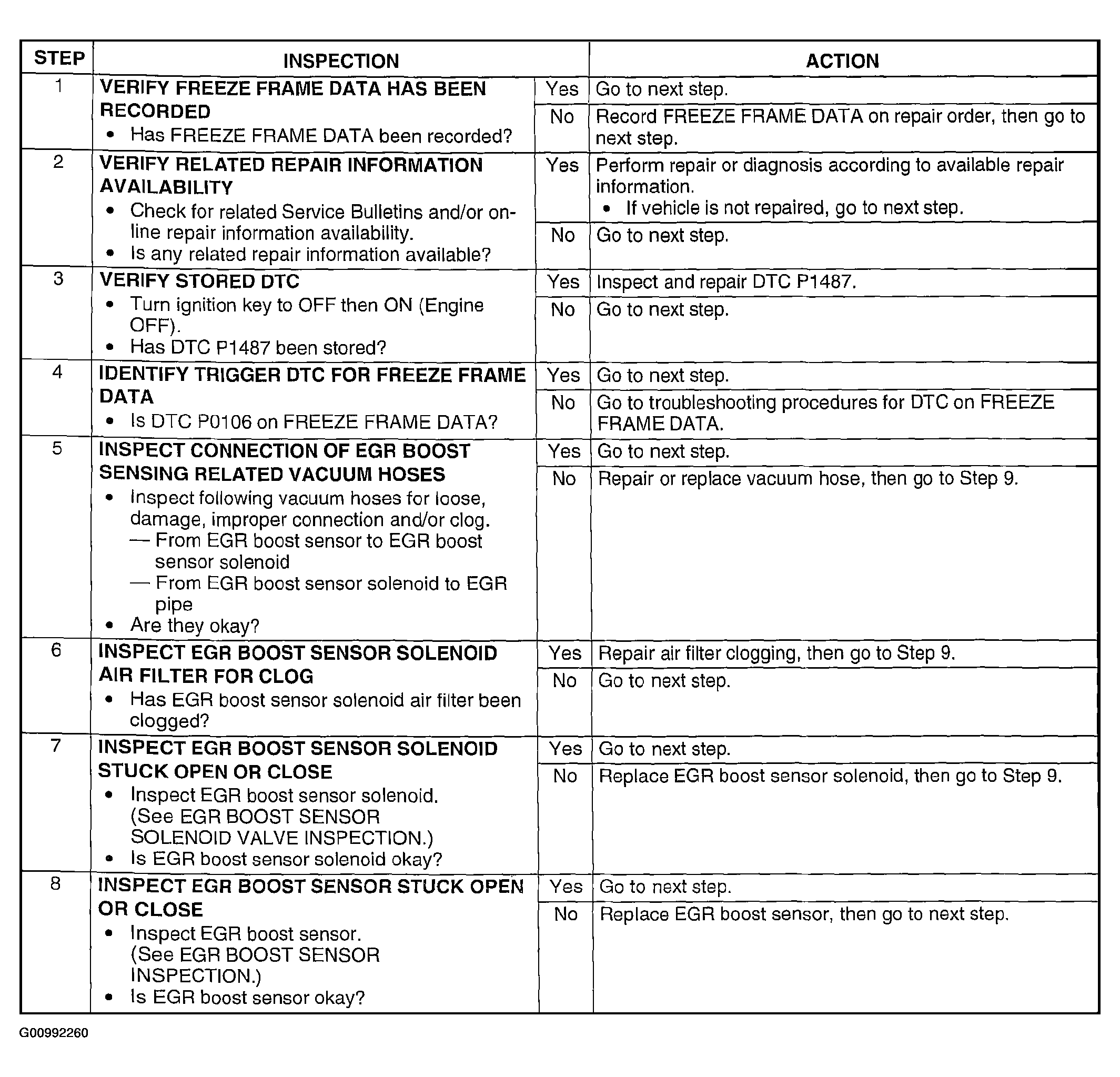

Fig 1: DTC P0106 Diagnostic Procedure Chart (Step 1-8)
Courtesy of MAZDA MOTORS CORP.

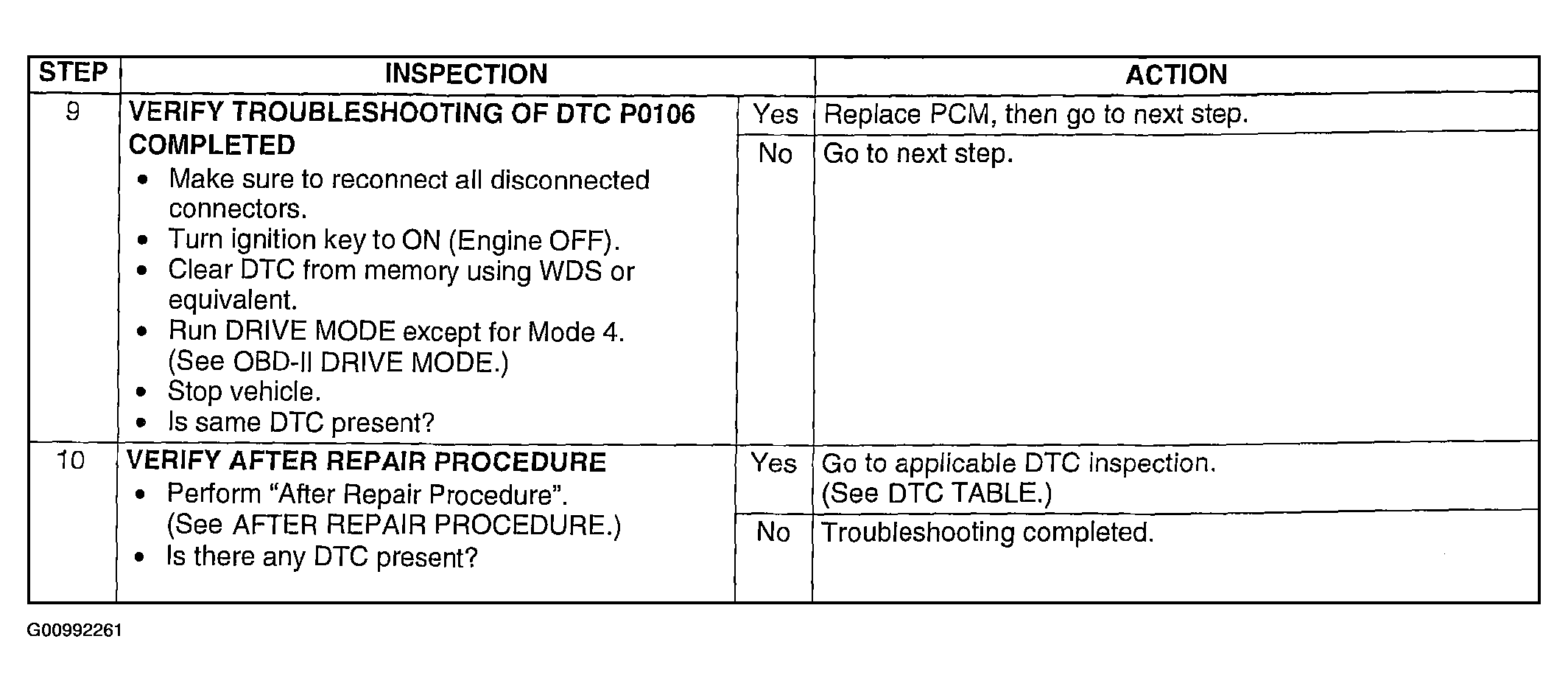

Fig 2: DTC P0106 Diagnostic Procedure Chart (Step 9-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
