DTC P0106: EGR Boost Sensor Circuit Performance Problem: Notes

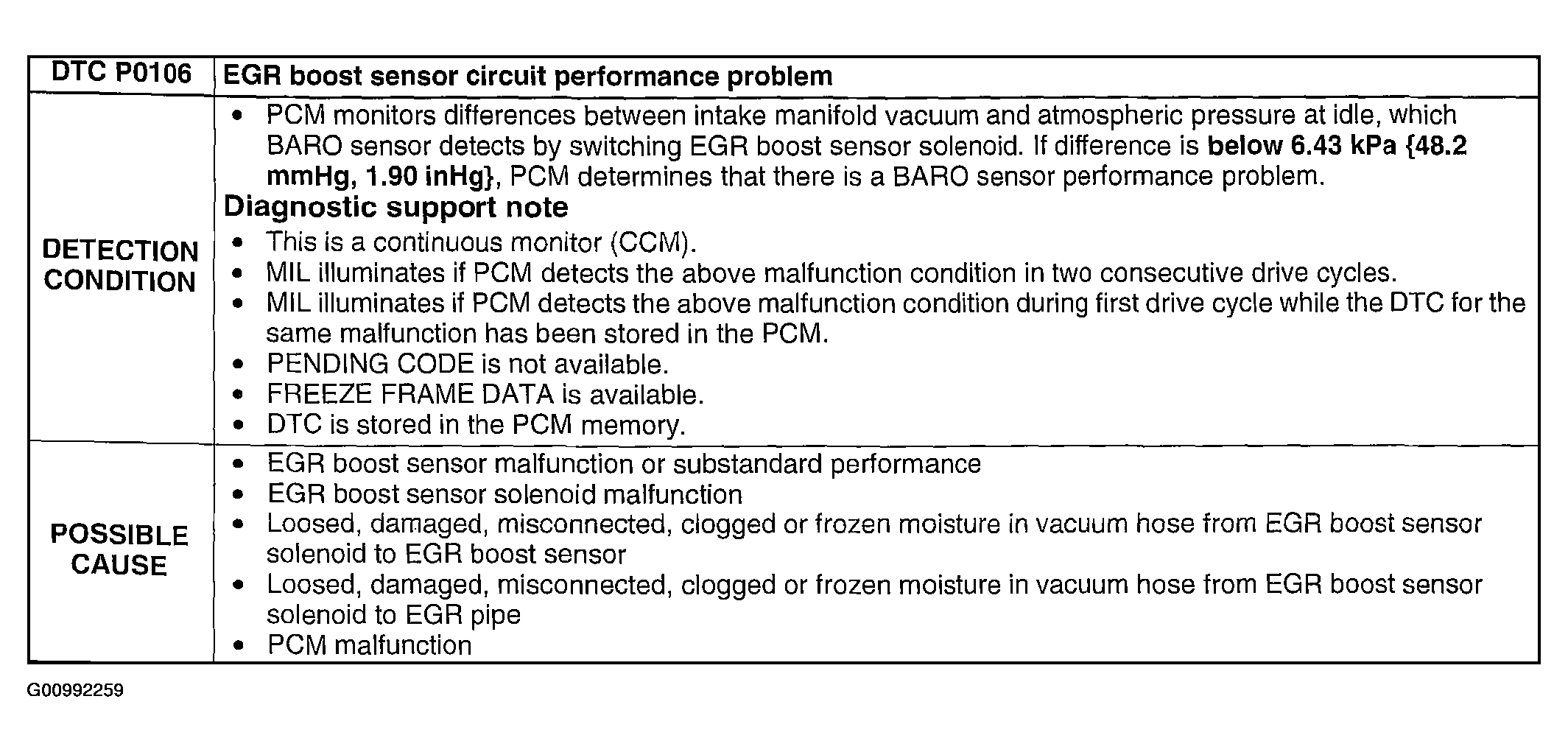

Fig 1: DTC P0106 Detection Condition & Possible Causes Chart
G00992259Courtesy of MAZDA MOTORS CORP.
