Diagnostic Procedure

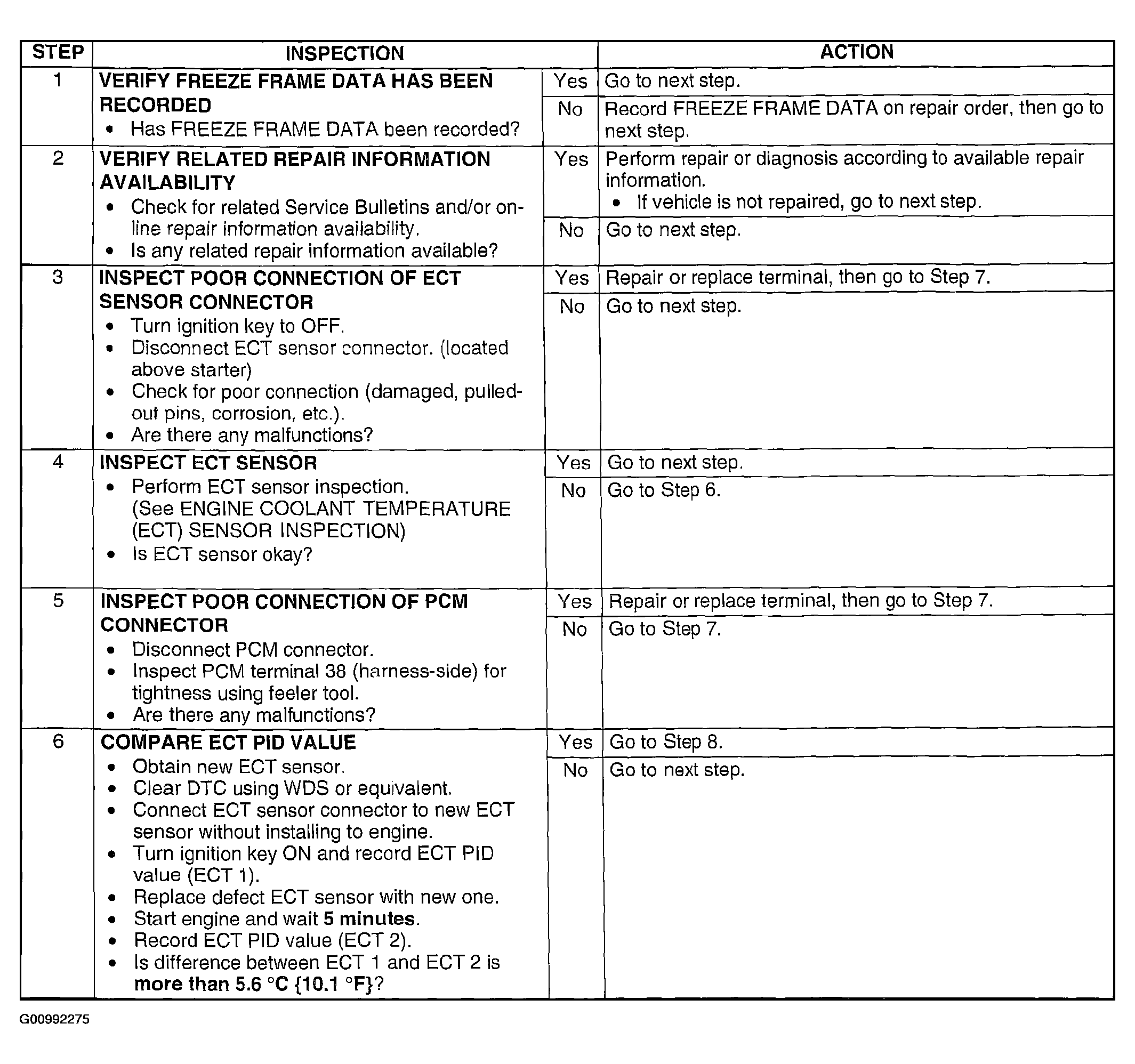

Fig 1: DTC P0116 Diagnostic Procedure Chart (Step 1-6)
G00992275Courtesy of MAZDA MOTORS CORP.

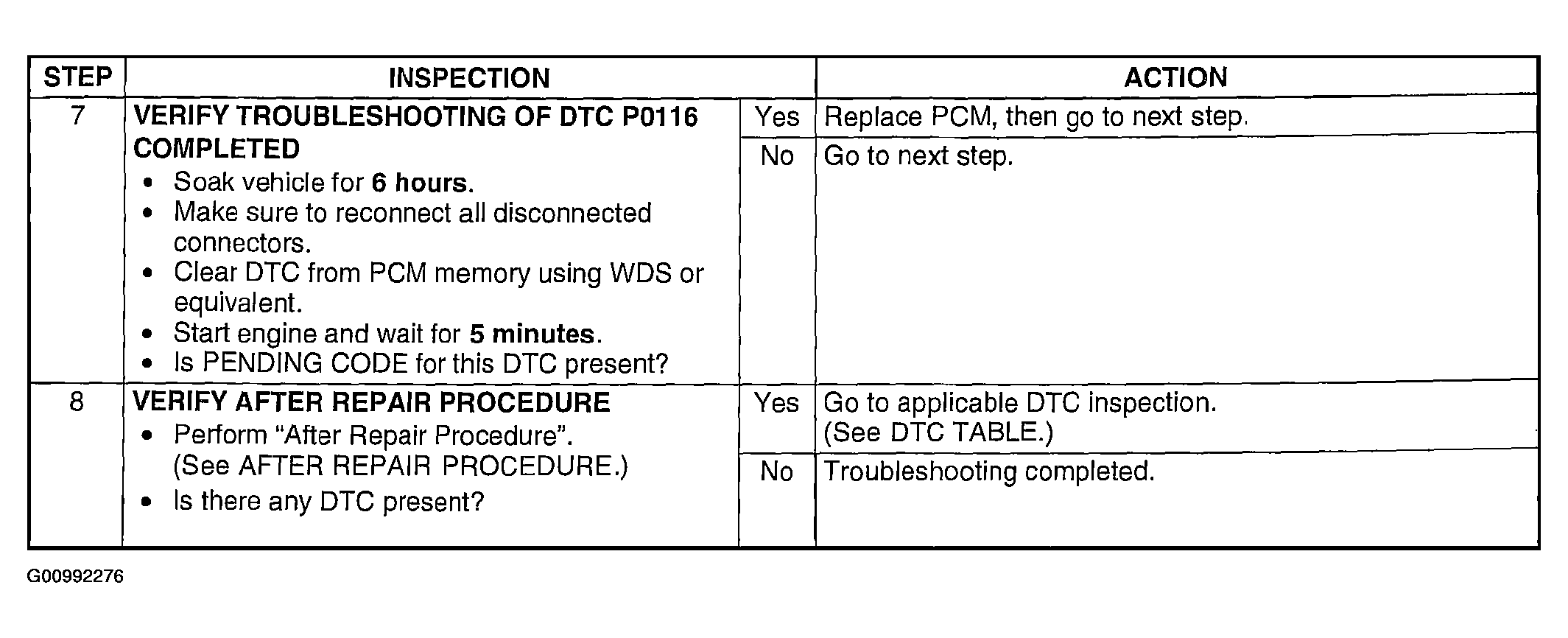

Fig 2: DTC P0116 Diagnostic Procedure Chart (Step 7-8)
G00992276Courtesy of MAZDA MOTORS CORP.
