DTC P0116: ECT Circuit Performance Problem: Notes

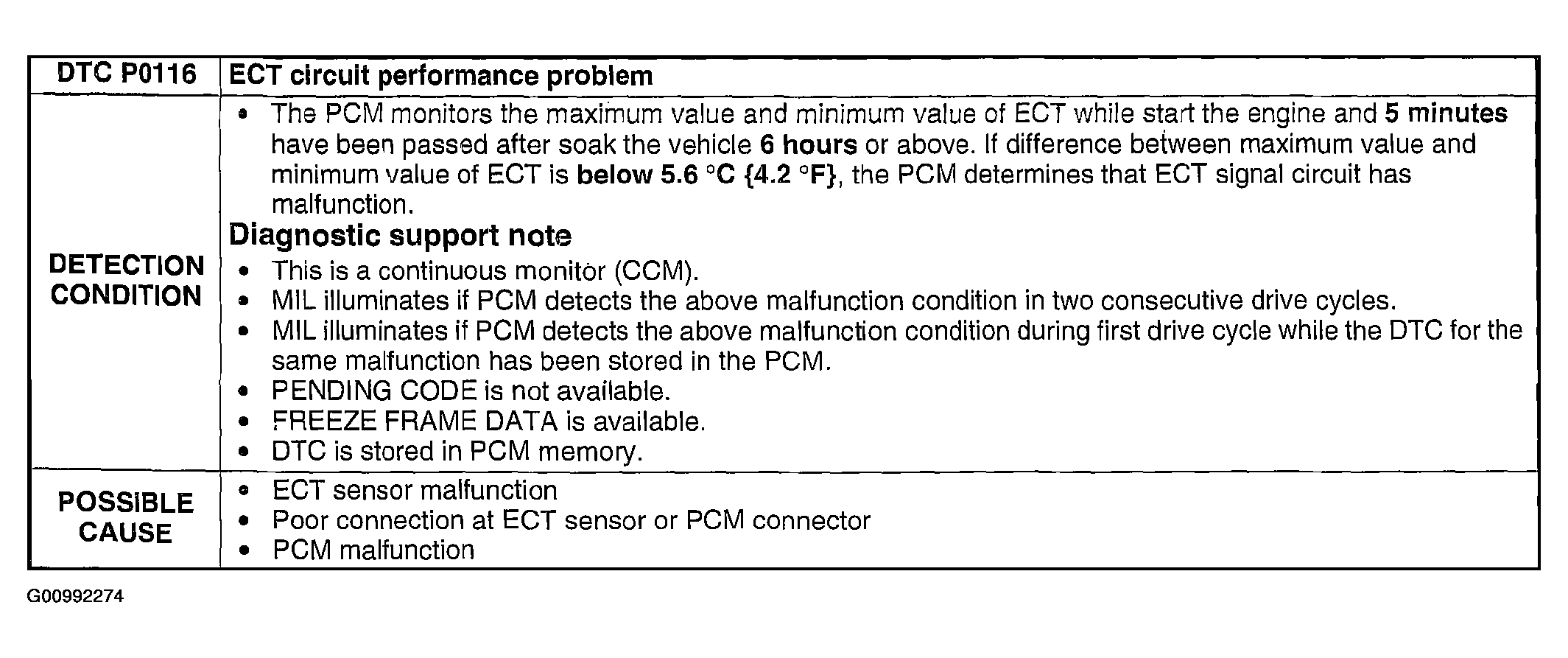

Fig 1: DTC P0116 Detection Condition & Possible Causes Chart
G00992274Courtesy of MAZDA MOTORS CORP.
