Diagnostic Procedure

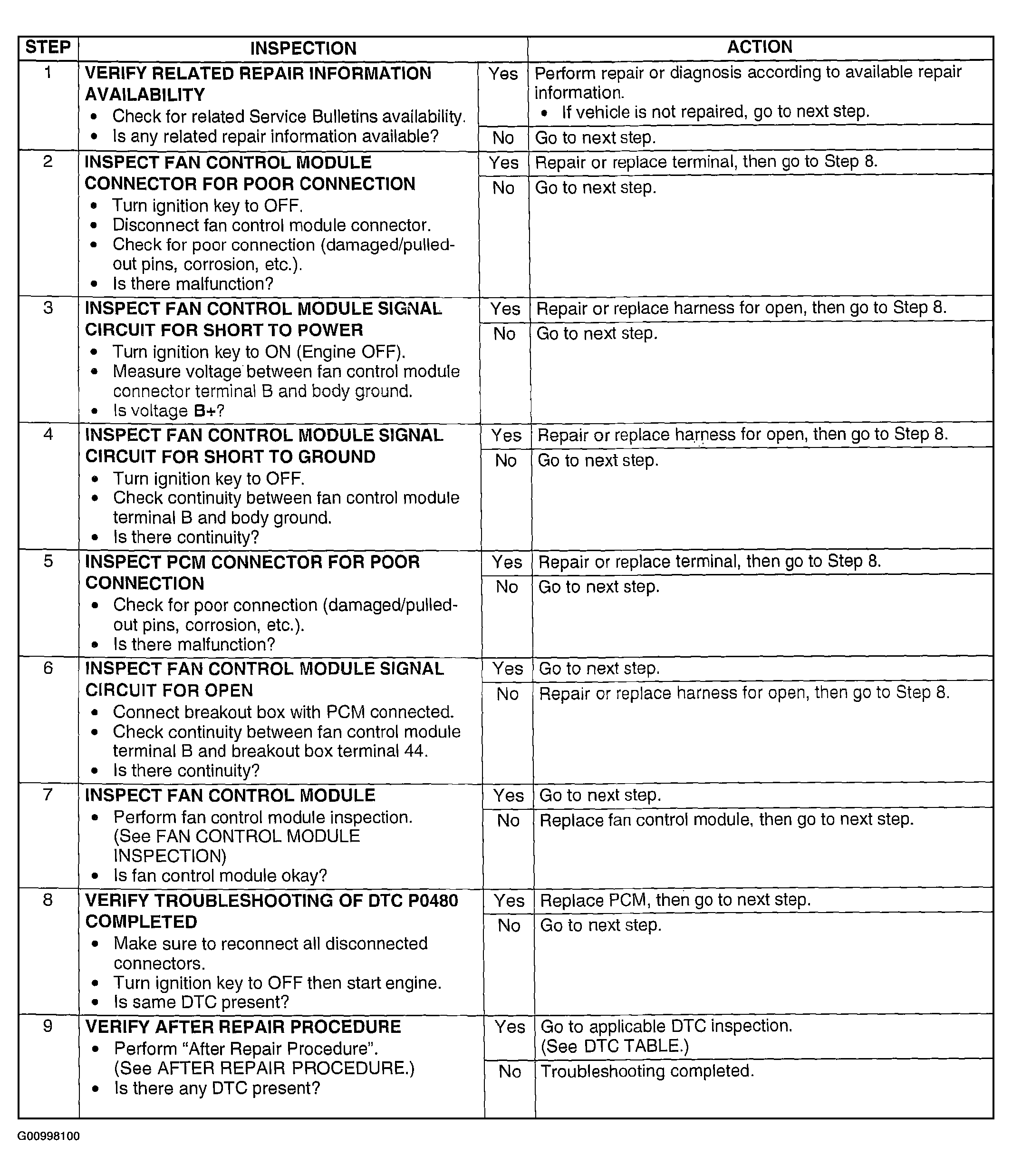

Fig 1: DTC P0480 Diagnostic Procedure Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
