DTC P0507: Idle Control System Rpm Higher Than Expected: Notes

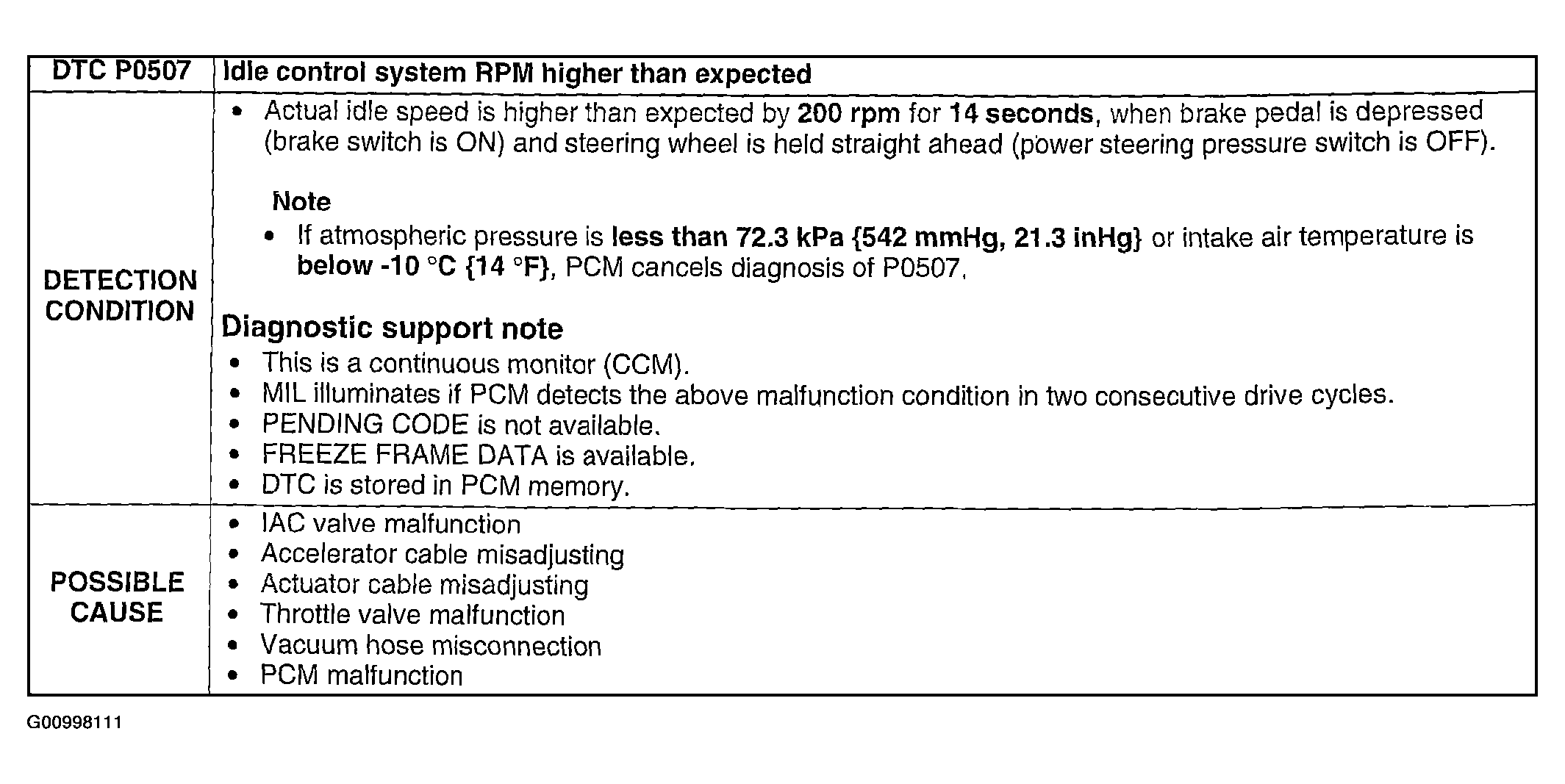

Fig 1: DTC P0507 Detection Condition & Possible Causes Chart
G00998111Courtesy of MAZDA MOTORS CORP.
