DTC P1633: Battery Overcharge
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P1633: Battery Overcharge: Notes

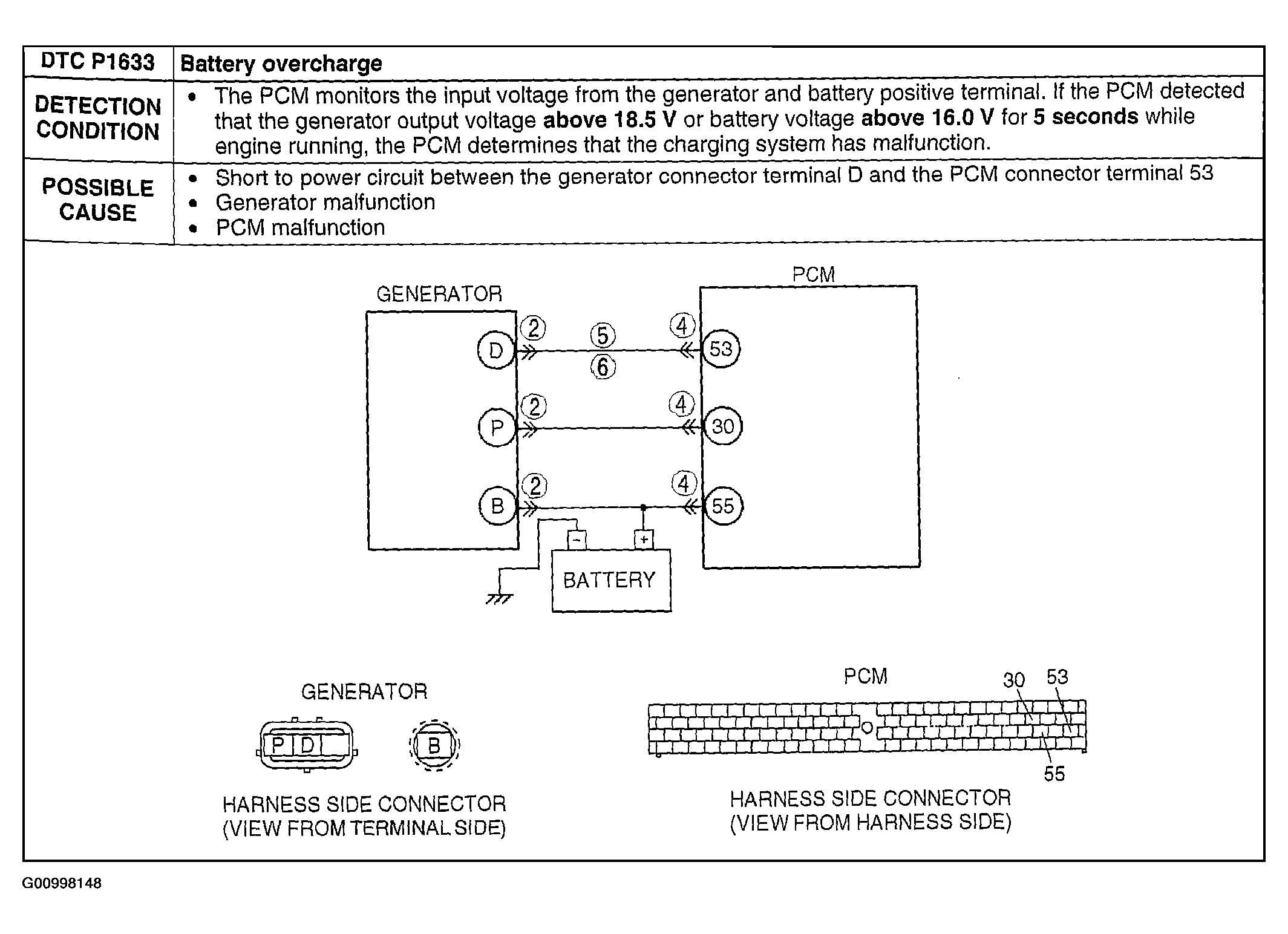

Fig 1: DTC P1633 Detection Condition & Possible Causes Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
