DTC Table

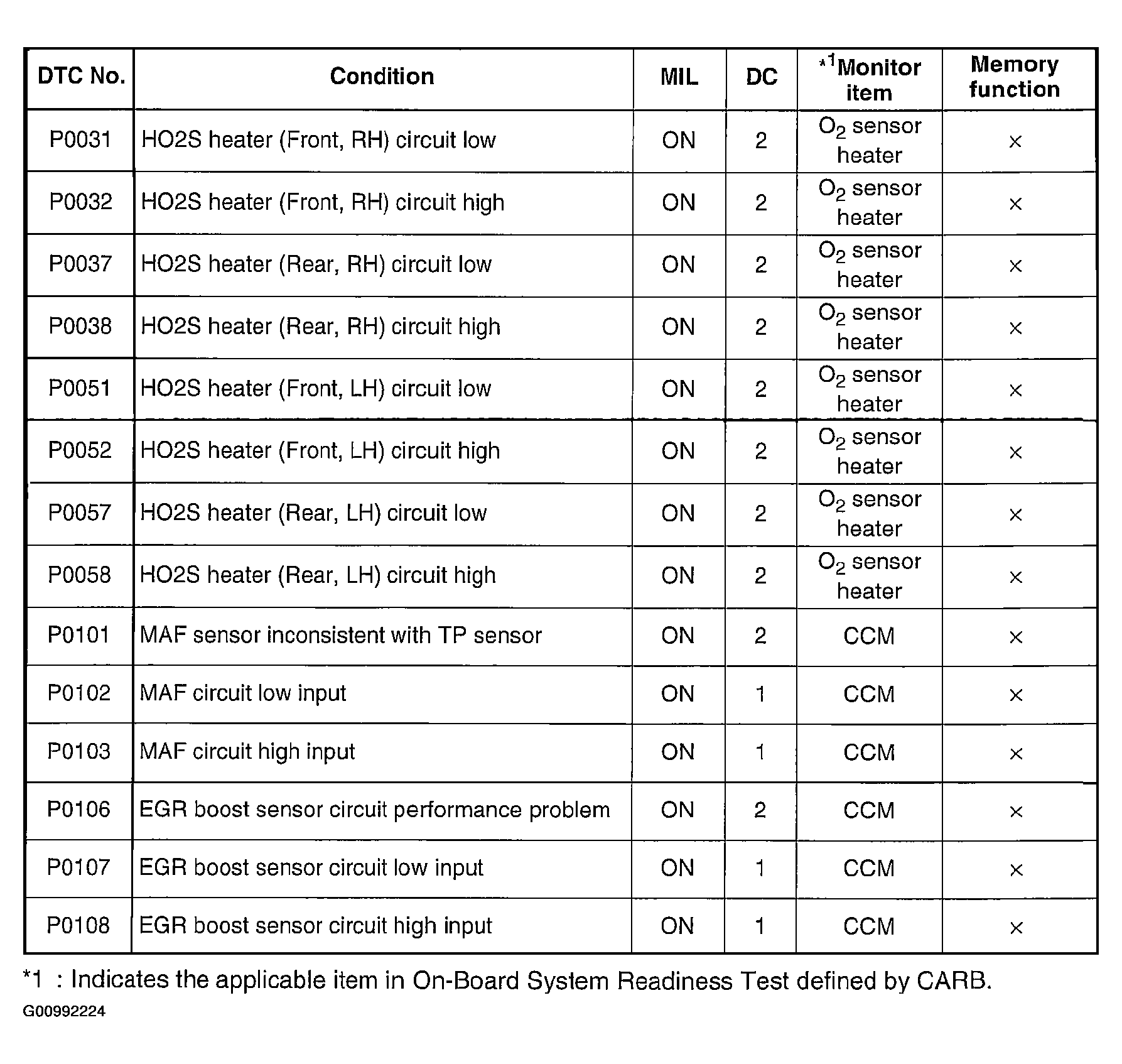

Fig 1: DTC Index Table (1 Of 5)

G00992224

Courtesy of MAZDA MOTORS CORP.

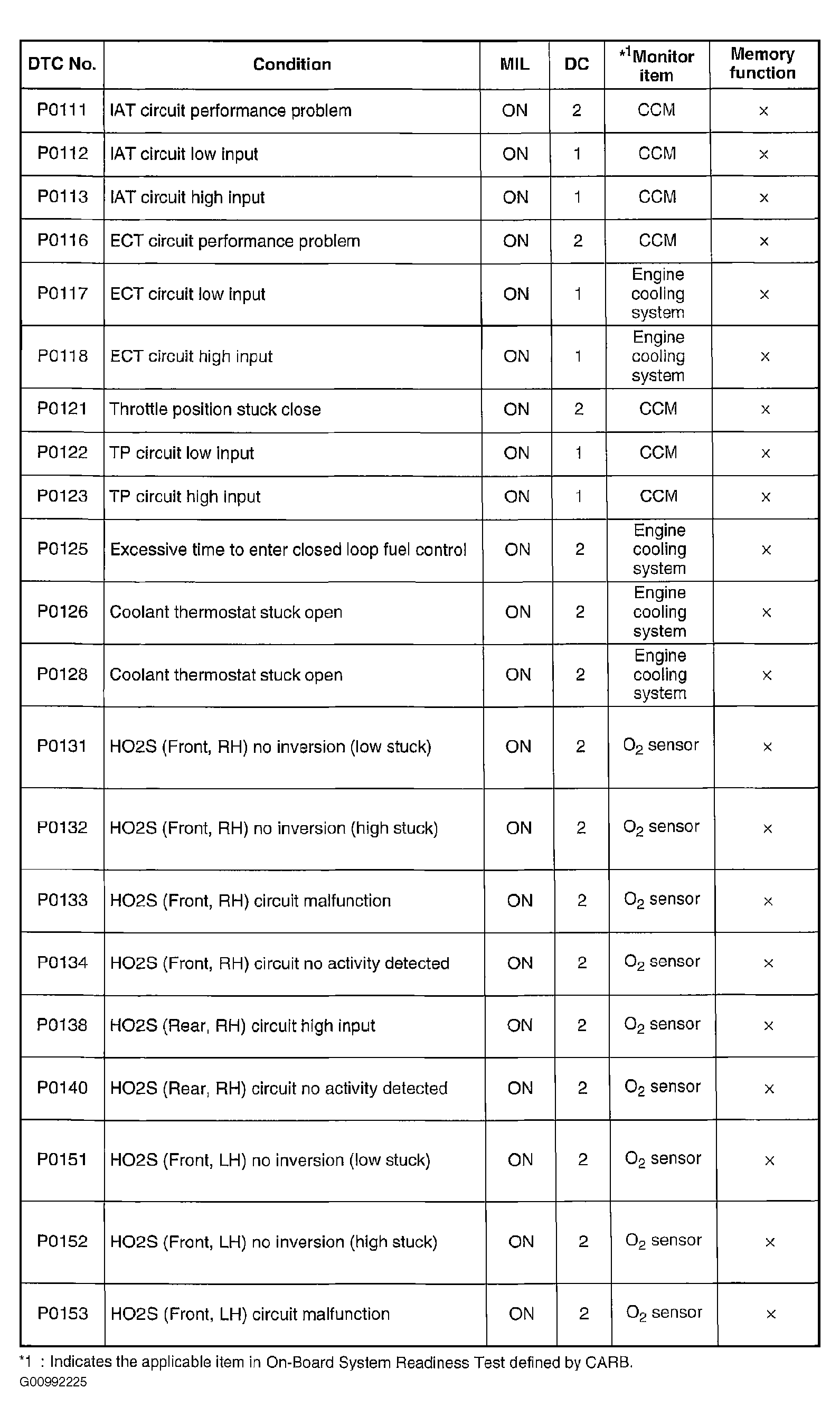

Fig 2: DTC Index Table (2 Of 5)

G00992225

Courtesy of MAZDA MOTORS CORP.

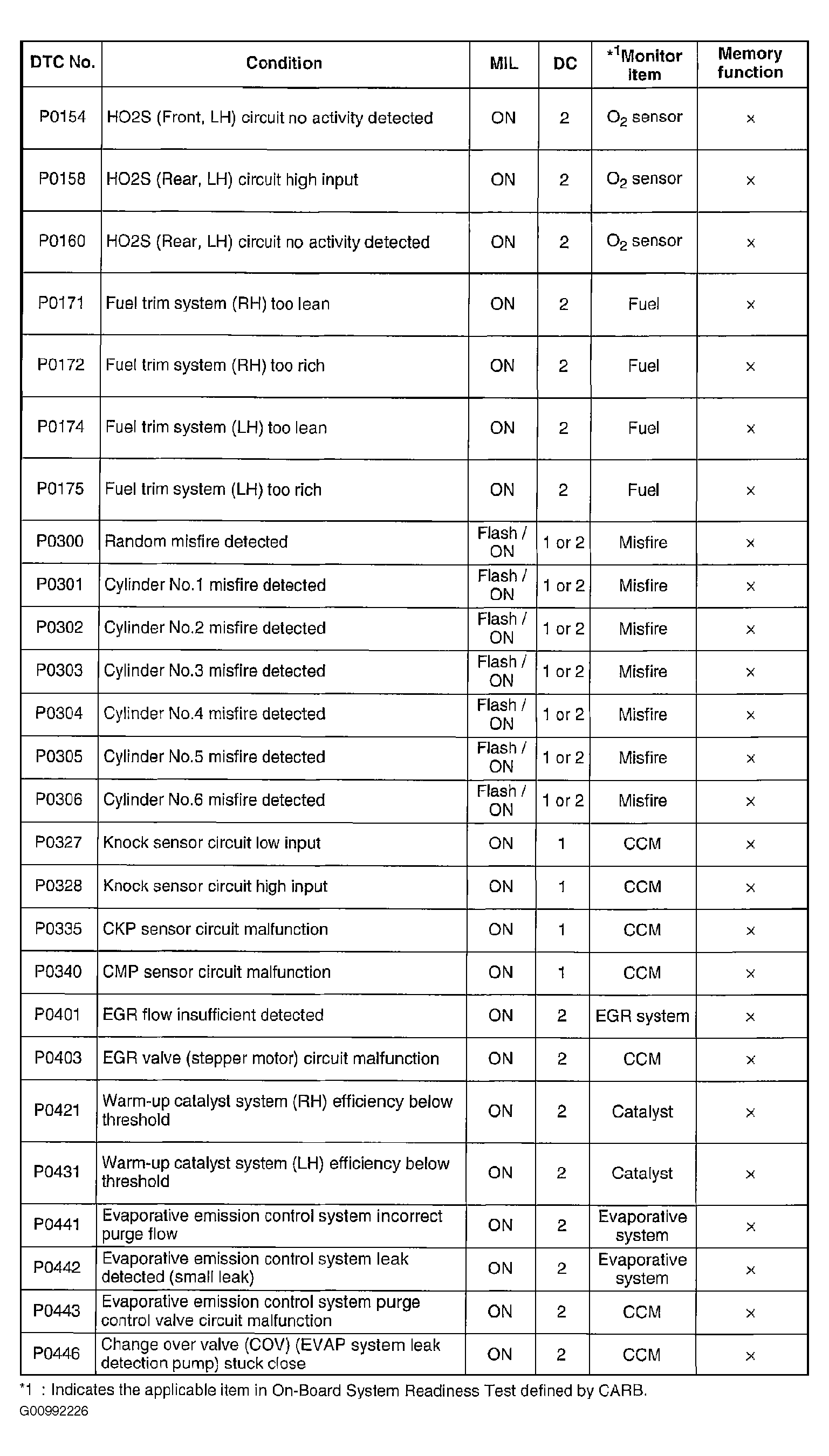

Fig 3: DTC Index Table (3 Of 5)

G00992226

Courtesy of MAZDA MOTORS CORP.

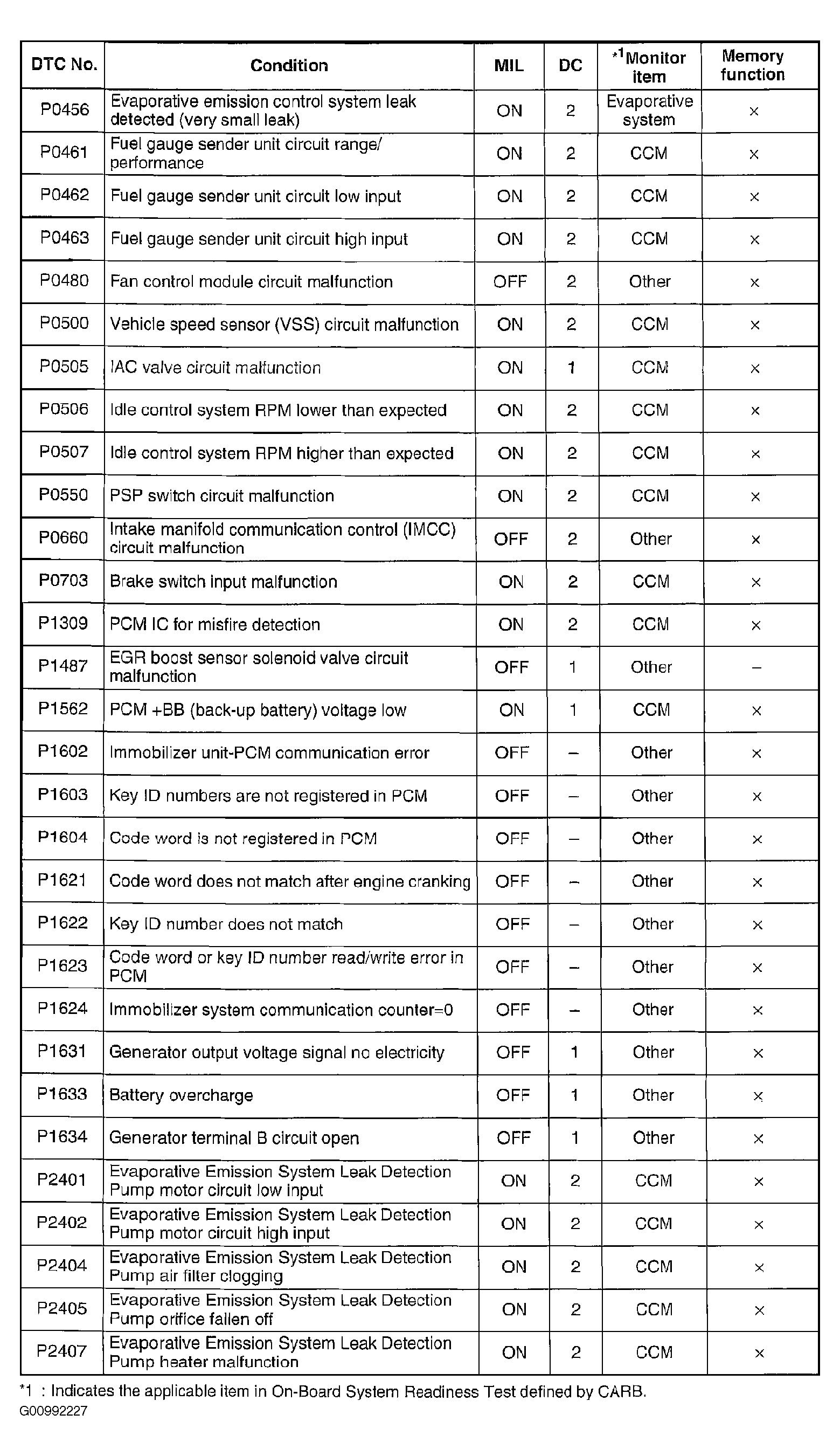

Fig 4: DTC Index Table (4 Of 5)

G00992227

Courtesy of MAZDA MOTORS CORP.

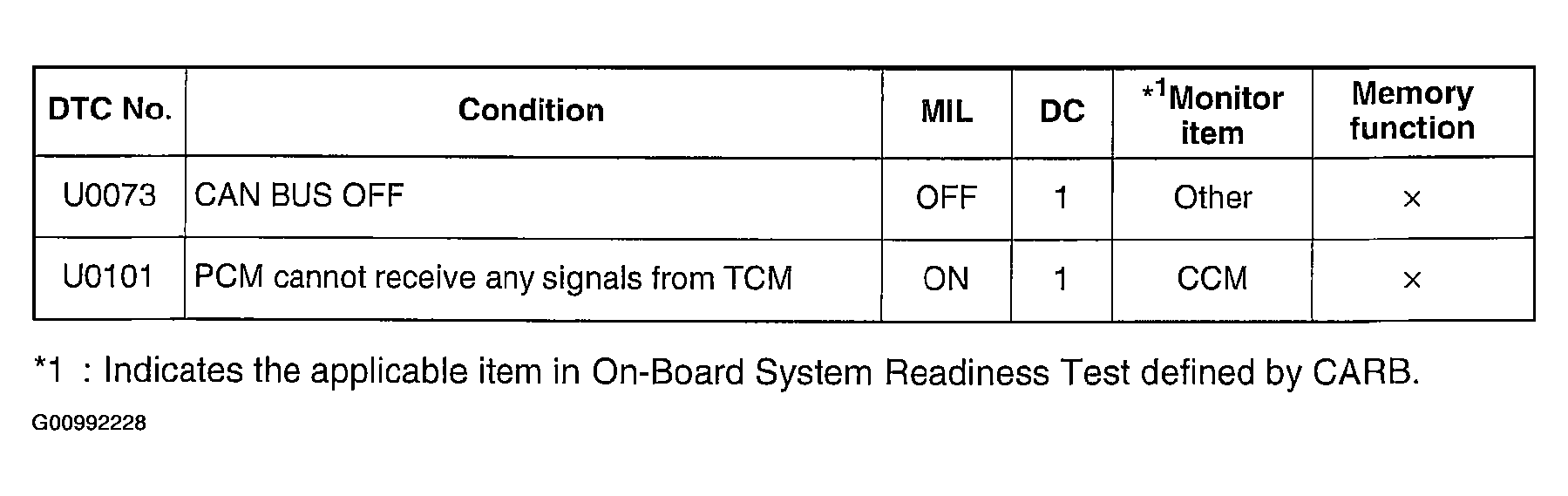

Fig 5: DTC Index Table (5 Of 5)

G00992228

Courtesy of MAZDA MOTORS CORP.
