Monitoring System And Control System Device Relationship Chart

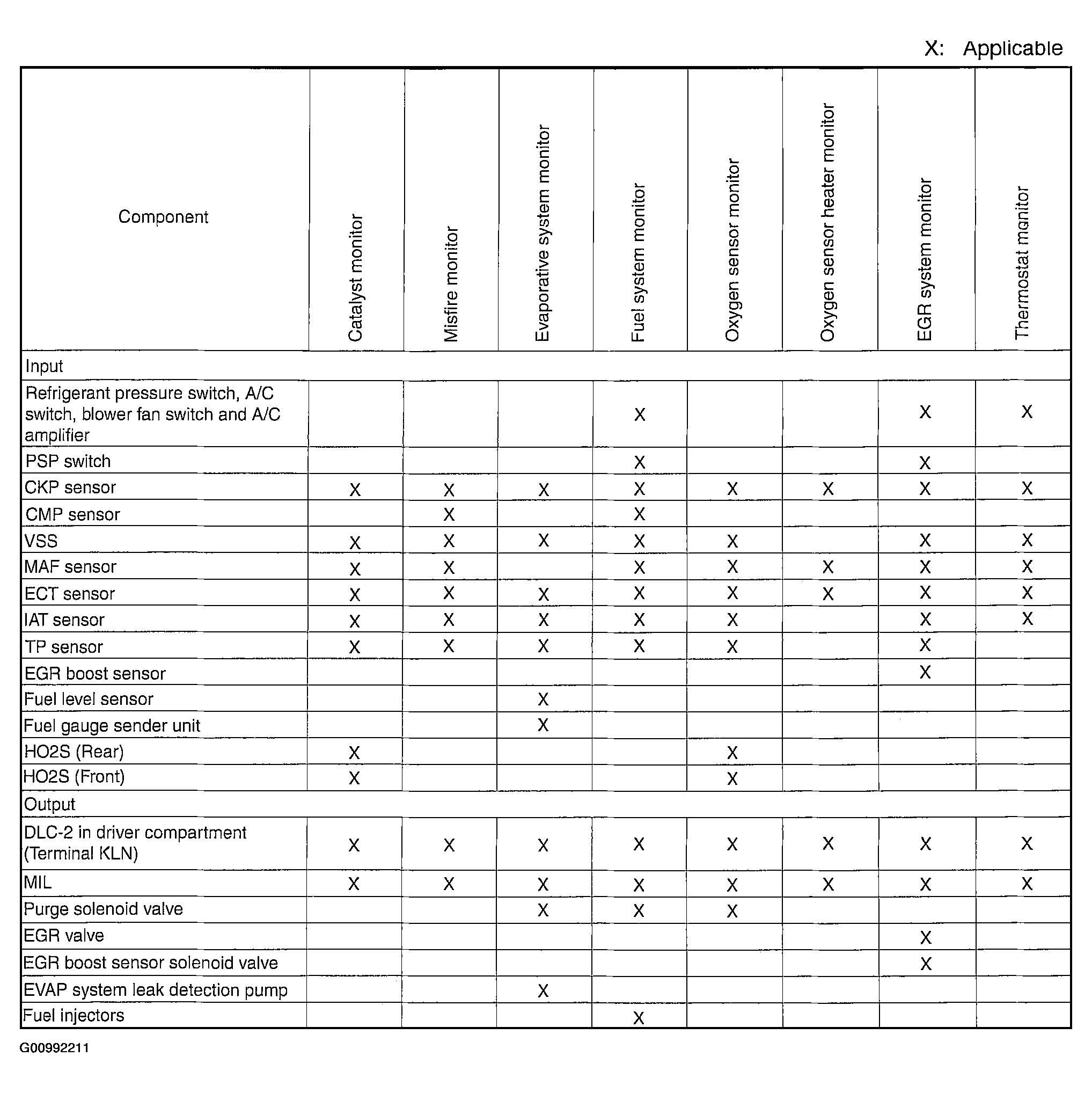

Fig 1: Monitoring System And Control System Device Relationship Chart
G00992211Courtesy of MAZDA MOTORS CORP.
