Control System Device And Control Relationship Chart

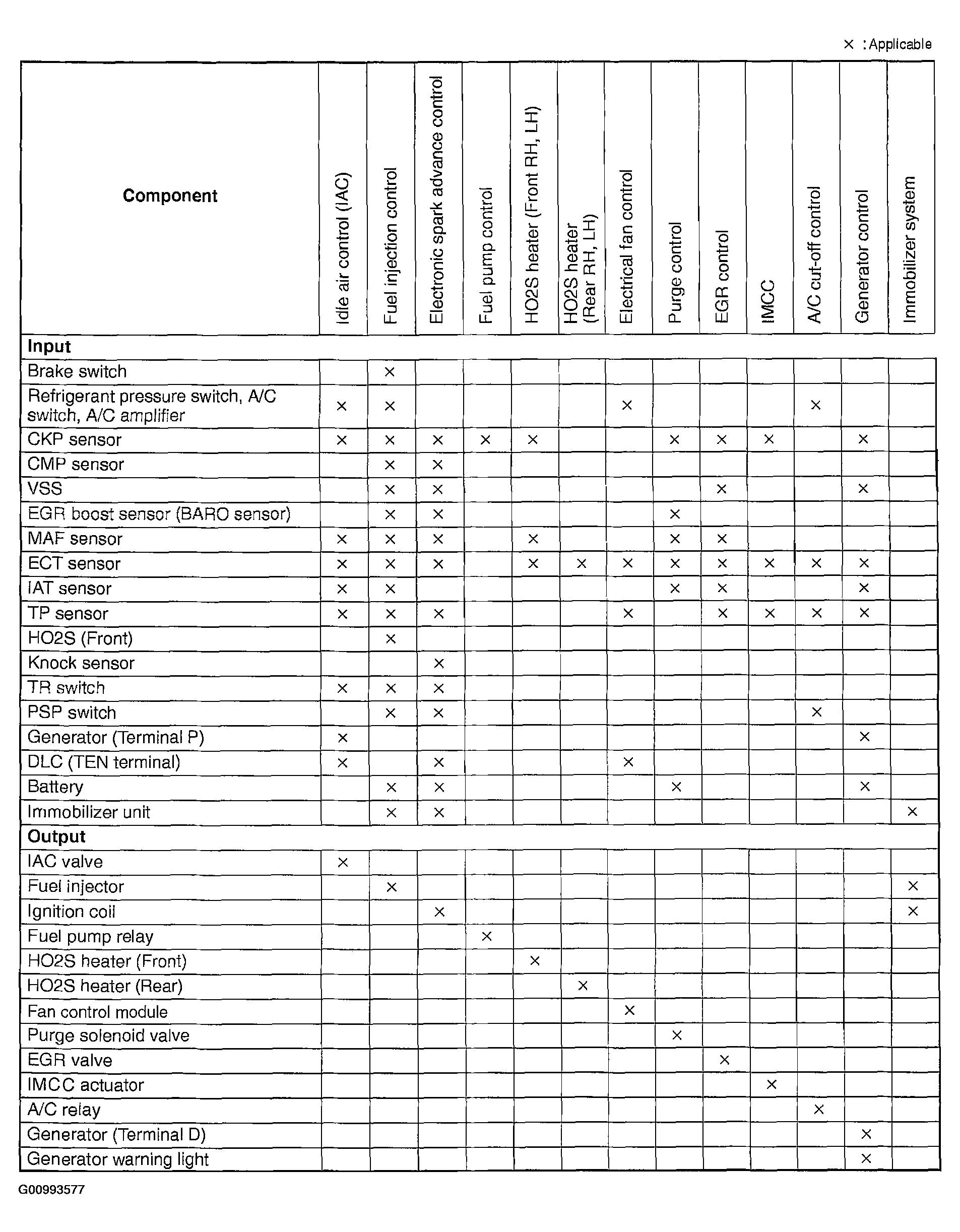

Fig 1: Control System Device And Control Relationship Chart
G00993577Courtesy of MAZDA MOTORS CORP.
