Small leak
If LDP_SLDV PID value is lower than the table below, a small leak has been detected.

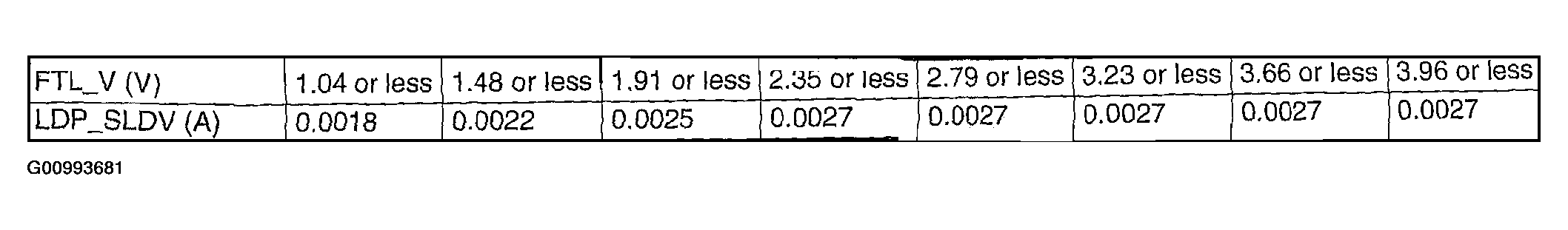

Fig 1: Evaporative System Test Threshold Value - Small Leak
Courtesy of MAZDA MOTORS CORP.
