Diagnostic Procedure

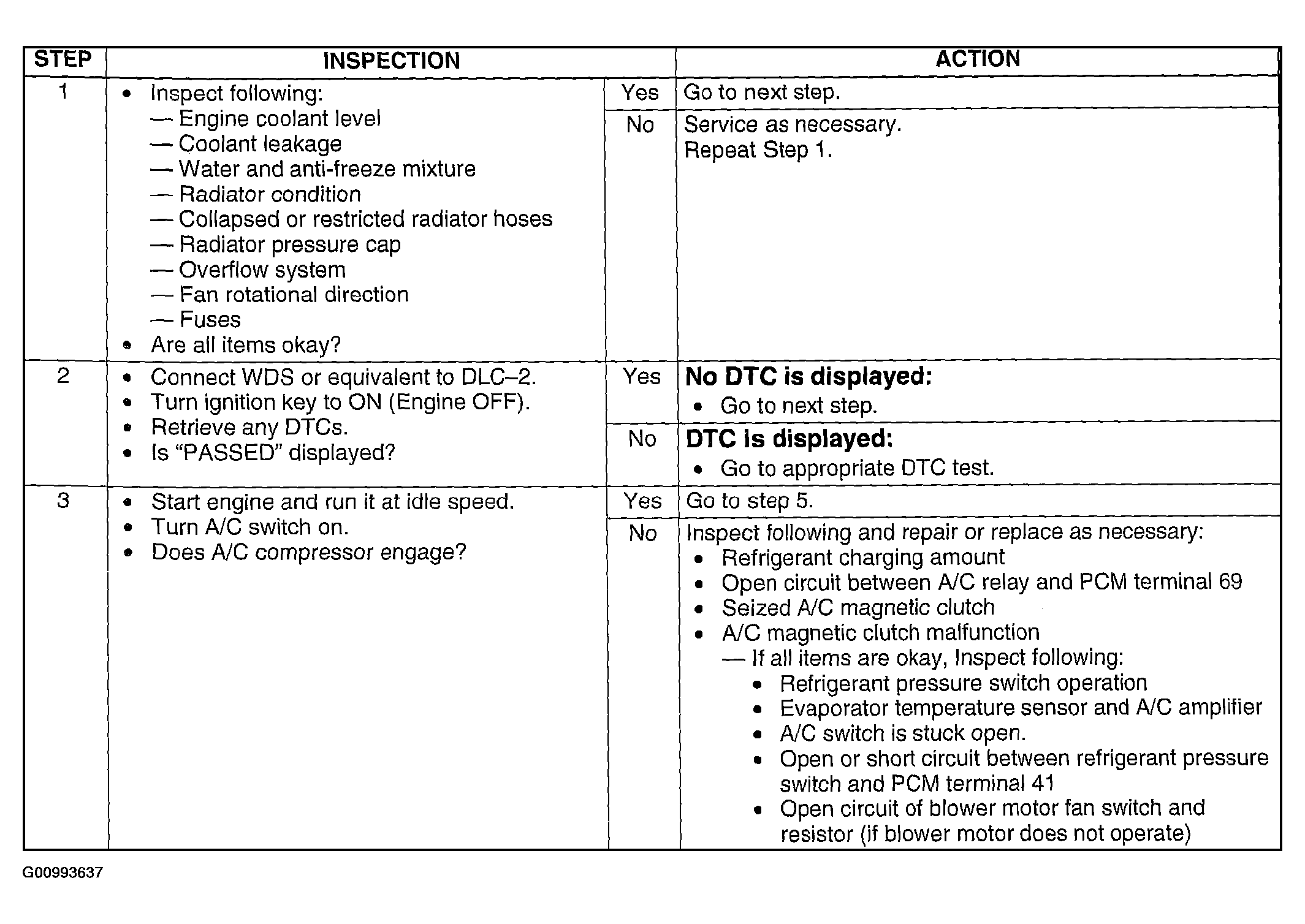

Fig 1: Symptom No.17 Diagnostic Procedure Chart (Step 1-3)
G00993637Courtesy of MAZDA MOTORS CORP.

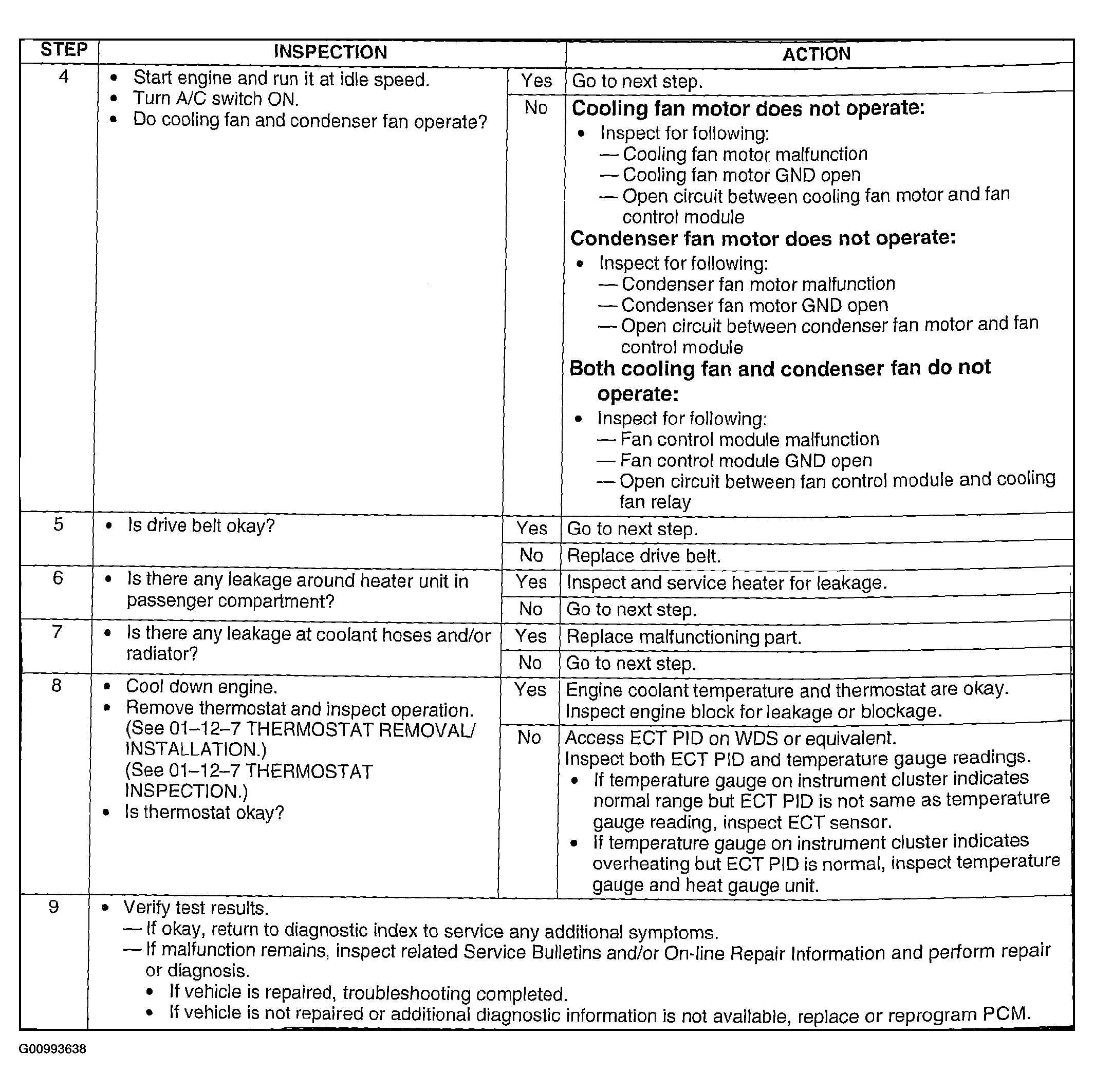

Fig 2: Symptom No.17 Diagnostic Procedure Chart (Step 4-9)
G00993638Courtesy of MAZDA MOTORS CORP.
