No. 17 Cooling System Concerns-Overheating: Notes

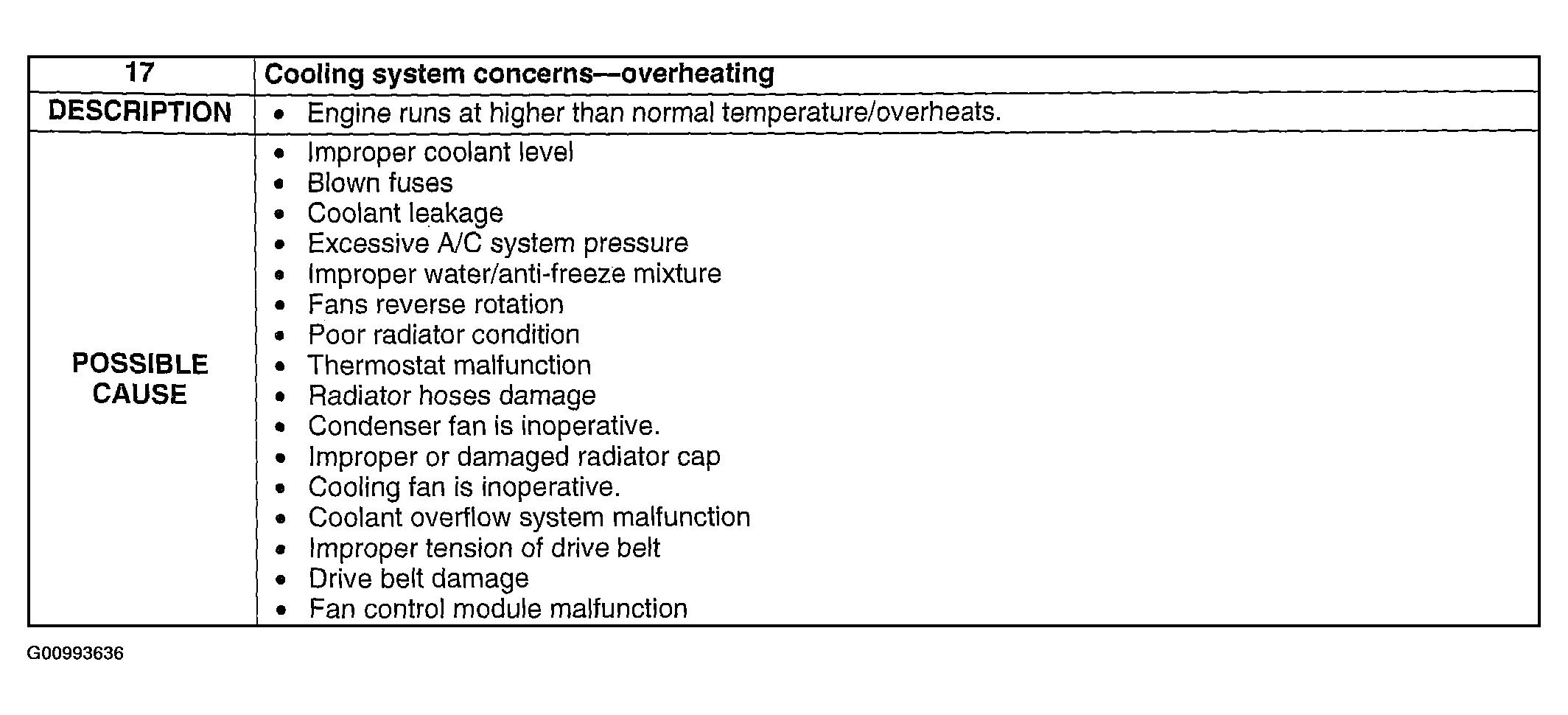

Fig 1: Symptom No.17 Description & Possible Causes Chart
G00993636Courtesy of MAZDA MOTORS CORP.
