Symptom Troubleshooting [Engine Control System AJ]
>>
No. 18 Cooling System Concerns-Runs Cold
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

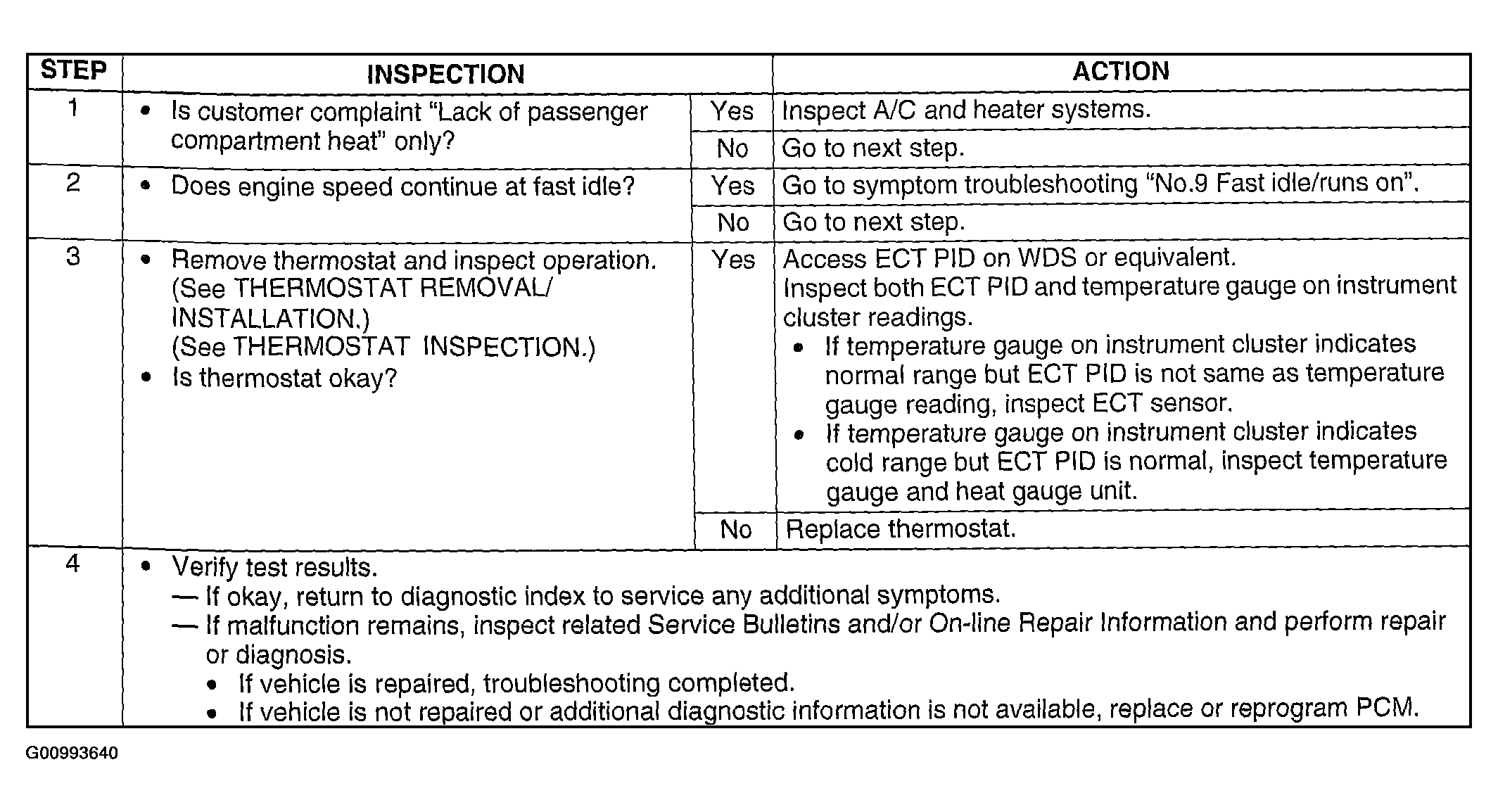

Fig 1: Symptom No.18 Diagnostic Procedure Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
