No. 20 Fuel Odor (In Engine Compartment): Notes

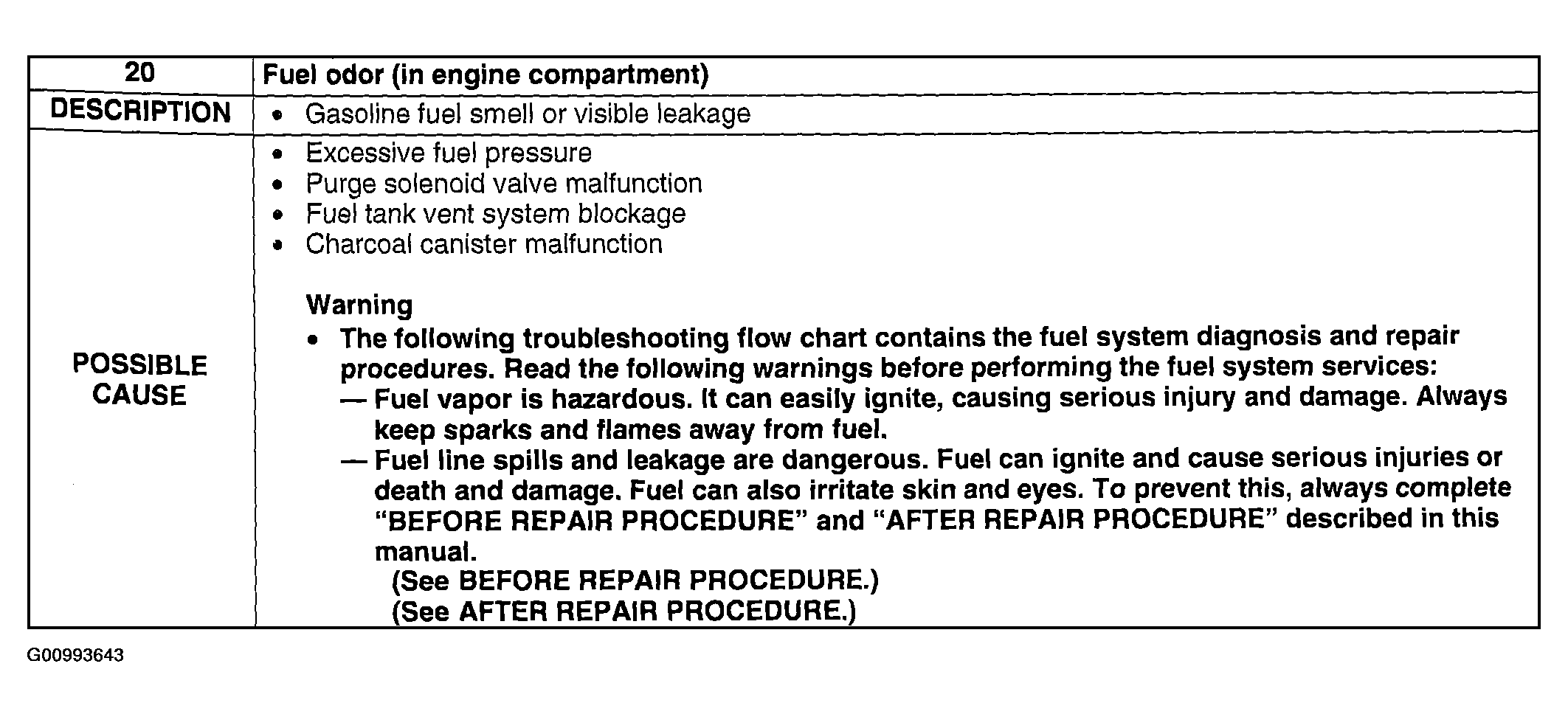

Fig 1: Symptom No.20 Description & Possible Causes Chart
G00993643Courtesy of MAZDA MOTORS CORP.
