Diagnostic Procedure

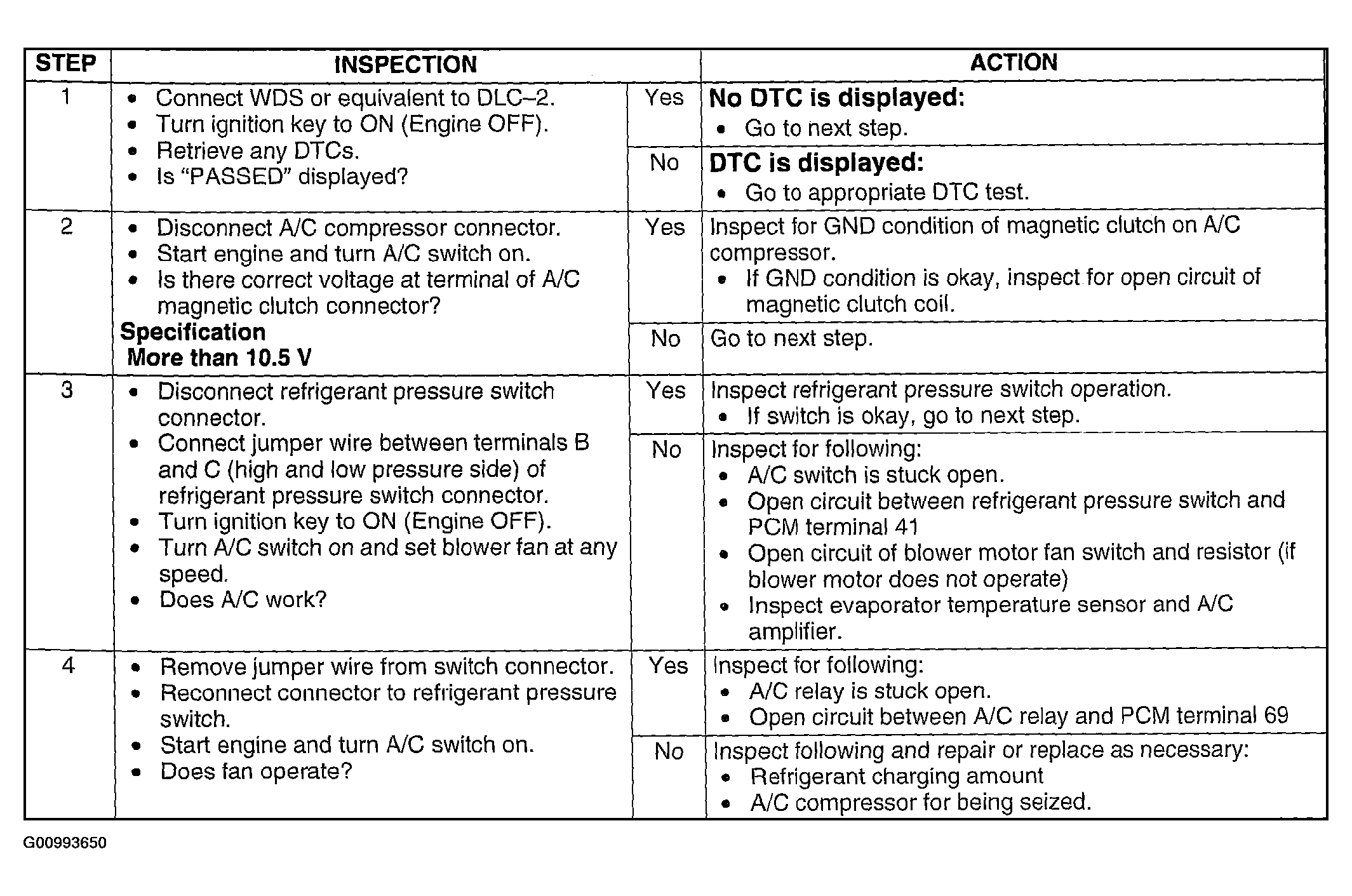

Fig 1: Symptom No.23 Diagnostic Procedure Chart (Step 1-4)
G00993650Courtesy of MAZDA MOTORS CORP.

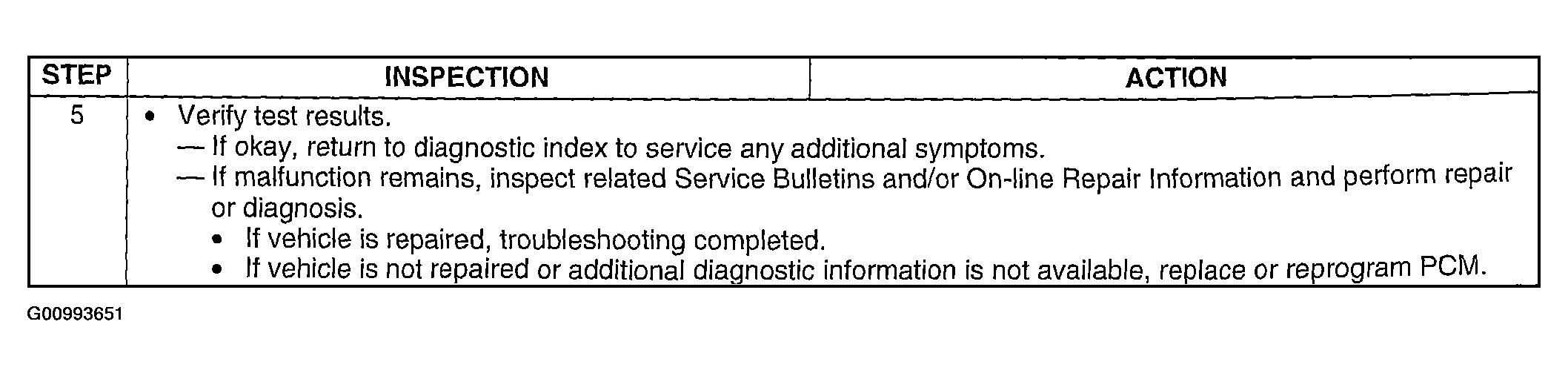

Fig 2: Symptom No.23 Diagnostic Procedure Chart (Step 5)
G00993651Courtesy of MAZDA MOTORS CORP.
