Symptom Troubleshooting [Engine Control System AJ]
>>
No. 24 A/C Always On/A/C Compressor Runs Continuously
>>
Diagnostic Procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedure

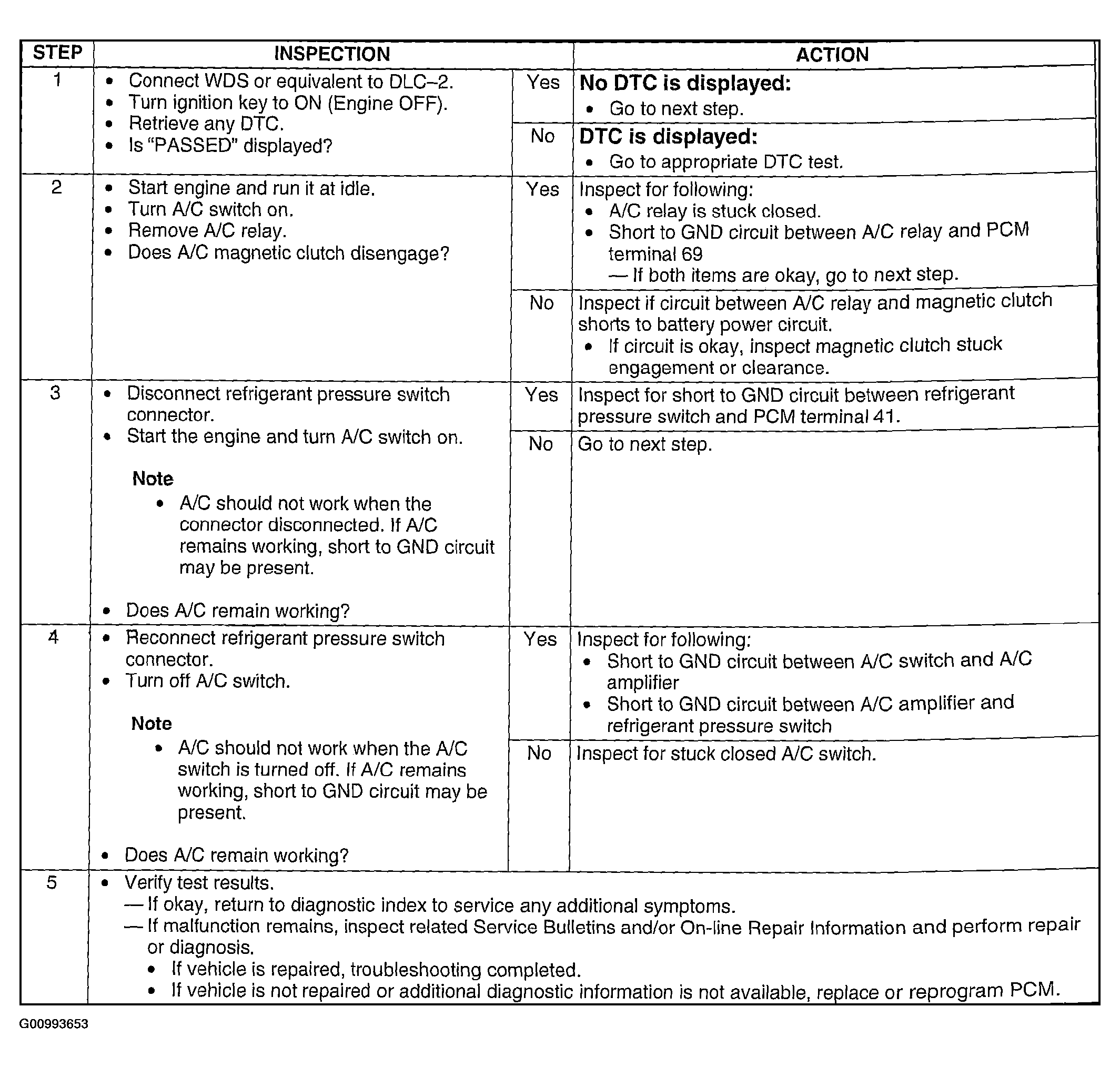

Fig 1: Symptom No.24 Diagnostic Procedure Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
