Diagnostic Procedure

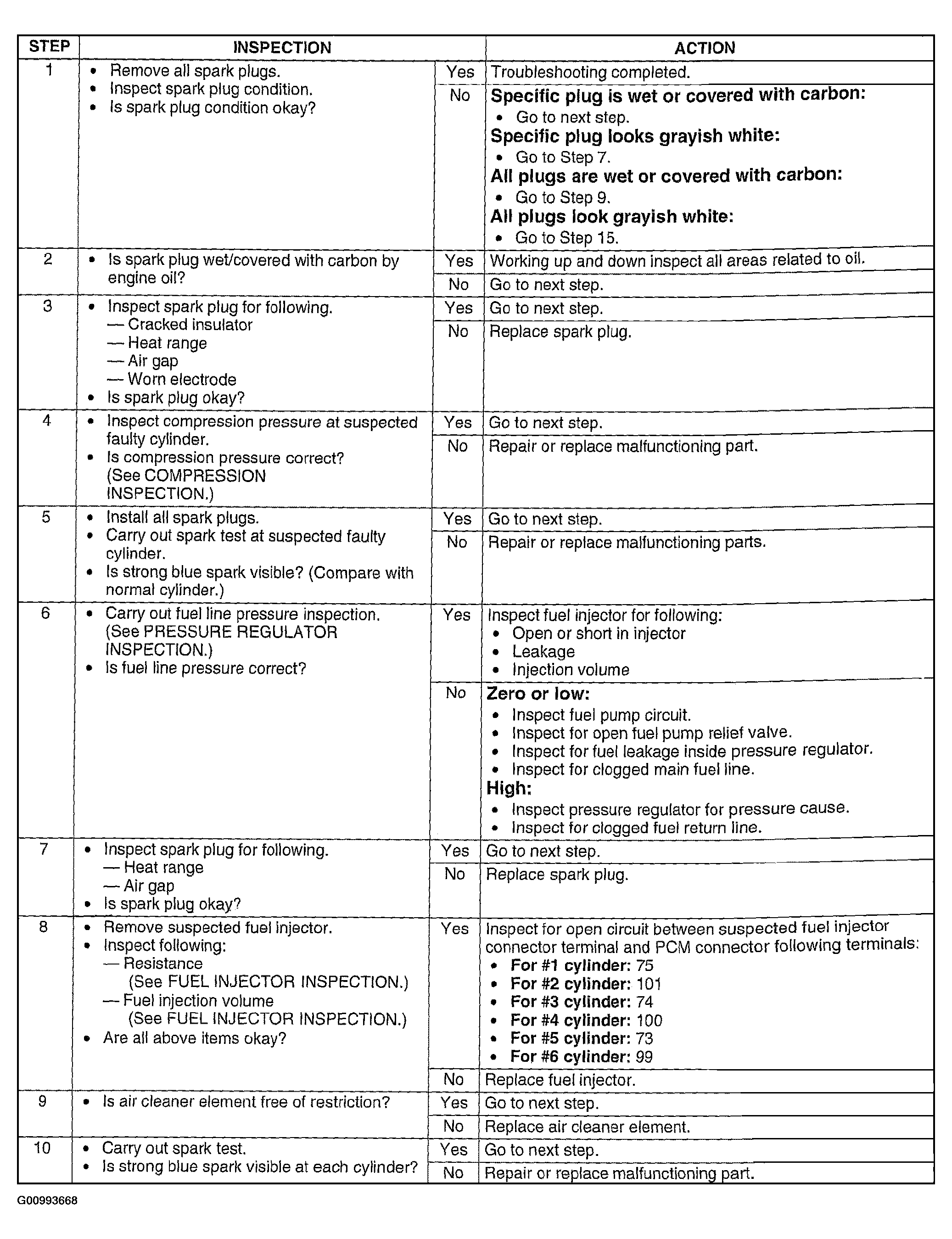

Fig 1: Symptom No.30 Diagnostic Procedure Chart (Step 1-10)
G00993668Courtesy of MAZDA MOTORS CORP.

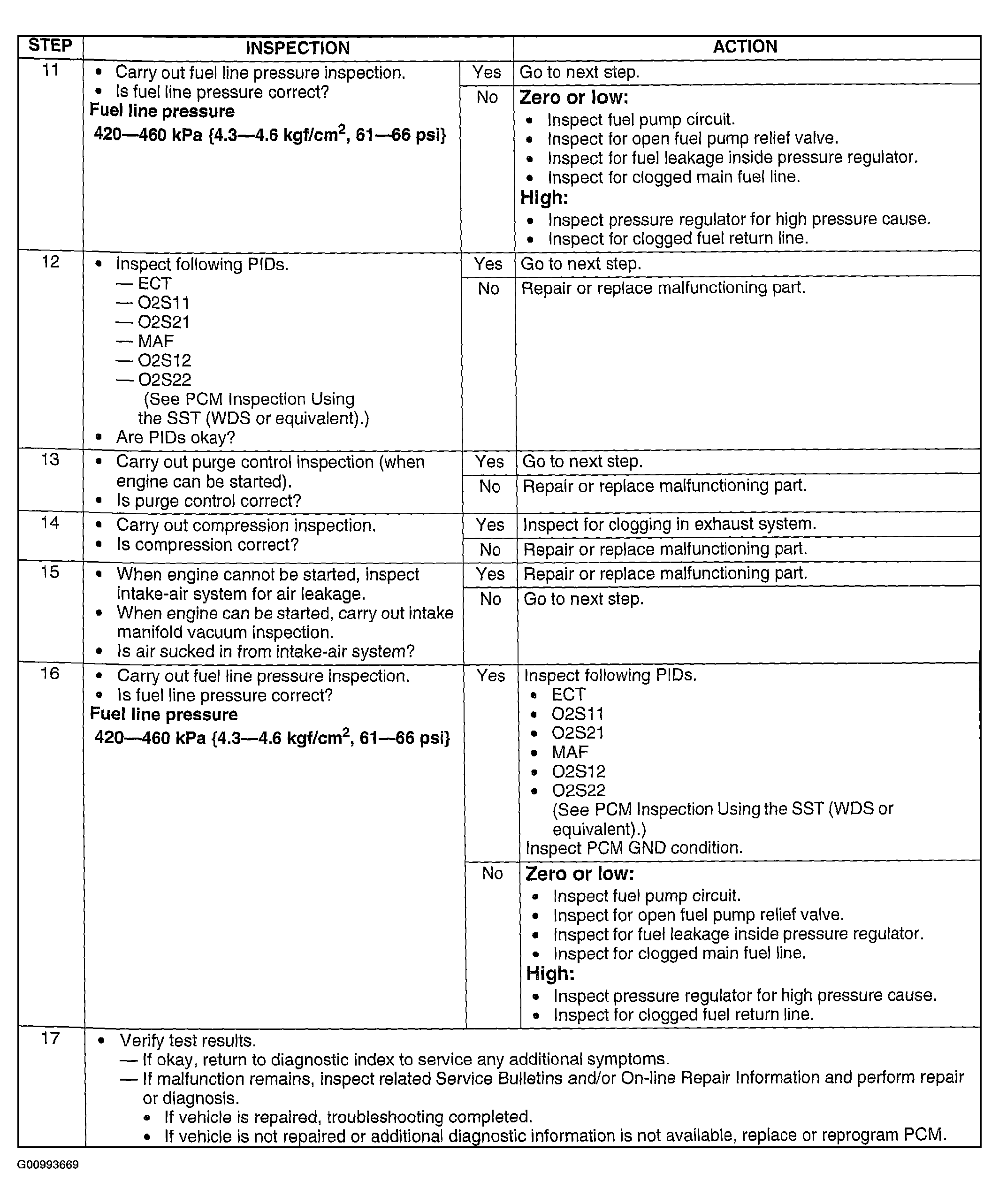

Fig 2: Symptom No.30 Diagnostic Procedure Chart (Step 11-17)
G00993669Courtesy of MAZDA MOTORS CORP.
