Symptom Quick Diagnosis Chart

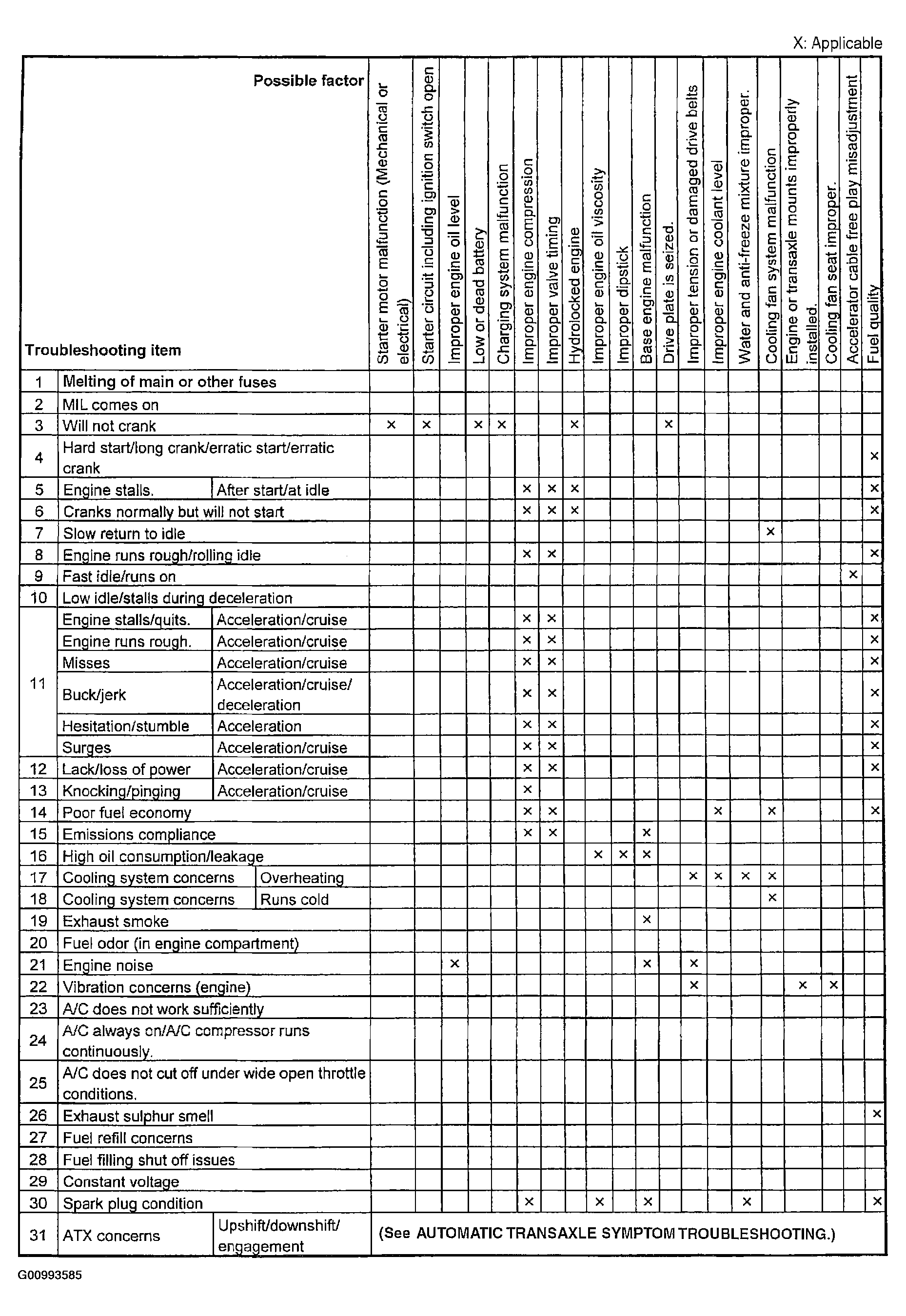

Fig 1: Quick Diagnosis Chart (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

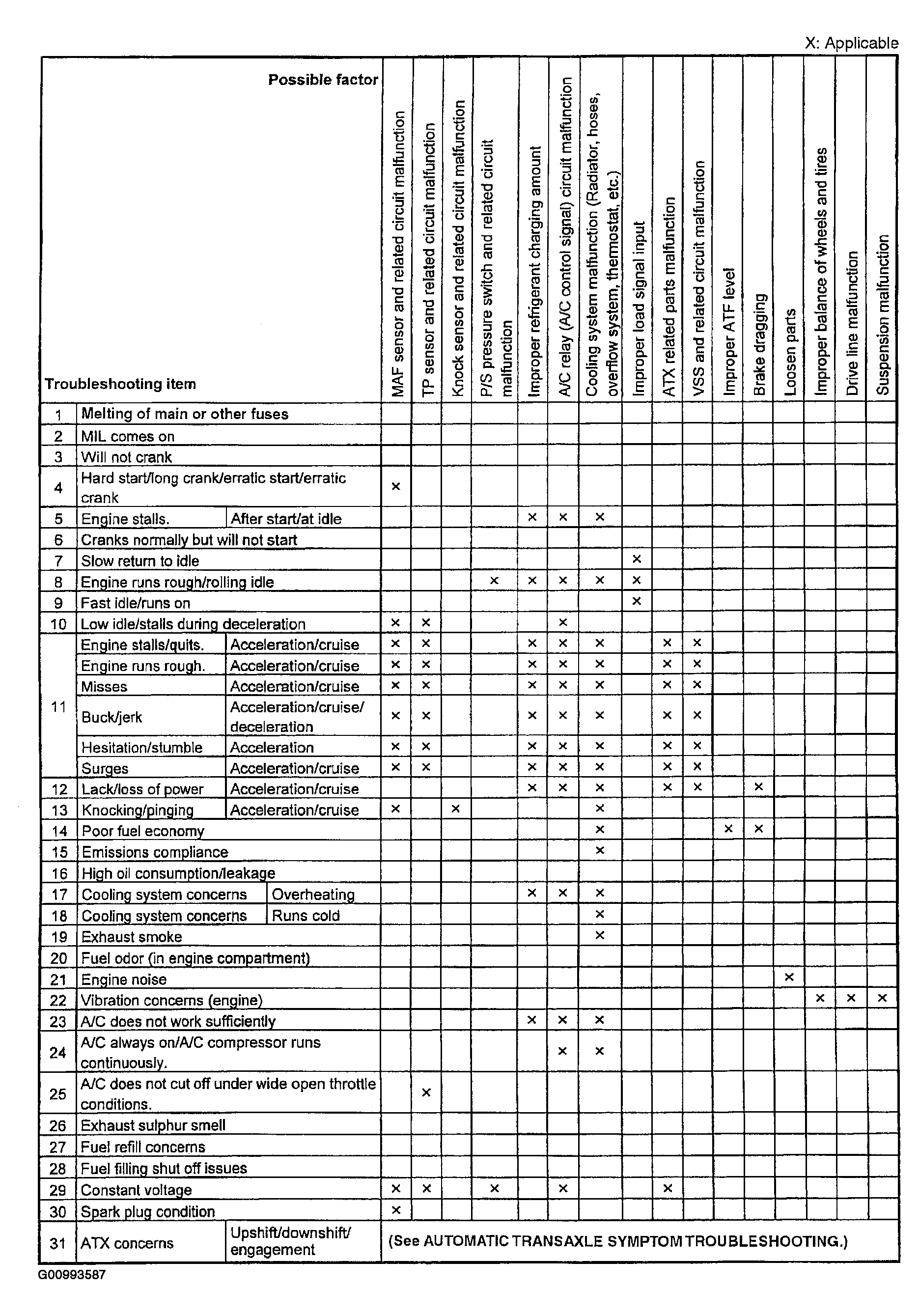

Fig 2: Quick Diagnosis Chart (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

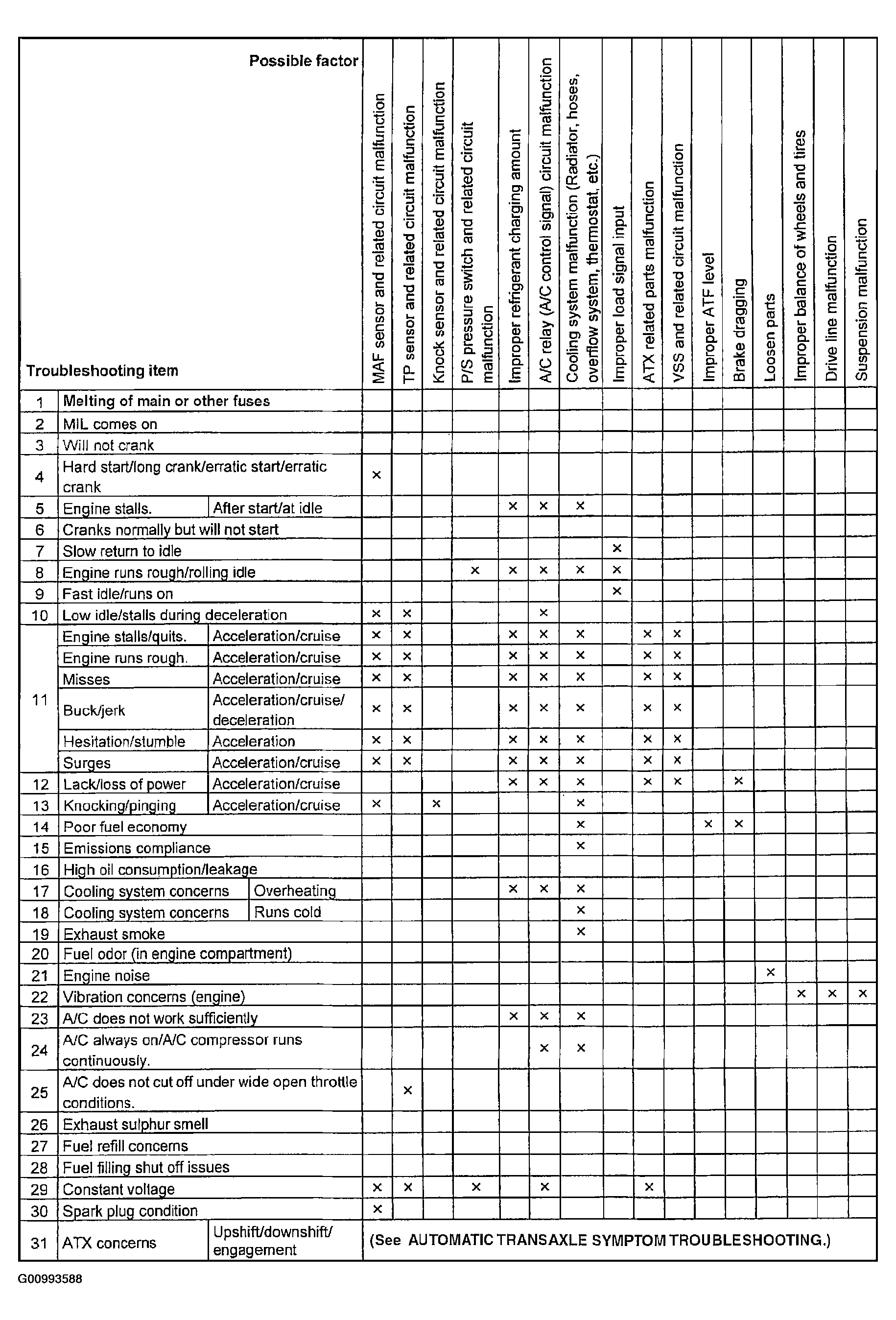

Fig 3: Quick Diagnosis Chart (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

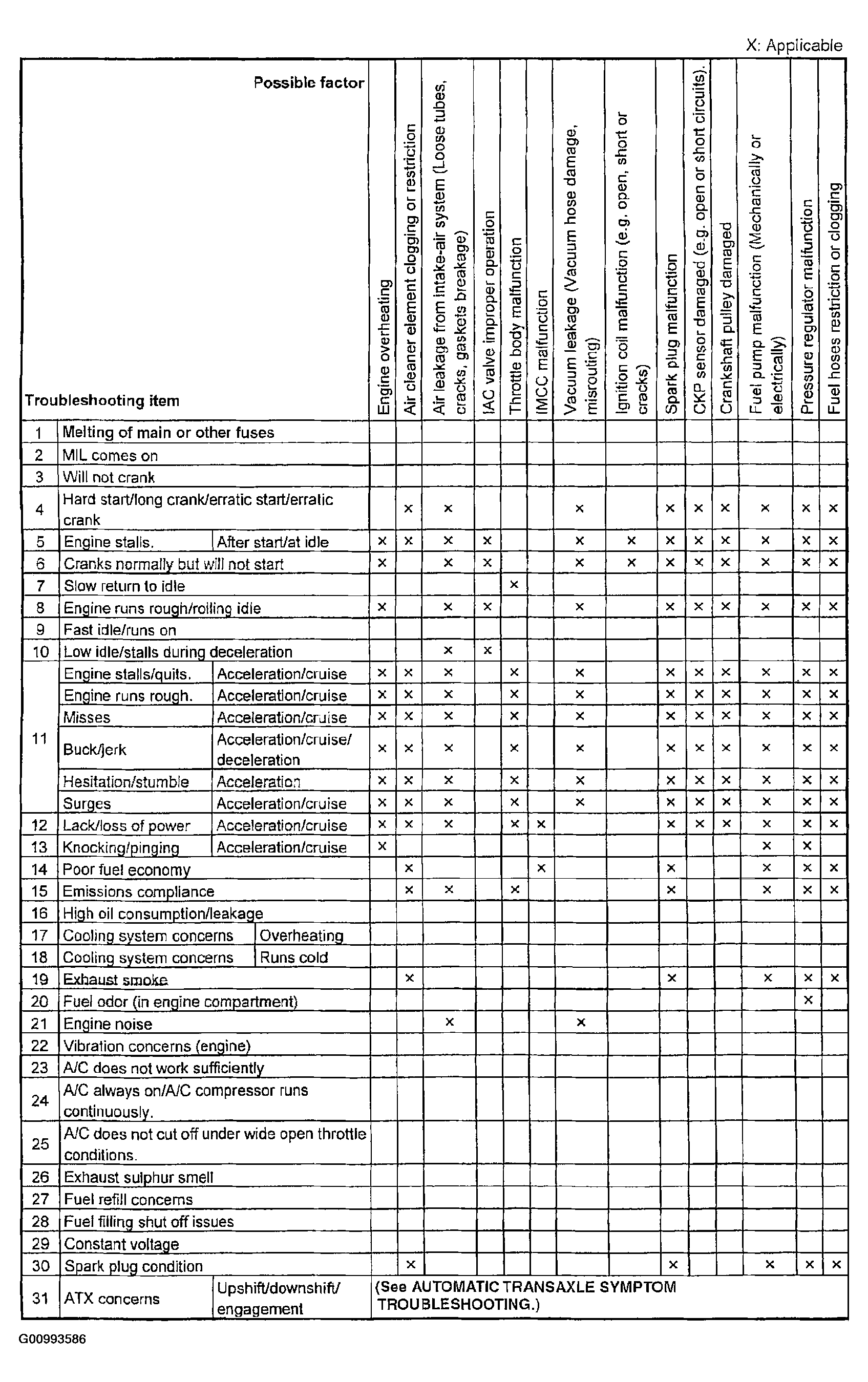

Fig 4: Quick Diagnosis Chart (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
