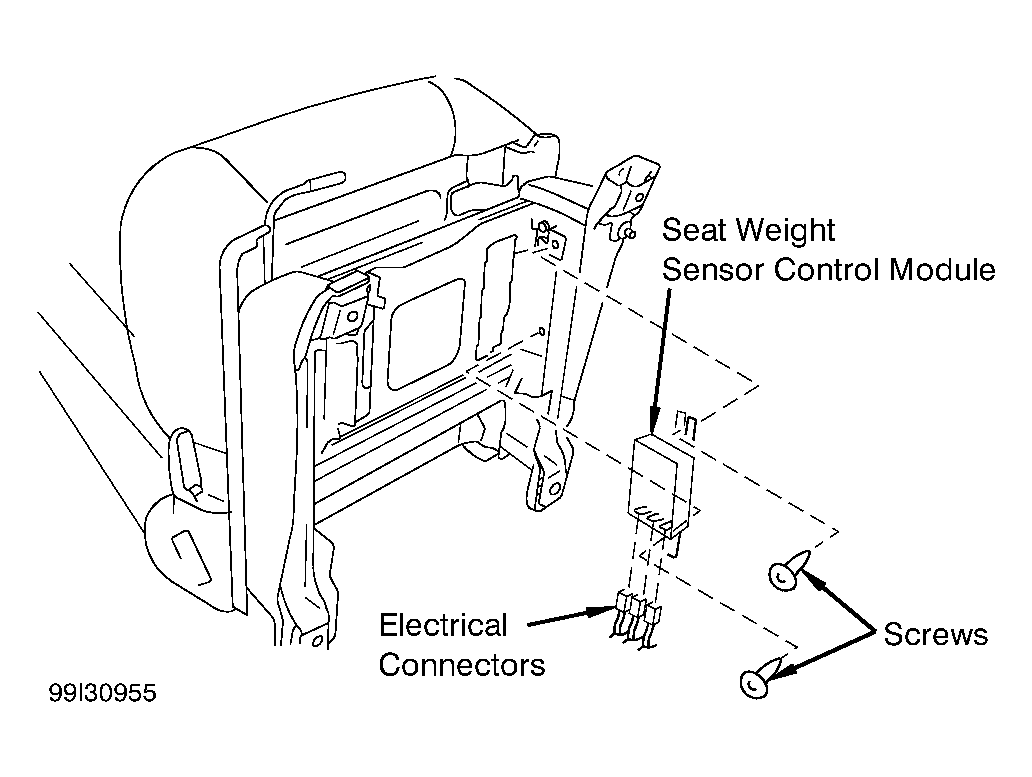

Seat Weight Sensor Control Module Inspection & Calibration
If any of the following items have occurred, perform the seat weight sensor calibration using scan tool:
- NEW seat weight sensor installed.
- NEW seat weight sensor control module installed.
- NEW passenger front seat parts installed.
- Disassembly of passenger front seat.
- Removal of passenger front seat.
- Loosening and retightening of passenger front seat mounting bolts.
- Vehicle is involved in a collision.
NOTE:
When "Lightly pat the passenger seat cushion" is displayed on scan tool screen, lightly pat horizontally about 5 times on headrest or upper side of the seat back trim of the passenger front seat.
Have 44 lbs. (20 kg) and 88 lbs. (40 kg) weights ready to use. Connect scan tool to Data Link Connector (DLC). Select POWERTRAIN, RESET KAM and perform calibration following procedures on scan tool screen.
