Front Buckle Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the side cover. (See FRONT SEAT DISASSEMBLY/ASSEMBLY .)
  3. Remove in the order indicated in the table.
    Front Buckle Removal Chart

    1 Connector
    2 Front buckle

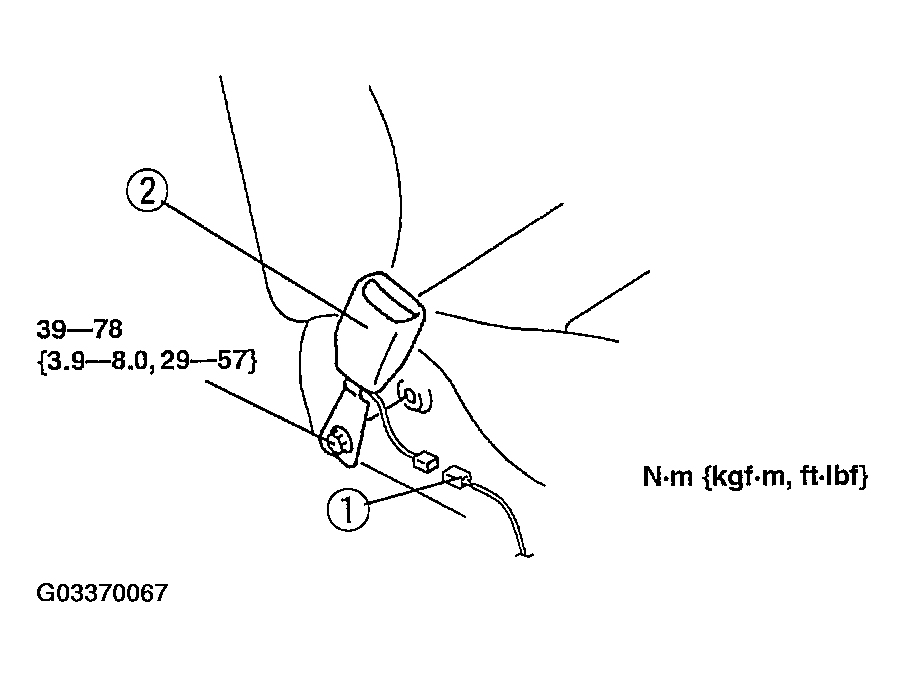

    Fig 1: Front Buckle Removal Sequence
    G03370067Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
